Operation System

CPU

GPU

NPU

RAM

ROM

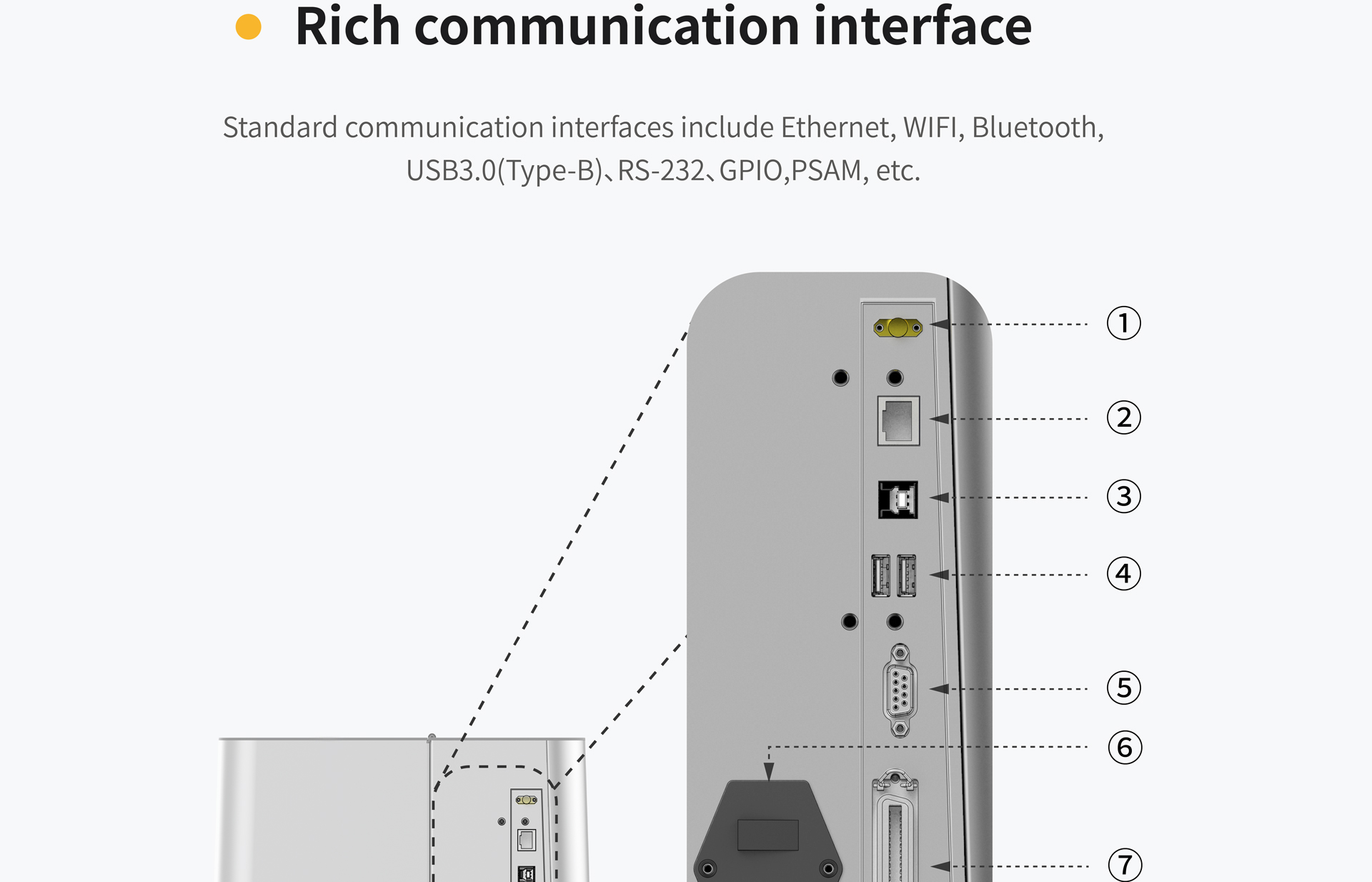

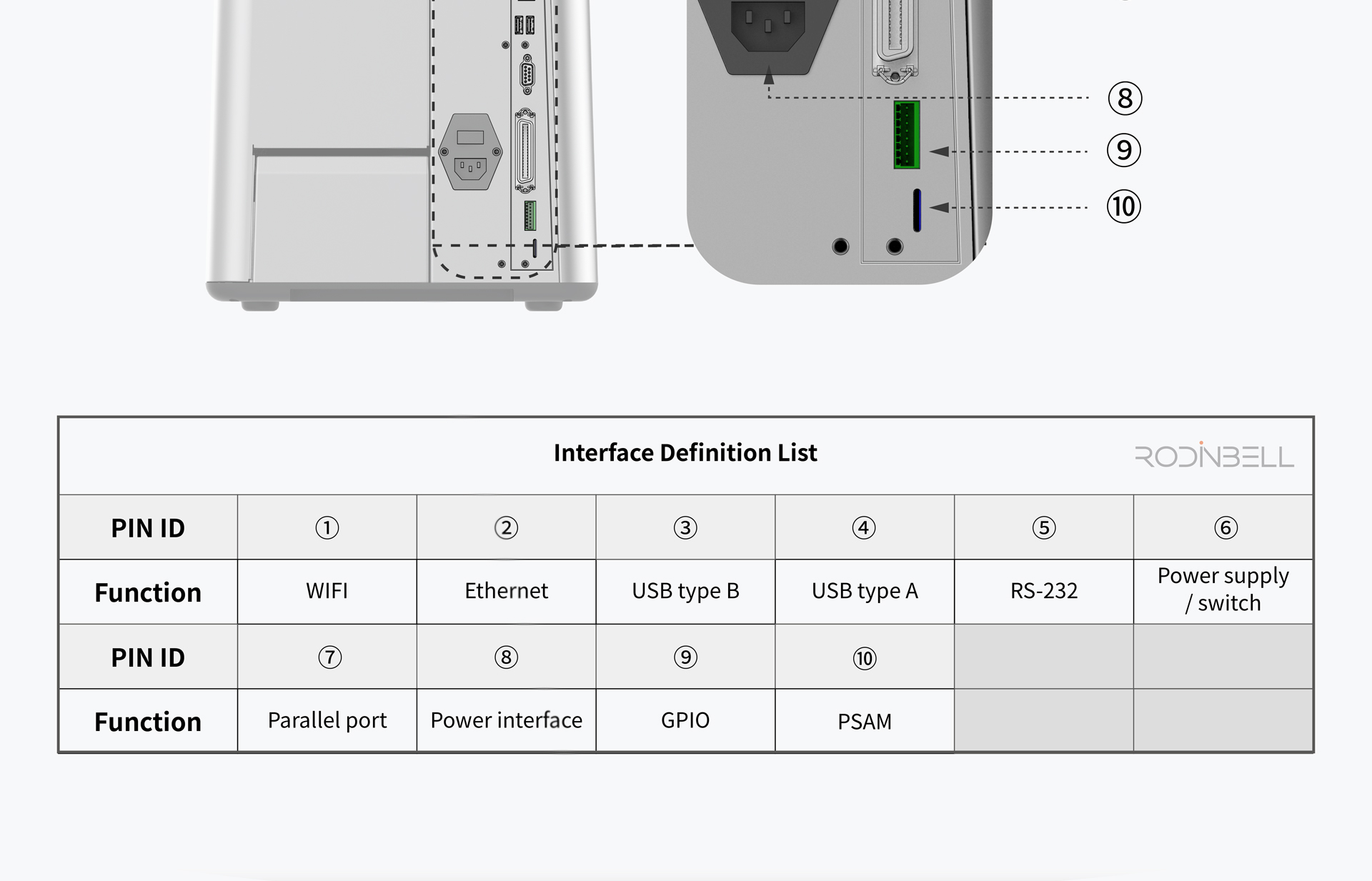

USB

Serial Interface

Ethernet

Bluetooth

WIFI

PSAM

GPIO

Physical Button

FEED/PAUSE/CANCEL

Function Keys *3

Body Design

LCD

Gyroscope

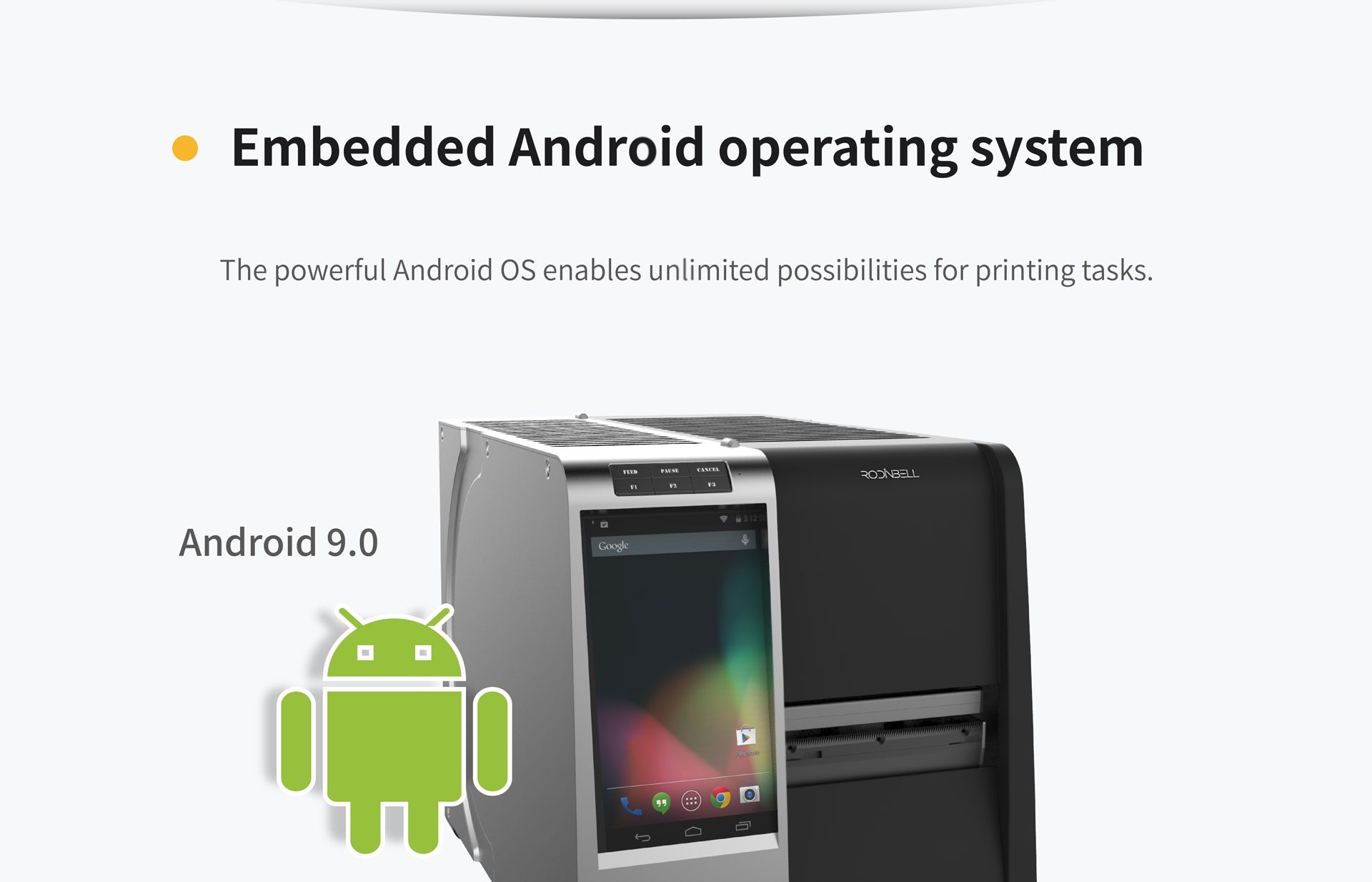

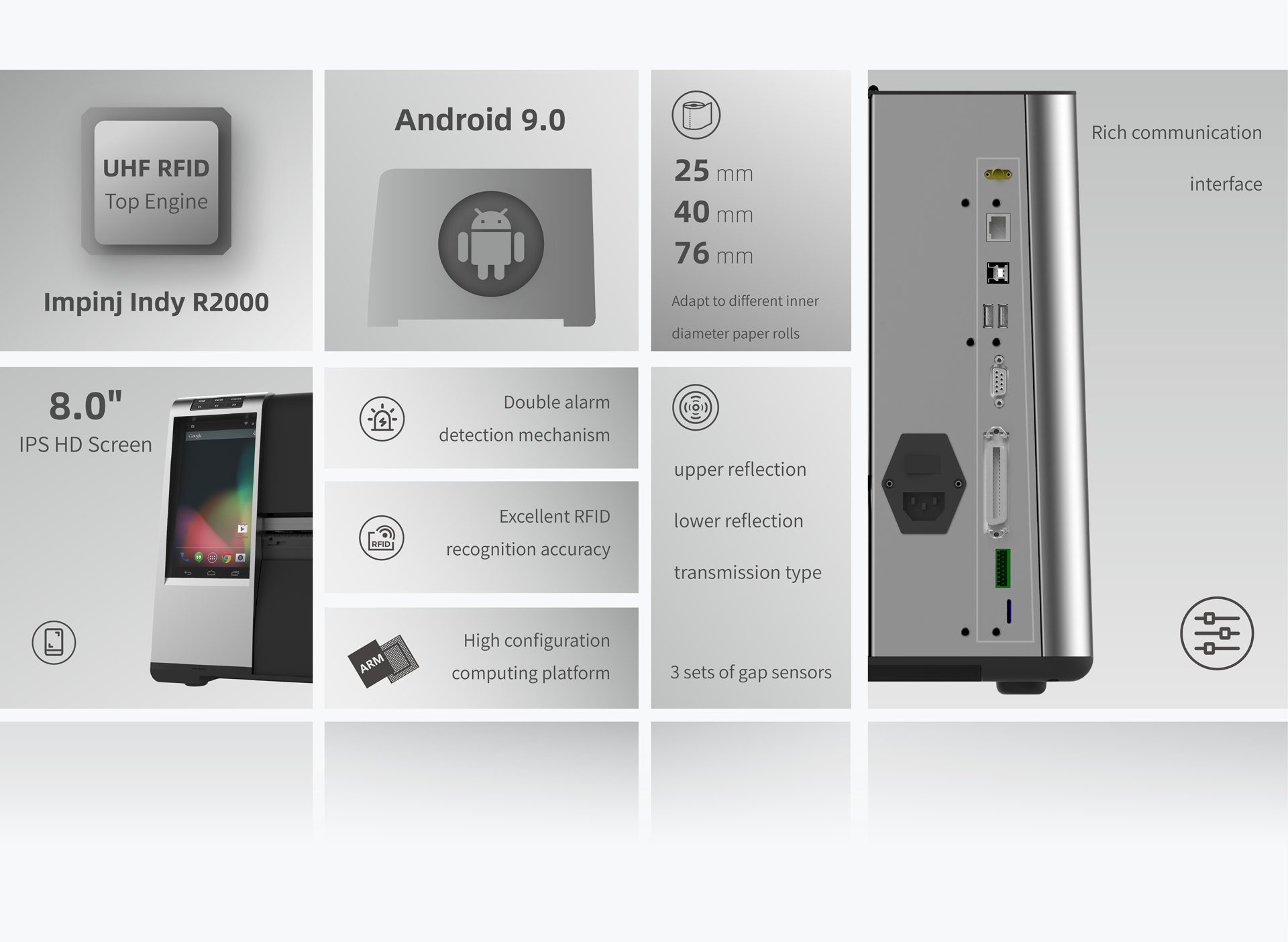

Android 9.0

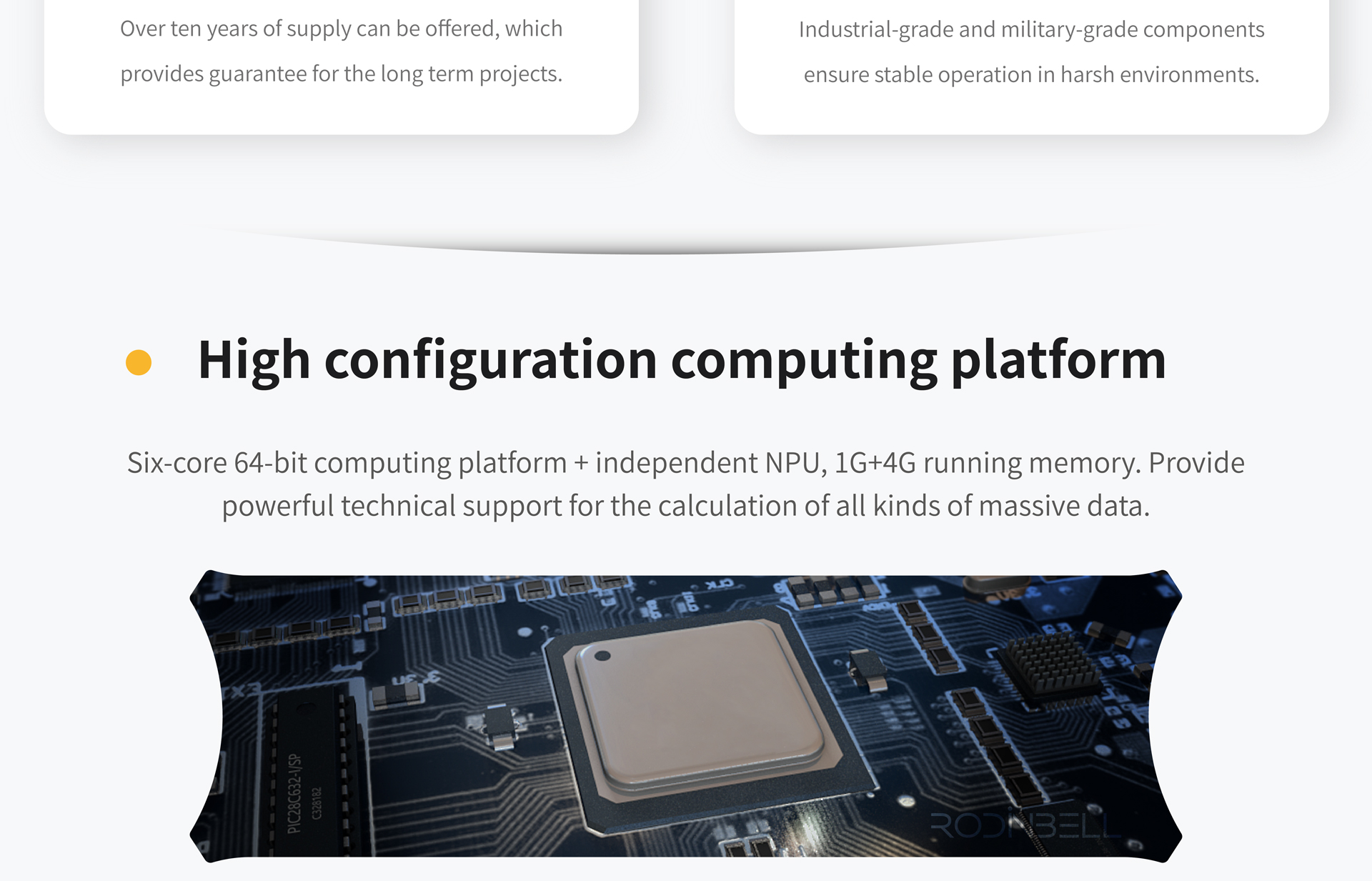

Hexa-core 64 bit processor

( Dual-core Cortex-A72+Quad-core Cortex-A53 )

Frequency is up to 1.8GHz

Mali-T860MP4 GPU

Supports OpenGLES1.1/ 2.0/ 3.0/ 3.1,

OpenVG1.1, OpenCL, DX11

Supports multiple AI algorithms

Computing power up to 3.0TOPs

1G+4G

32G

2 USB3.0 Hos（t Type-A）interfaces

1 USB3.0 Device（Type-B）interface

1 RS232 interface

10/100/1000M-bit ethernet

Bluetooth 5.0

Supports 2.4G/ 5G WIFI

Supports

2 Inputs,2 Outputs

3 ALPS buttons/ Operating force 2.5N /Operating life 1,000,000 cycles

3 ALPS buttons/ Operating force 2.5N /Operating life 1,000,000 cycles

Metal frame, stylish appearance

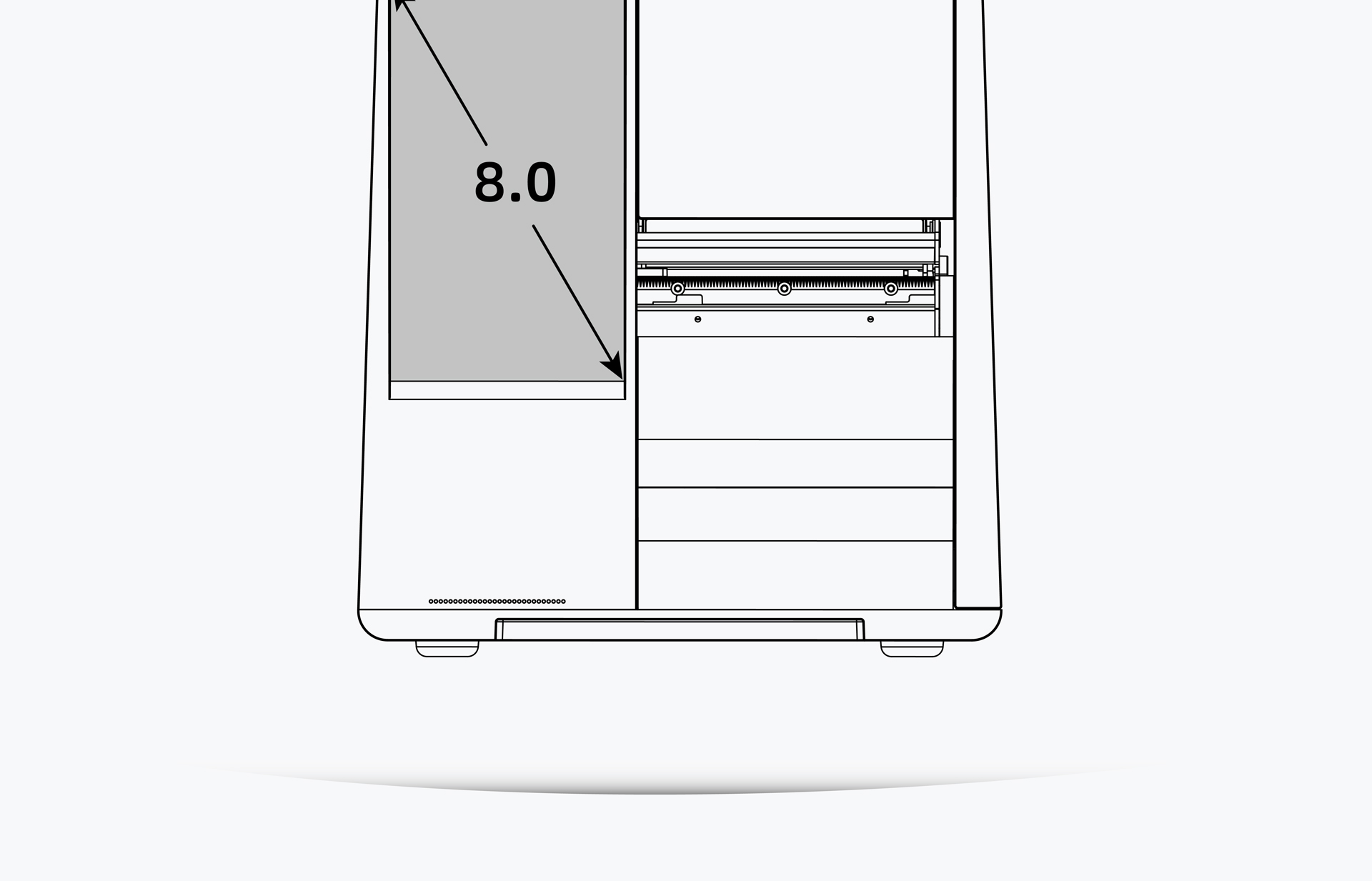

8.0 inches/ 1200*1920 / IPS / 180°view angle

Six axis( Acdeleration+Gyroscope+Magnetometer )

Resolution

Maximum Print Width

Maximum Print Speed

Paper Detection Method

Maximum Continuous Print Length

Print Method

Consumables Installation

300 dpi/12 dots per mm

105mm（4.1″）

300 dpi:254mm/s（10ips）

Transmissive and reflective

3000mm（118.1″）

Thermal transfer and thermal printing

Side-mounted consumables

Environmental Parameters

Power Supply

Operating Temp:： 0°C to 40°C（32°F to 104°F）

Operating Humidity: 20%RH-85%RH（non-condensing）

Storage Temp: -40°C to 60°C(-40°F to 140°F)

Storage Humidity: 20%RH-85%RH（non-condensing）

100～240V，5.8A，50/60Hz
