T-30
UHF RFID Sled Reader
Wonderful design for fixing your phone.
Product
  • Inventory management
  • Power patrol inspection
  • Personnel management
  • Livestock management
  • Accessories tracking
  • Clothing retail management

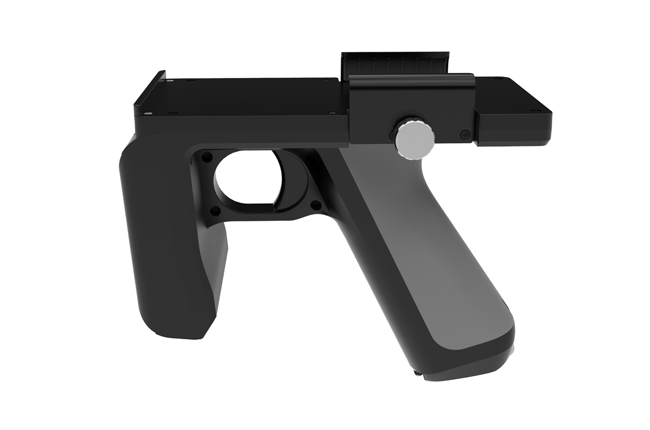

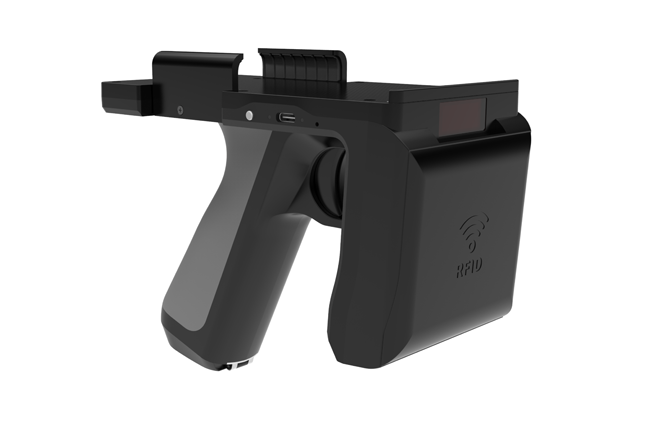

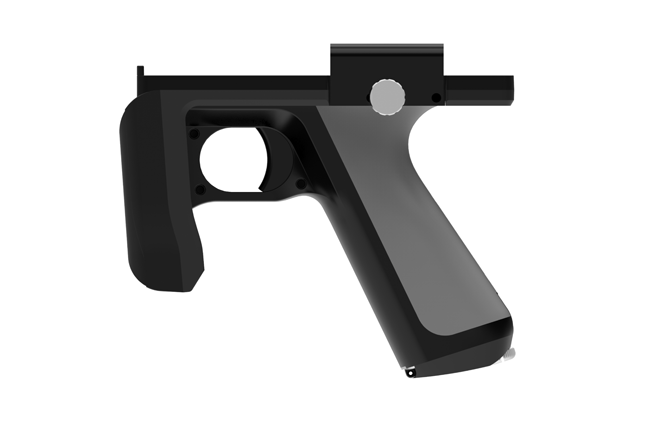

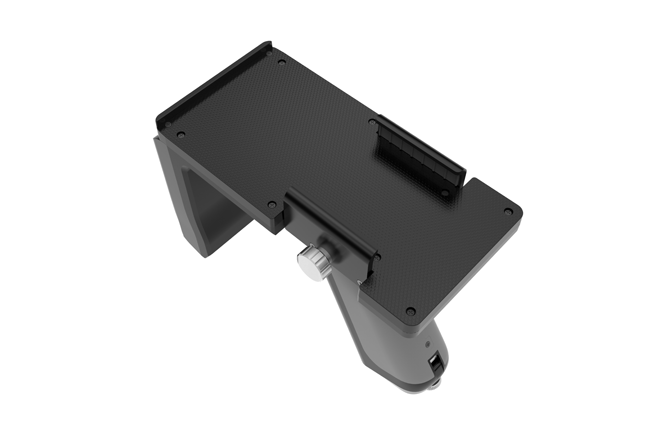

T-30 UHF RFID Sled Reader
DetailsParameterSelectionConsulting
  • Tel:0755-28225530
  • Email:info@rodinbell.com
  • Fax:+86 755 89373021
  • Post:518129
  • Address: Room 905#, Tower B, Xinghe WORLD, Wuhe Avenue, Longgang District, Shenzhen, PRC
Become a partner or an agent?Enter


Mechanical parameters

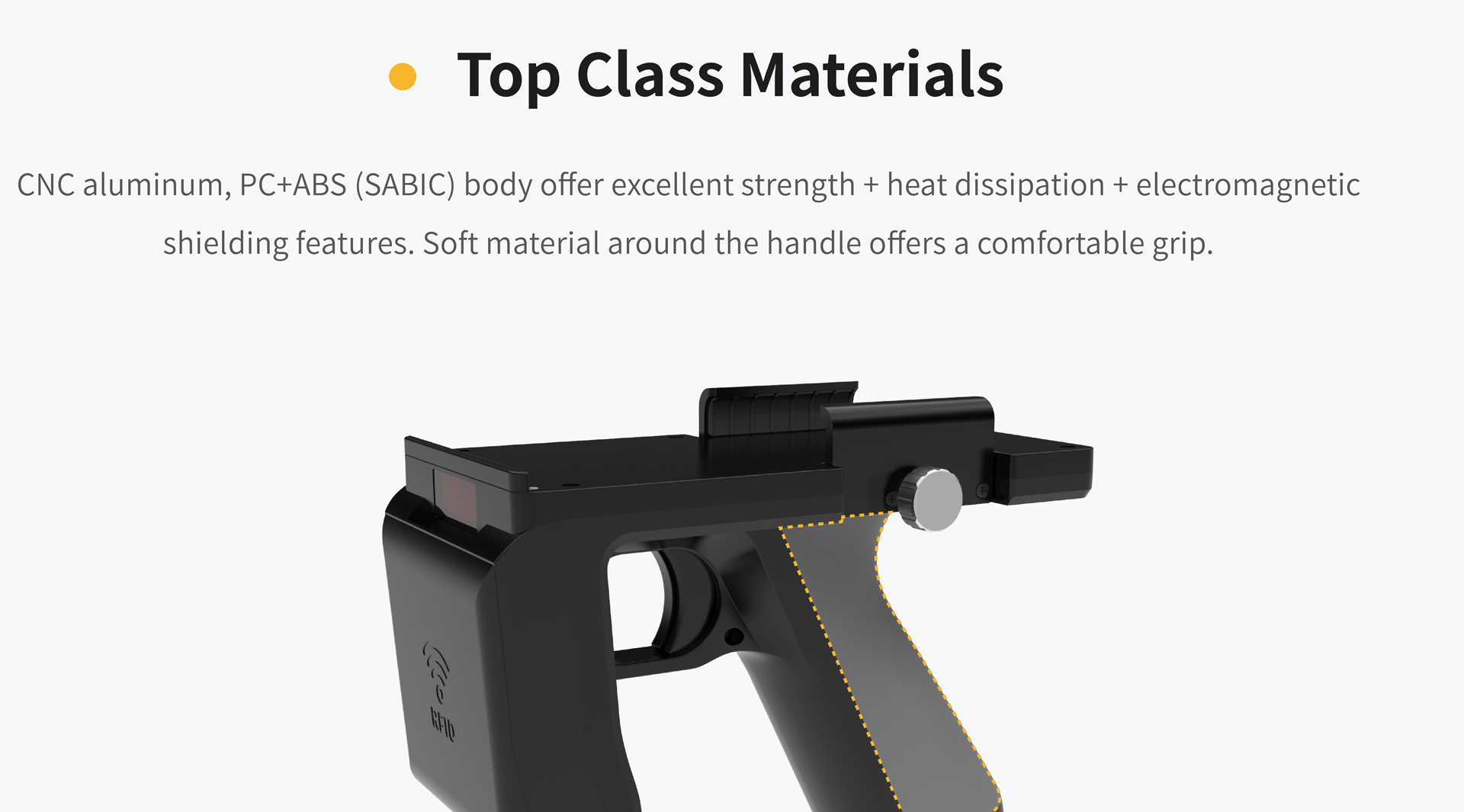

Materials

Dimensions

Weight

Aviation Aluminum,PC+ABS

162*138*78mm

520g(battery included/standard version)

System Characteristics

Hotswapping Battery

Buttons




Power

USB Interface

Buzzer

Charge Indicator

Pistol style hotswapping battery system

Power:ALPS buttons/ Operating force 2.5N /

Operating life 1 million cycles

Scan Trigger:OMRON button/Operating force 1.27N/

Operating life 10 million cycles

6000mAh chargeable Ii-polymer battery

USB2.0(Type-C)*1

Supported

Bicolor LED (BT/Power)

Wireless Communications

Bluetooth 4.0

Bluetooth 4.2

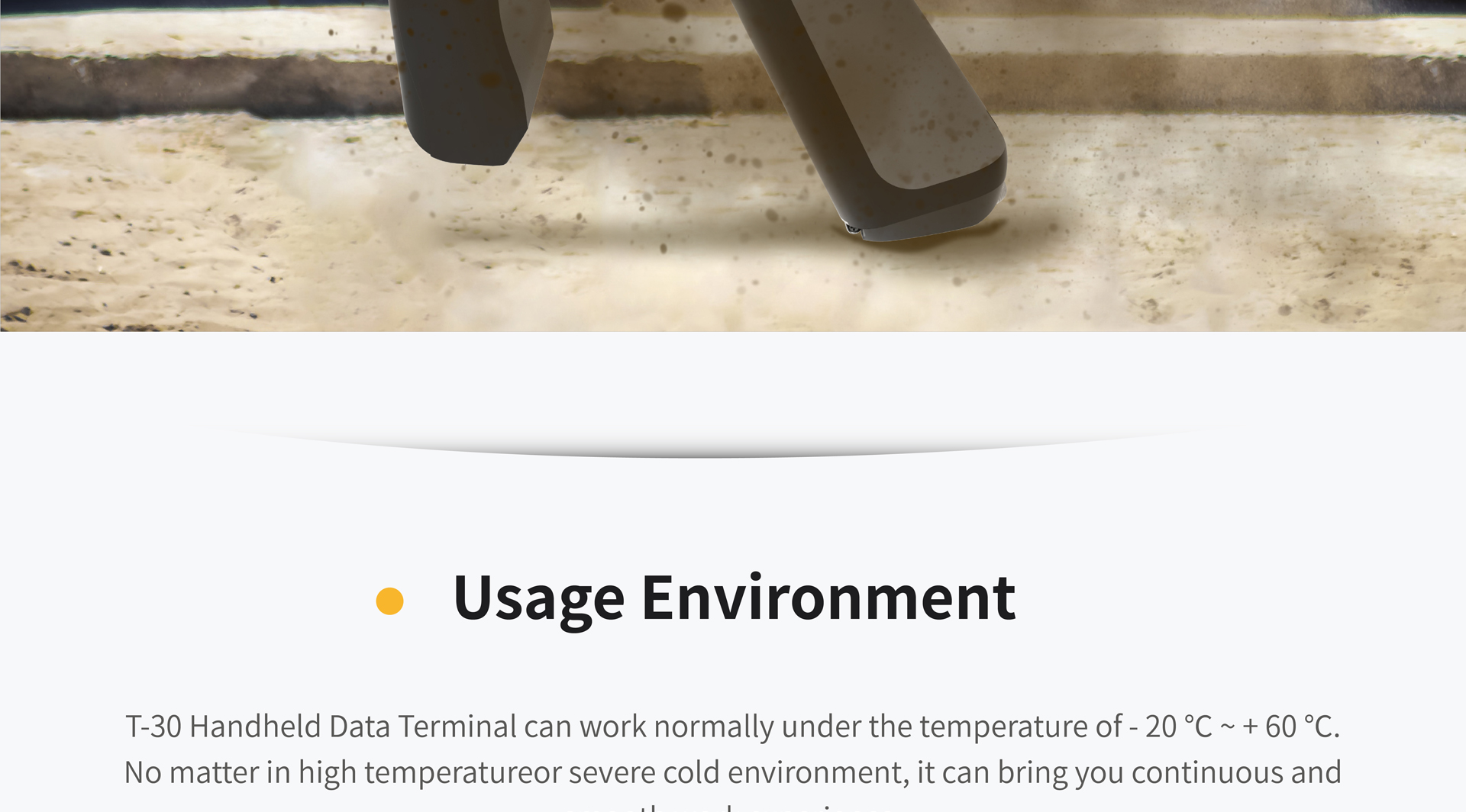

Application Environment

Operating Temp

Storage Temp

Humidity

Protection Grade

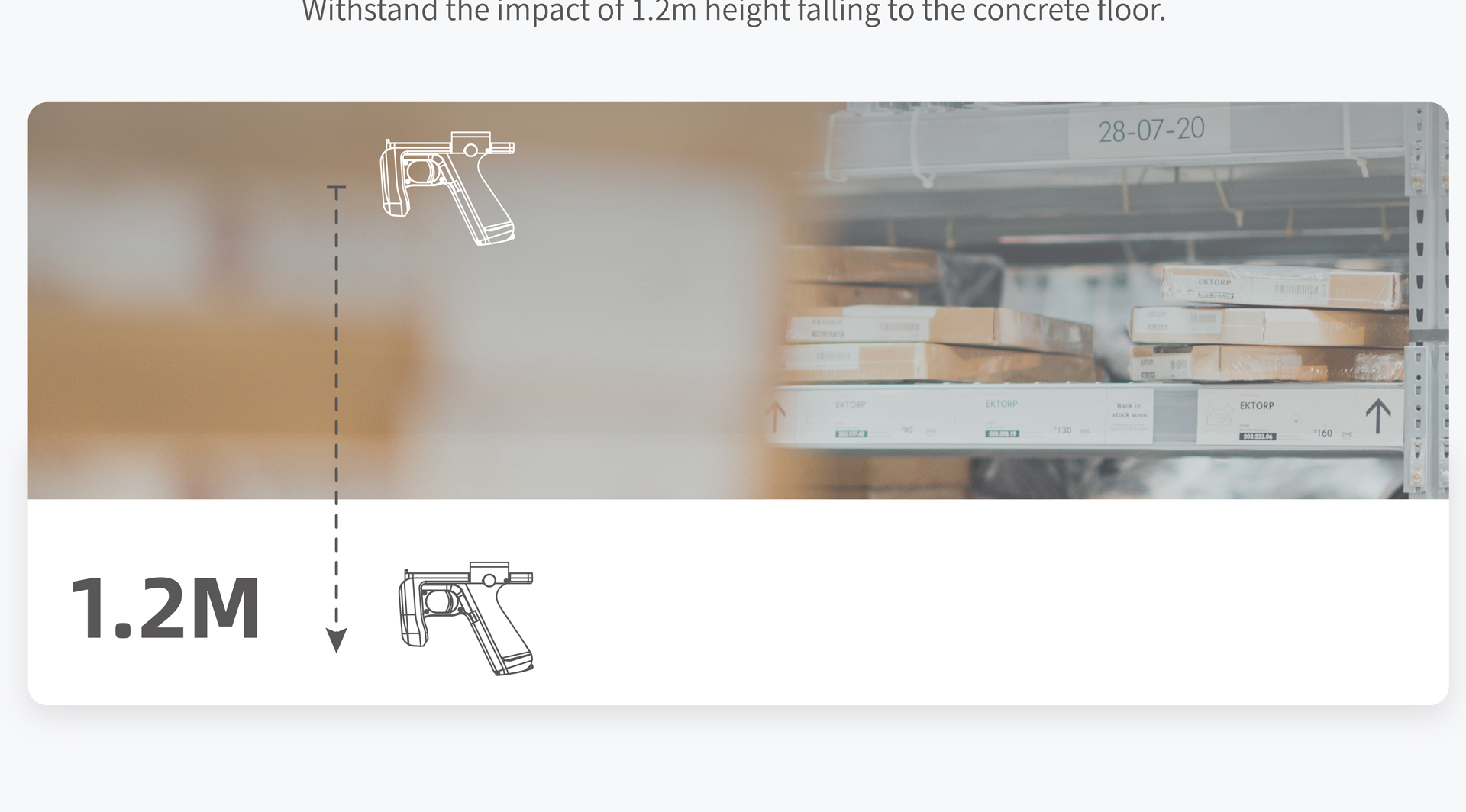

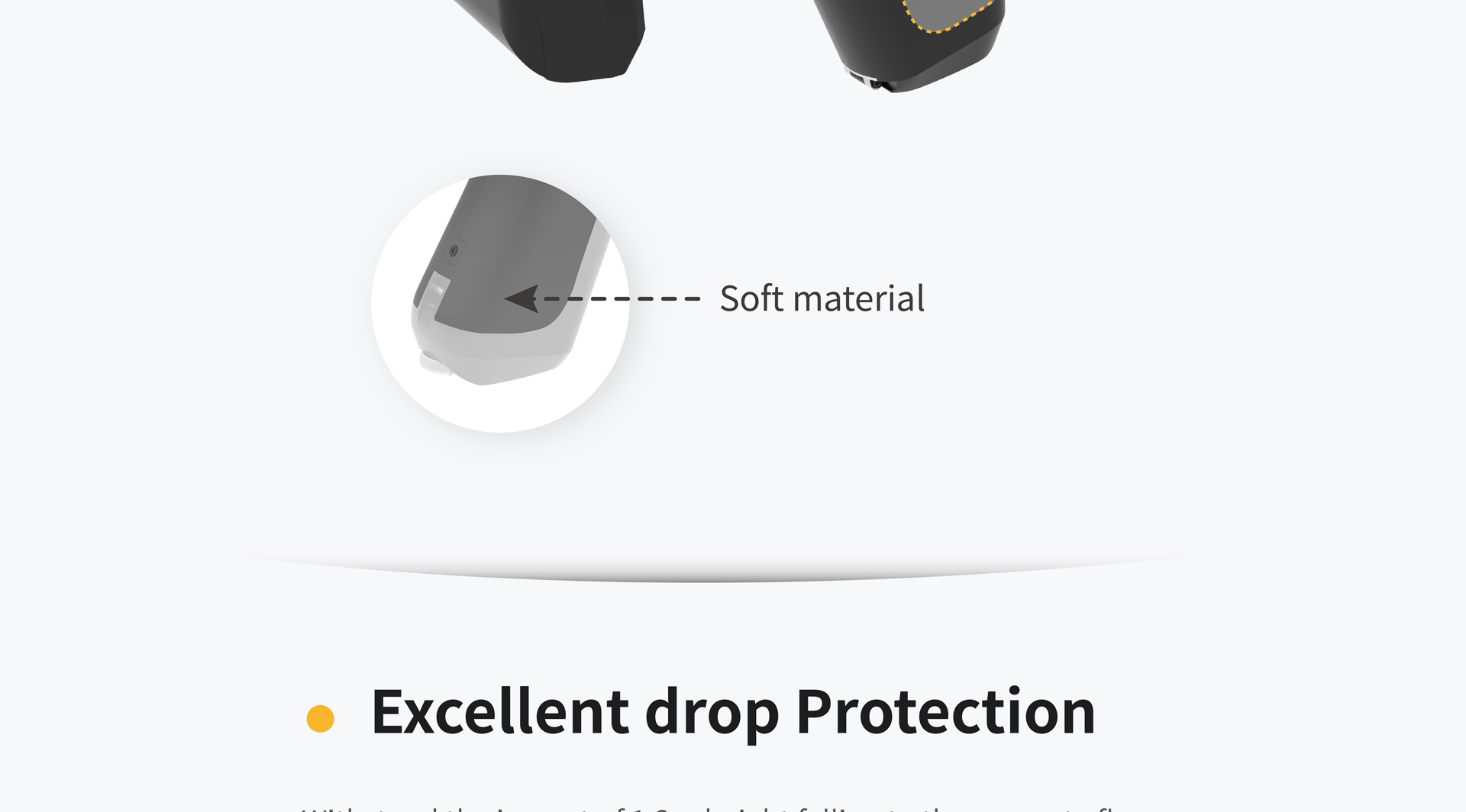

Safety Drop Height

-20℃~+60℃

-30℃~+70℃

5%RH~95%RH(non -condensing)

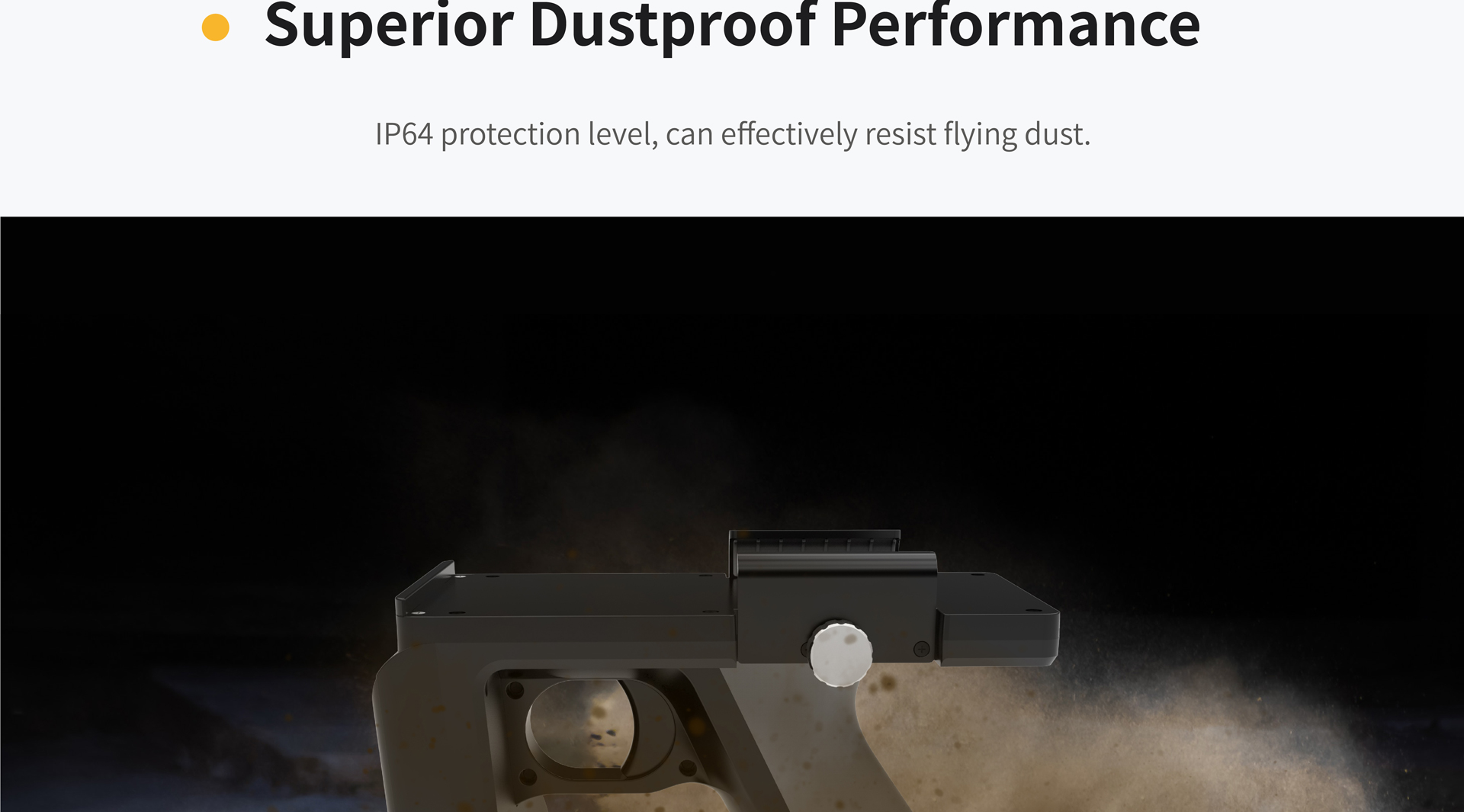

IP64

1.2m / 5.25ft

Data Collections

BarcodeOptional

Engine

1D Barcode



2D Barcode


UHF RFID

Engine

Protocol

Frequency

Output Power

Peak Inventory Speed

UHF Antenna

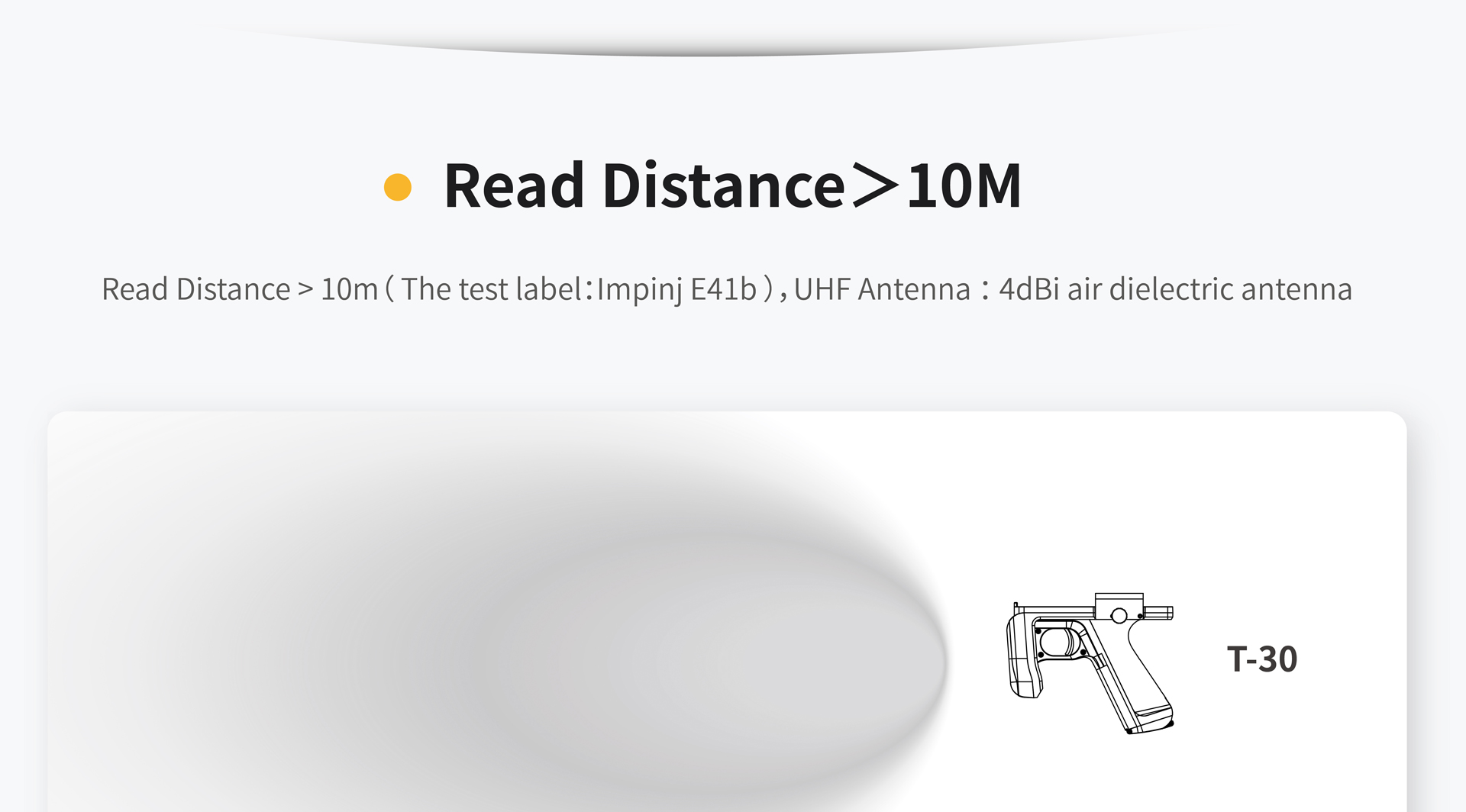

Read Distance

Supported Regions




NLS EM3396

UPC/EA Symbol SE955N/Code128/Code39/Code93/Code11/

Interleaved 2 of 5/Discrete 2 of 5/Chinese 2 of 5/Codabar/

MSI/RSS.etc.

Data Matrix/QR Code/Aztec Code/PDF417/US Planet/

UK Postal etc.


Rodinbell M-2670Air/  based on Impinj Indy R2000

EPC Global UHF Class 1 Gen 2/ ISO 18000-6C/6B

902~928MHz, 865~868MHzOptional

0~33dbm

>500pcs/s

4dBi air medium antenna

>12m

China, Korea, Malaysia, Japan

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208

Accessories

Battery,Charger,USB data cable,Hanging Lace

Desktop charger(charge two batteries)Optional
