NEW Spider AI
8-Port UHF RFID Fixed Reader
AI computing platform built with independent NPU
Product
  • Clothing
  • Retail
  • Personnel
  • Library
  • Livestock
  • Warehouse

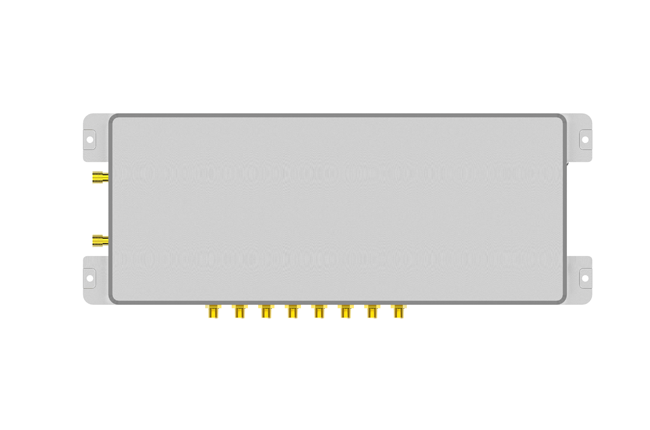

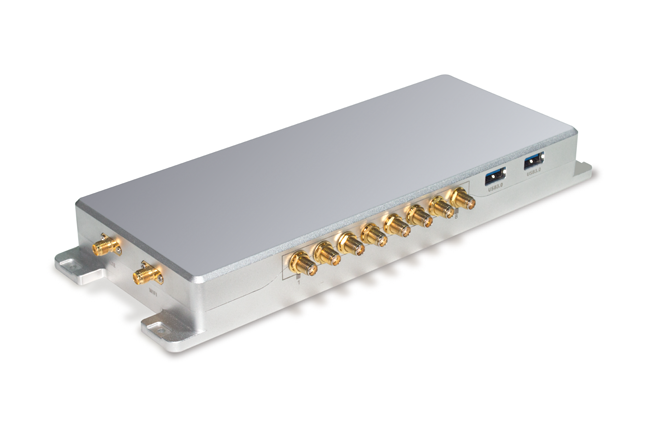

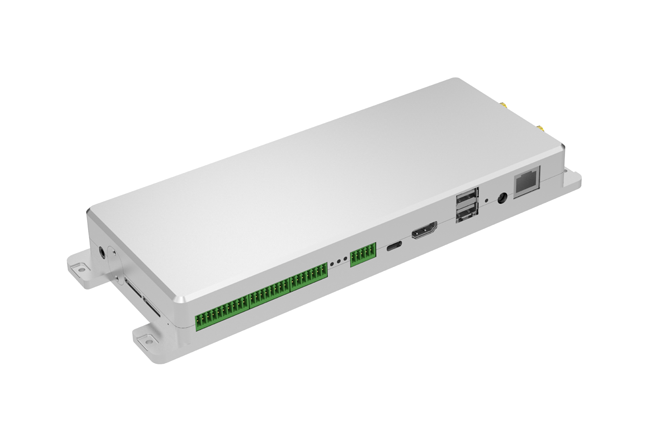

Spider AI 8-Port UHF RFID Fixed Reader
DetailsParameterSelectionConsulting
  • Tel:0755-28225530
  • Email:info@rodinbell.com
  • Fax:+86 755 89373021
  • Post:518129
  • Address: Room 905#, Tower B, Xinghe WORLD, Wuhe Avenue, Longgang District, Shenzhen, PRC
Become a partner or an agent?Enter


Mechanical Parameters

Material

Dimensions

Weight

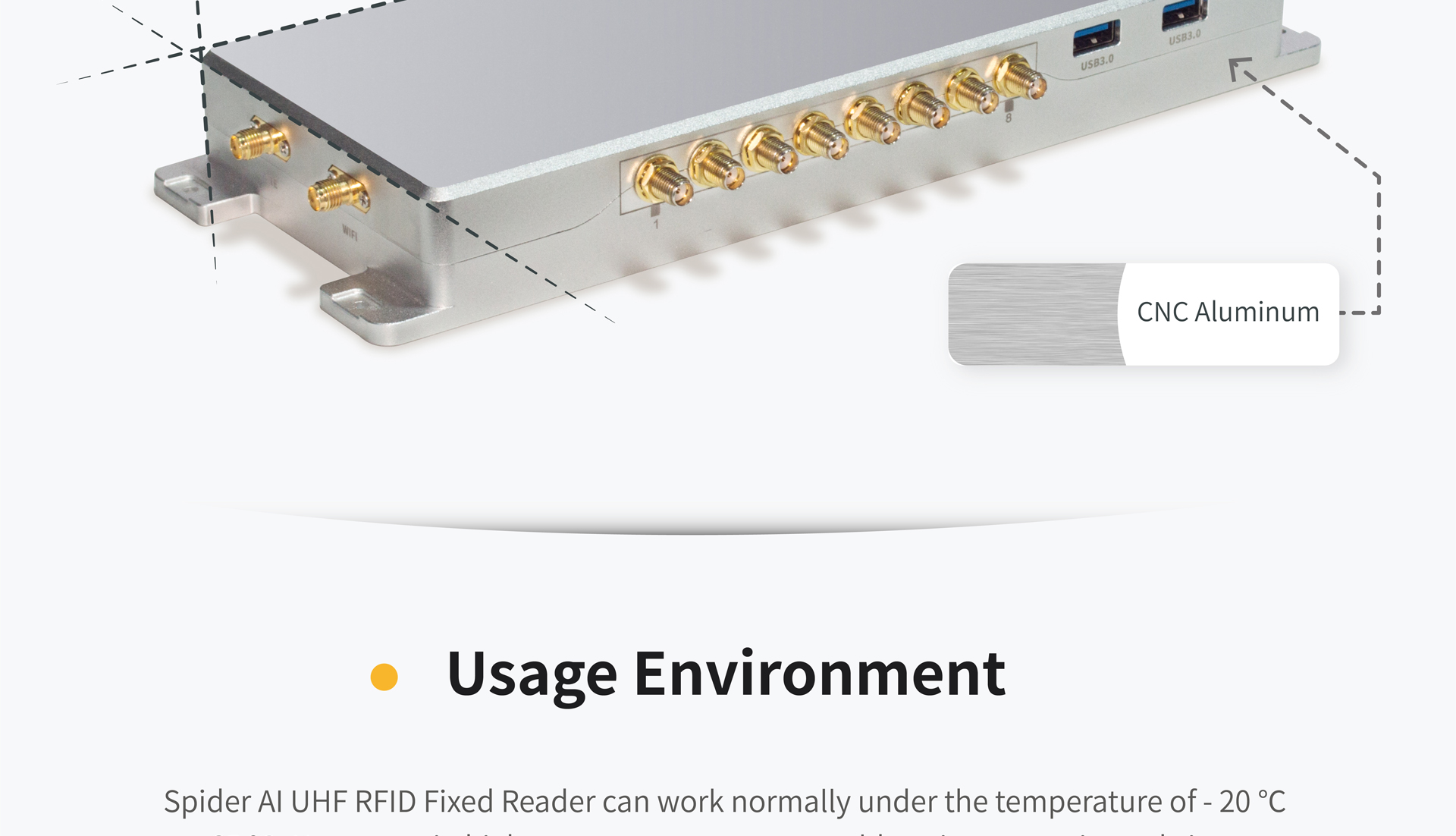

CNC Aluminum body

250*94*29mm

660g

System Characteristics

Operation System

CPU


GPU


NPU



RAM+ROM

Input Voltage

Recommended power

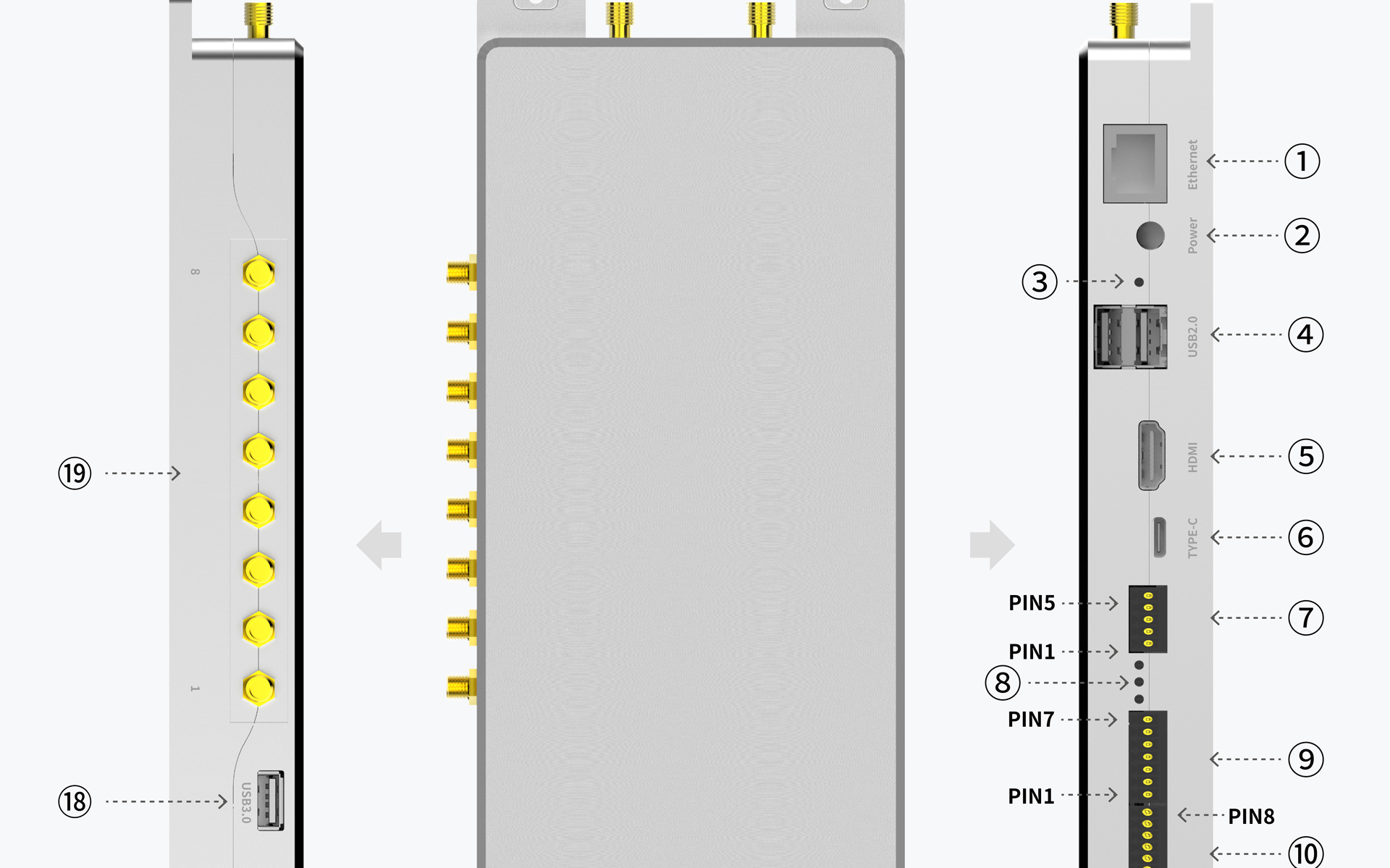

RFID Antenna Interface

POEOptional

Gyroscope

SD Card

PSAM

HDMI

Audio

Camera Interface

Temperature Monitoring

Online Upgrade

Android 8.1

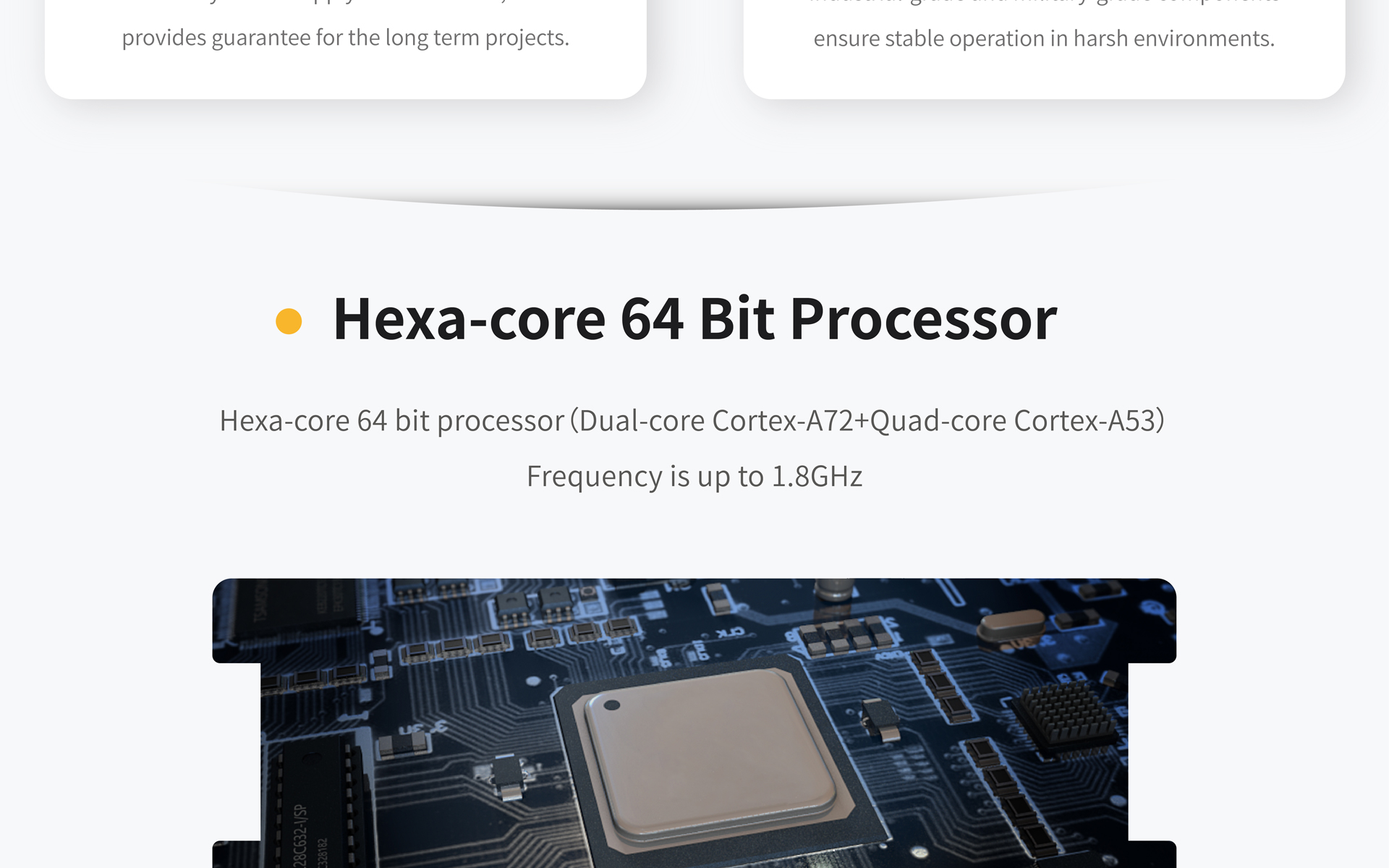

Dual-core Cortex-A72+Quad-core Cortex-A53

Frequency is up to 1.8GHz

Mali-T860MP4 GPU

Support OpenGLES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11

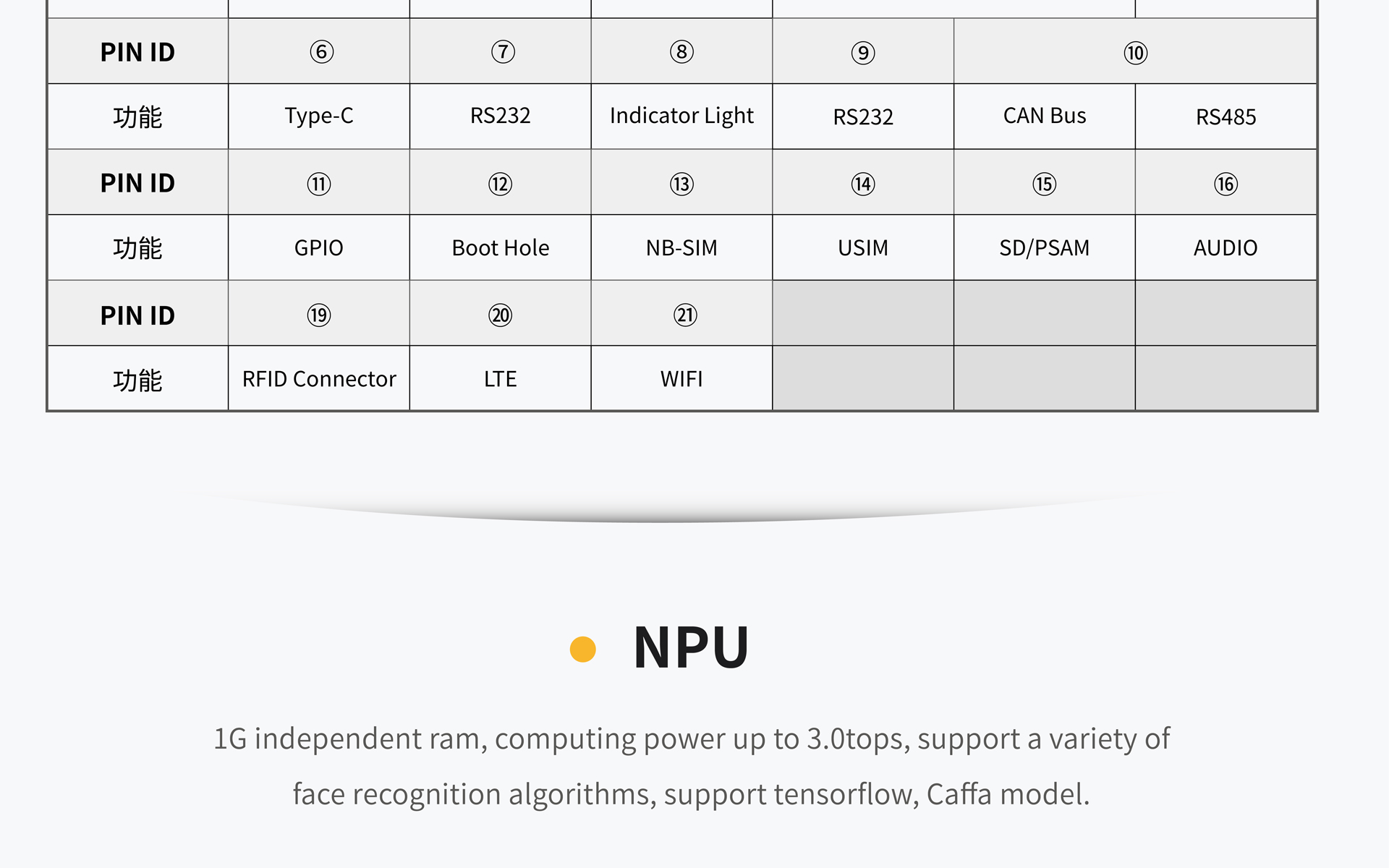

1G independent RAM,Computing power up to 3.0TOPs

Support multiple face recognition algorithms

Support TensorFlow/Caffe Model

2G+32G,4G+64GOptional

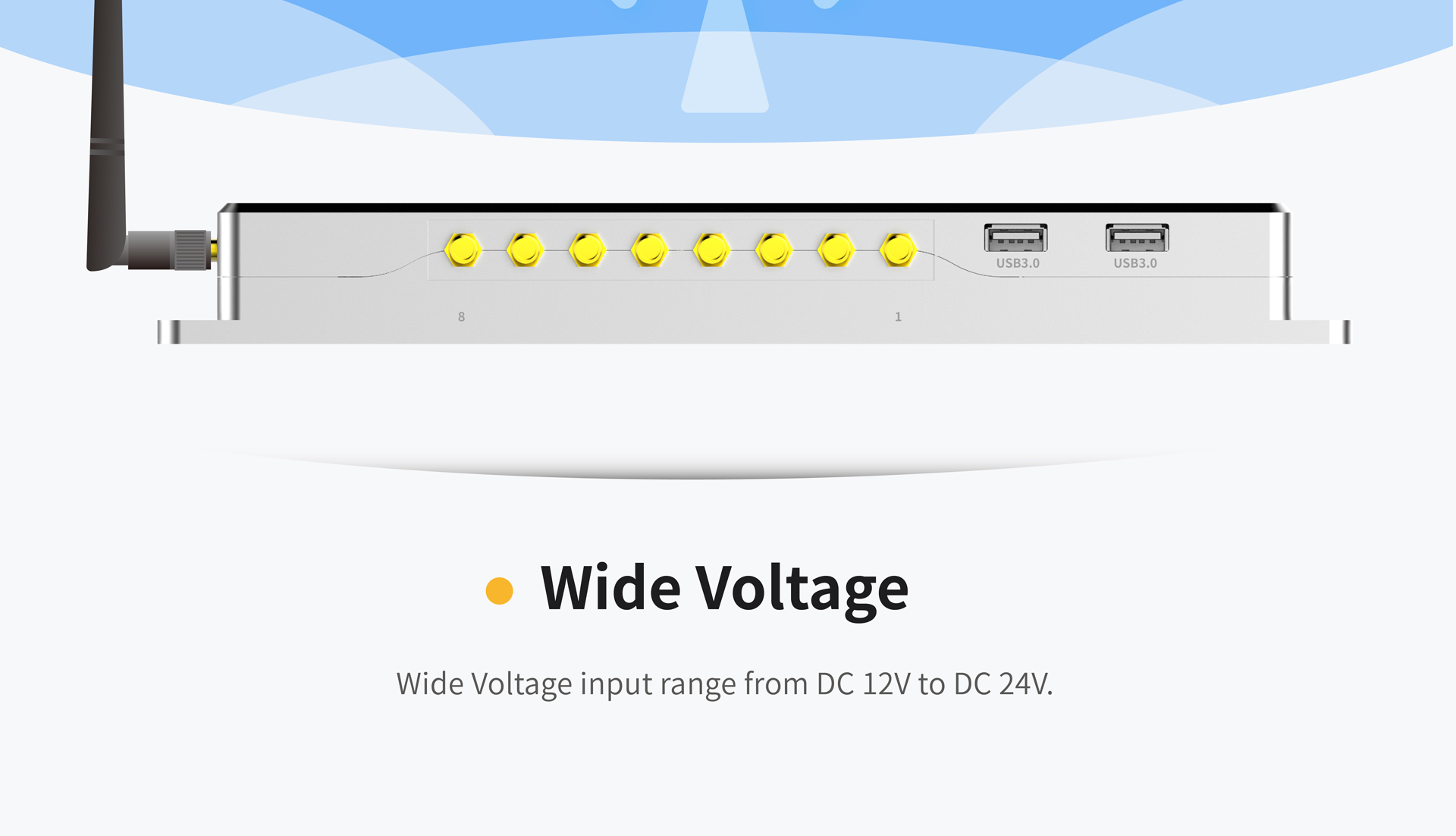

DC 12V~24V

>50W

8 SMA female antenna interfaces

Maximum 25W, support IEEE 802.3 protocol

Nine axis ( Acdeleration+Gyroscope+Magnetometer )

1 Micro SD3.0 slot

1 Micro PSAM slot

1 HDMI2.0 (Type-A) interface,Supports 4K/ 60fps output

1 Stereo audio output jack

Support dual 4K HD cameras input

Support

Support

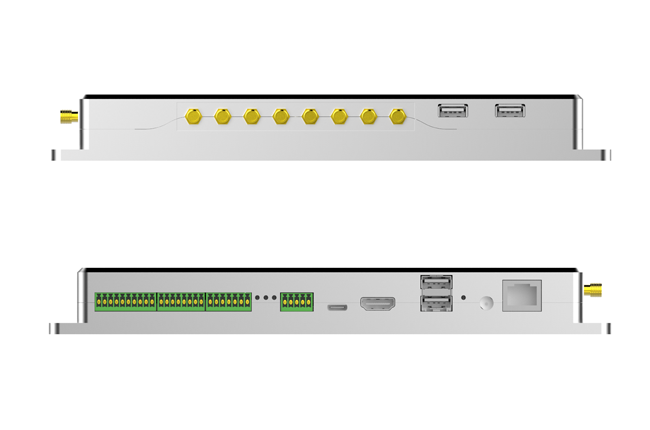

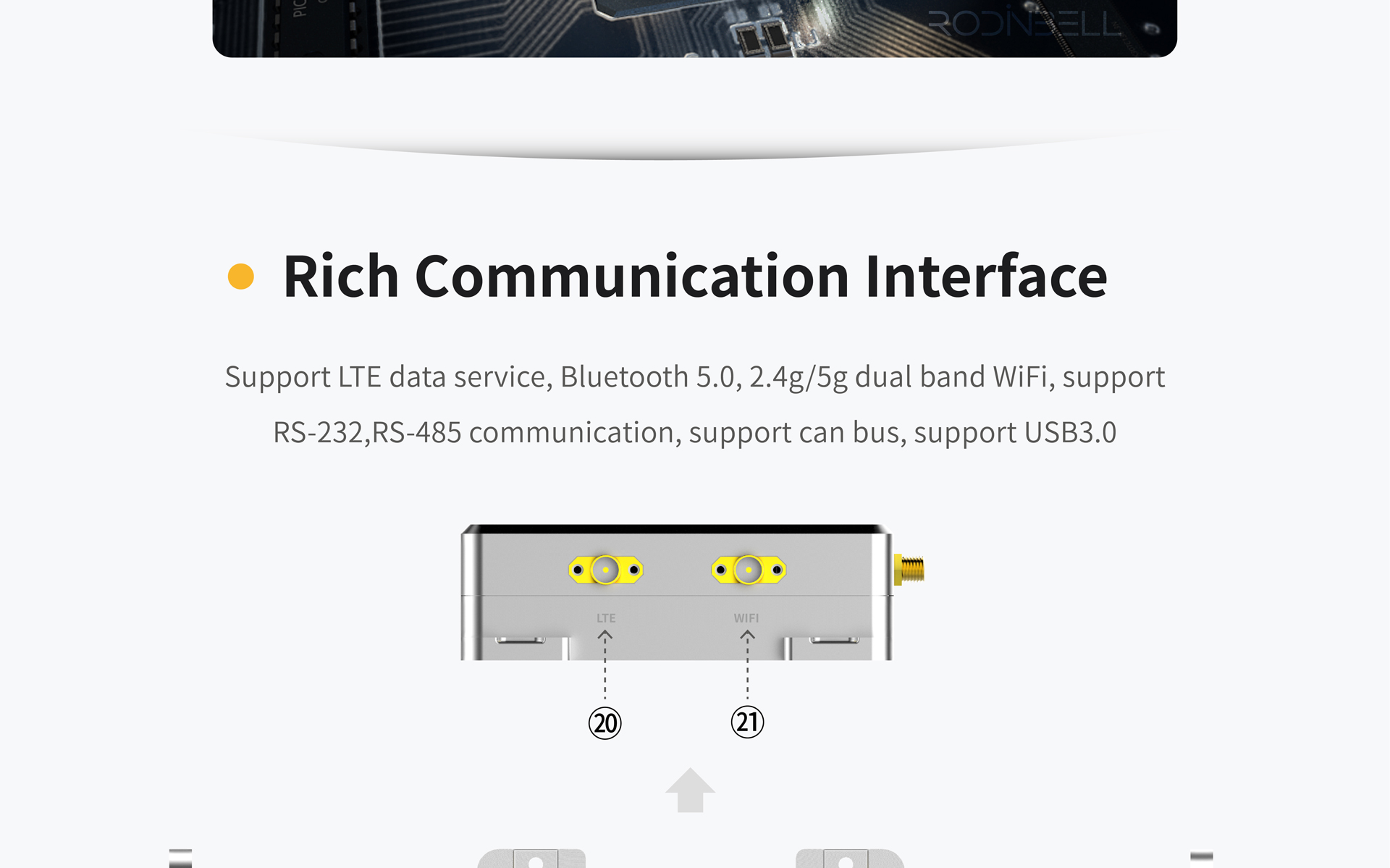

Communication Mode

USB



Ethernet

Serial Interface

Industrial Bus

WIFI

Bluetooth

LTEOptional

GPIO

2 USB2.0 Host(Type-A)interfaces

2 USB3.0 Host(Type-A)interfaces

1 USB3.0 OTG(Type-C)interface

10/ 100/ 1000Mbps ethernet

4 RS232 interfaces, 1 RS485 interface

CAN Bus

Support 2.4G/ 5G WIFI

Bluetooth 5.0

Support LTE data service

4 inputs, 4 outputs

Application Environment

Operating Temp

Storage Temp

Humidity

Protection Grade

Heat Dissipation

-20℃~+85℃

-40℃~+85℃

5%RH~95%RH(non-condensing)

IP53

Air cooling

Data Collection

UHF RFID

Engine

Protocol

Frequency

Output Power

Peak Inventory Speed

Output Power Precision

Output Power Flatness

Sensitivity

Tag RSSI

Antenna Detector

Supported Regions




Based on Impinj Indy R2000

EPC Global UHF Class 1 Gen 2/ ISO 18000-6C/ISO 18000-6B

902~928MHz, 865~868MHzOptional

0~33dbm

>700pcs/s

+/- 1dB

+/- 0.2dB

<-85dBm

Supported

Supported

China, Korea, Malaysia, Japan

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208
