M-702
Four Ports UHF RFID Module
Product
  • Data Terminal
  • Fixed Reader
  • Clothing
  • Library
  • Livestock
  • Retail

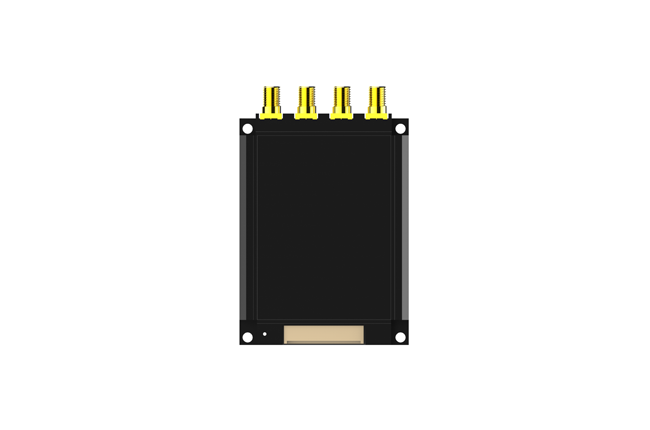

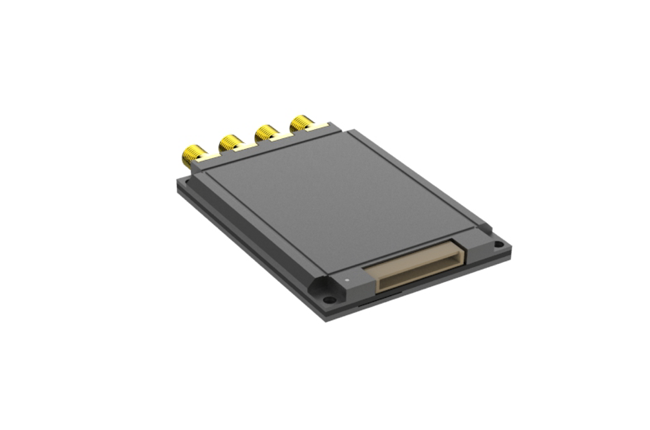

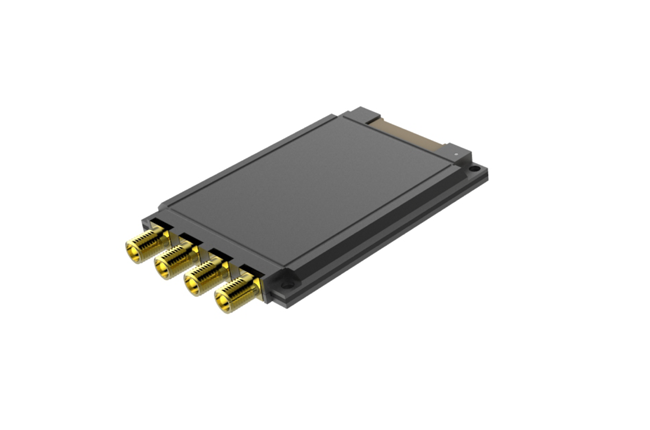

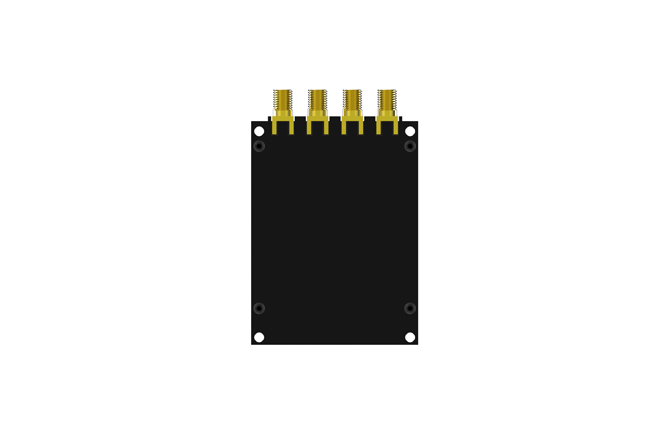

M-702 Four Ports UHF RFID Module
DetailsParameterSelectionConsulting
  • Tel:0755-28225530
  • Email:info@rodinbell.com
  • Fax:+86 755 89373021
  • Post:518129
  • Address: 905#, Tower B, Xinghe WORLD, Wuhe Avenue, Longgang District, Shenzhen City, PRC
Become a partner or an agent?Enter


Mechanical Parameters

Dimensions

76.7*51*6.3mm

Electrical Parameters

Input Voltage

Operating Current

Standby Mode Current

Sleep Mode Current

Baud Rate

Ambient Temp Monitoring

DC 4.6V~5.5V

1.2A+/-10%@5V (33dBm Output,25°C)

<80mA(EN high level)

<100uA(ENlow level)

115200 bps(Default and recommended),38400 bps

Supported

Communication Interface

Serial Port

GPIO

Uart 3.3V

2 Inputs,2 Outputs(3.3V)

Application Environment

Operating Temp

Storage Temp

Humidity

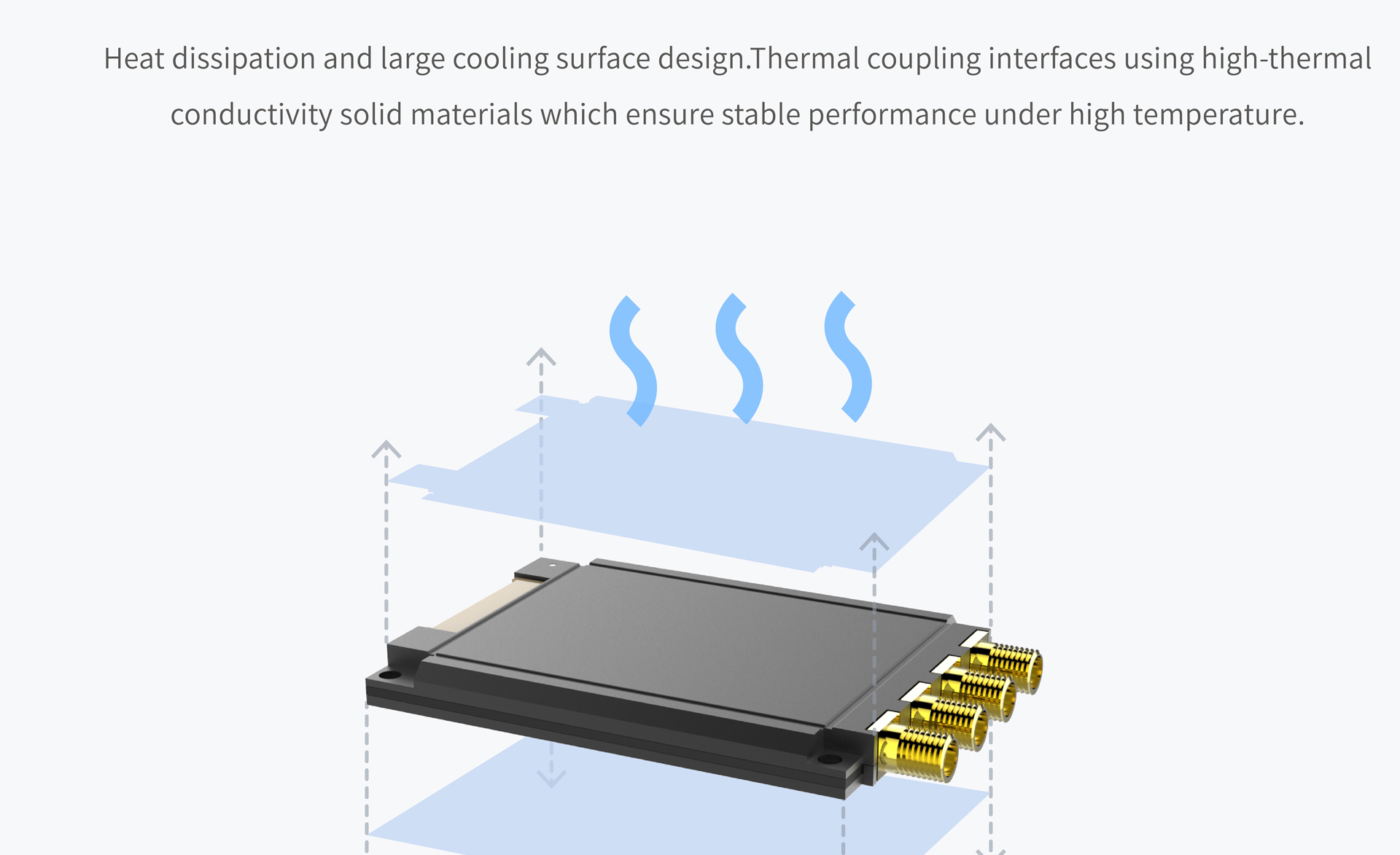

Heat Dissipation

-20℃~+55℃

-40℃~+85℃

5%RH~95%RH(non-condensing)

External radiator

UHF

Engine

Protocal

Frequency

Output Power

Peak Inventory Speed

Tag Buffer Mode

Output Power Precision

Output Power Flatness

Sensitivity

Tag RSSI

Antenna Detector

Supported Regions



Based on Impinj E710

EPC Global UHF Class 1 Gen 2/ ISO 18000-6C/ISO 18000-6B

902~928MHz, 865~868MHzOptional

0~33dbm

>700pcs/s

500 pcs @ 96 bit EPC

+/- 1dB

+/- 0.2dB

<-85dBm

Supported

Supported

China, Korea, Malaysia, Japan

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208
