HOT EAA-001

Embedded Computer

Freescale industrial platform offers outstanding stability.

DownMore Product

Product

Environment
Electricity
Education
Financial
Vehicle
Traffic

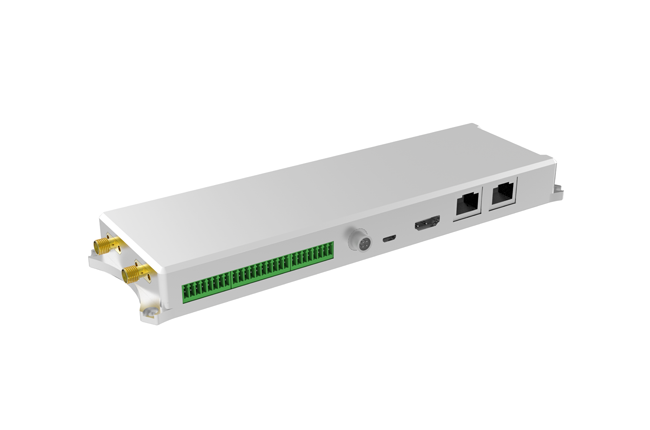

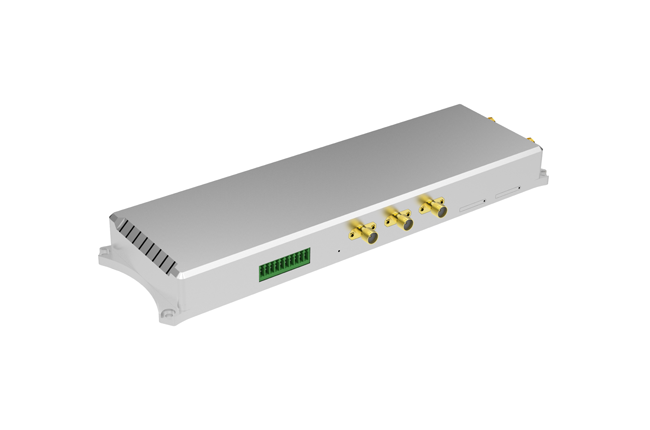

EAA-001 Embedded Computer

DetailsParameterSelectionConsulting

Tel：0755-28225530
Email：info@rodinbell.com
Fax：+86 755 89373021
Post：518129
Address： 905#, Tower B, Xinghe WORLD, Wuhe Avenue, Longgang District, Shenzhen City, PRC

Become a partner or an agent？Enter

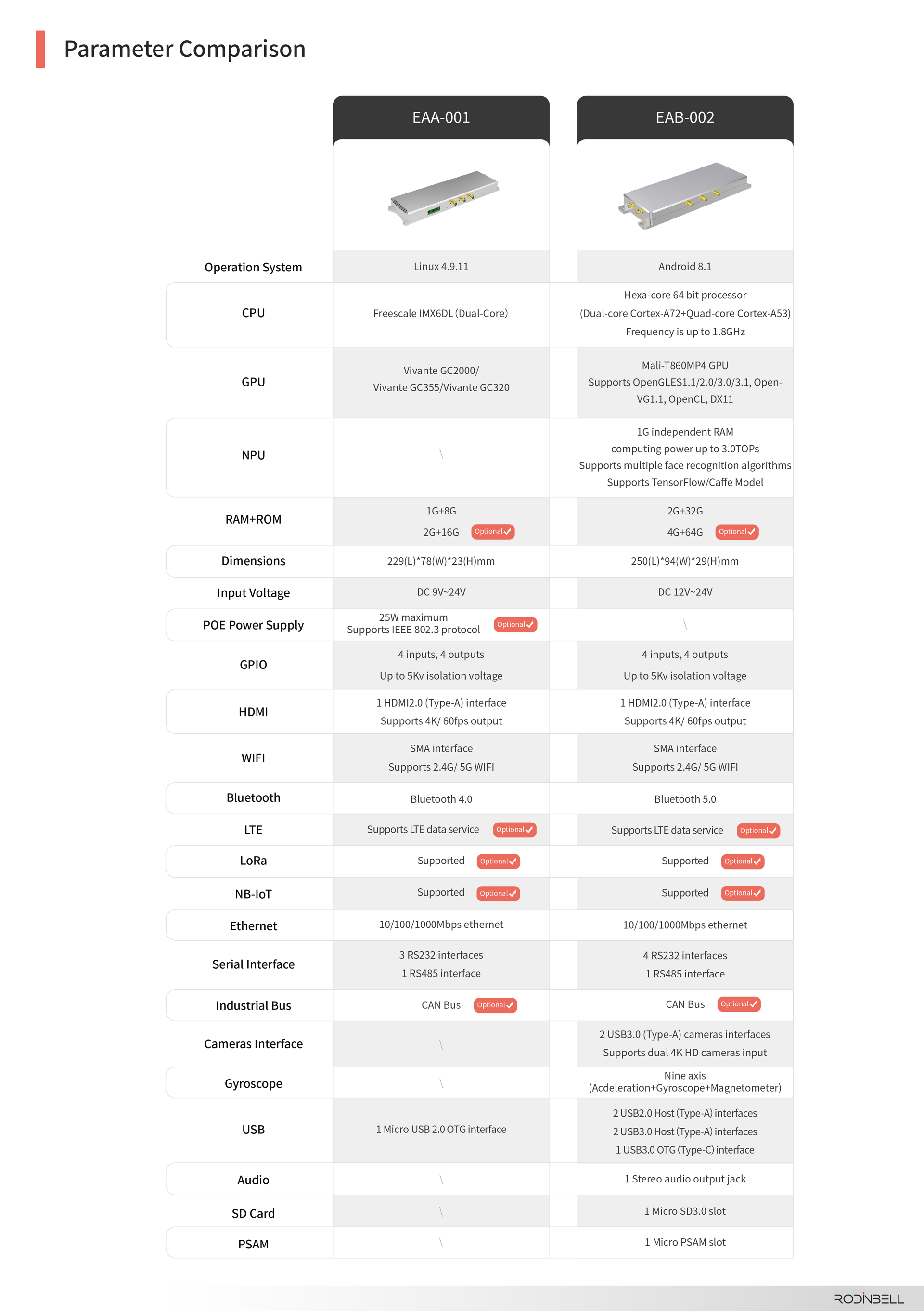

Mechanical Parameters

Material

Dimensions

Weight

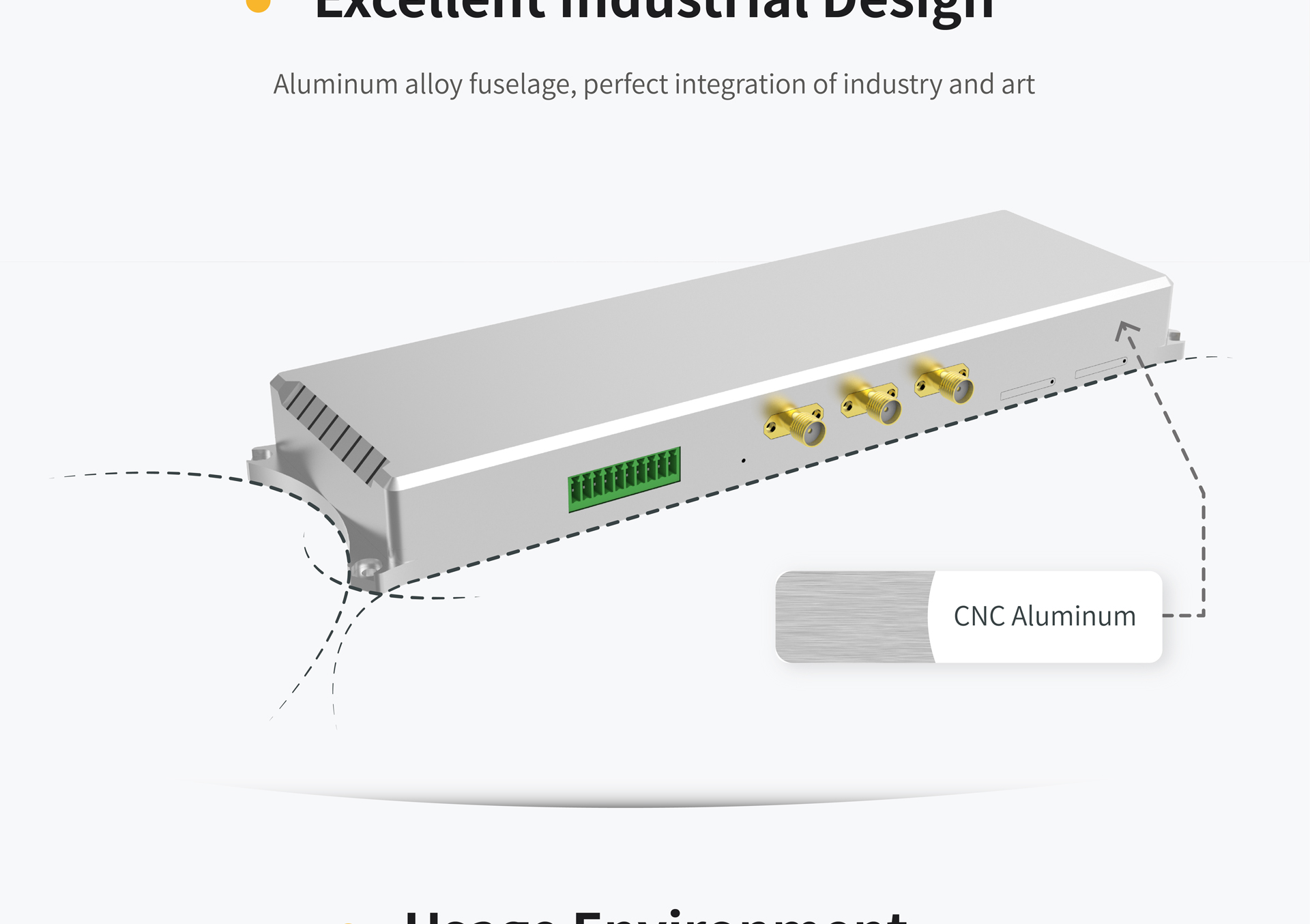

CNC Aluminum

229*78*23mm

430g

Electrical Parameters

Operating System

CPU

GPU

RAM+ROM

Input Voltage

Operating Current

POEOptional

HDMI

Ambient Temp Monitoring

Online Upgrade

Linux 4.9.11

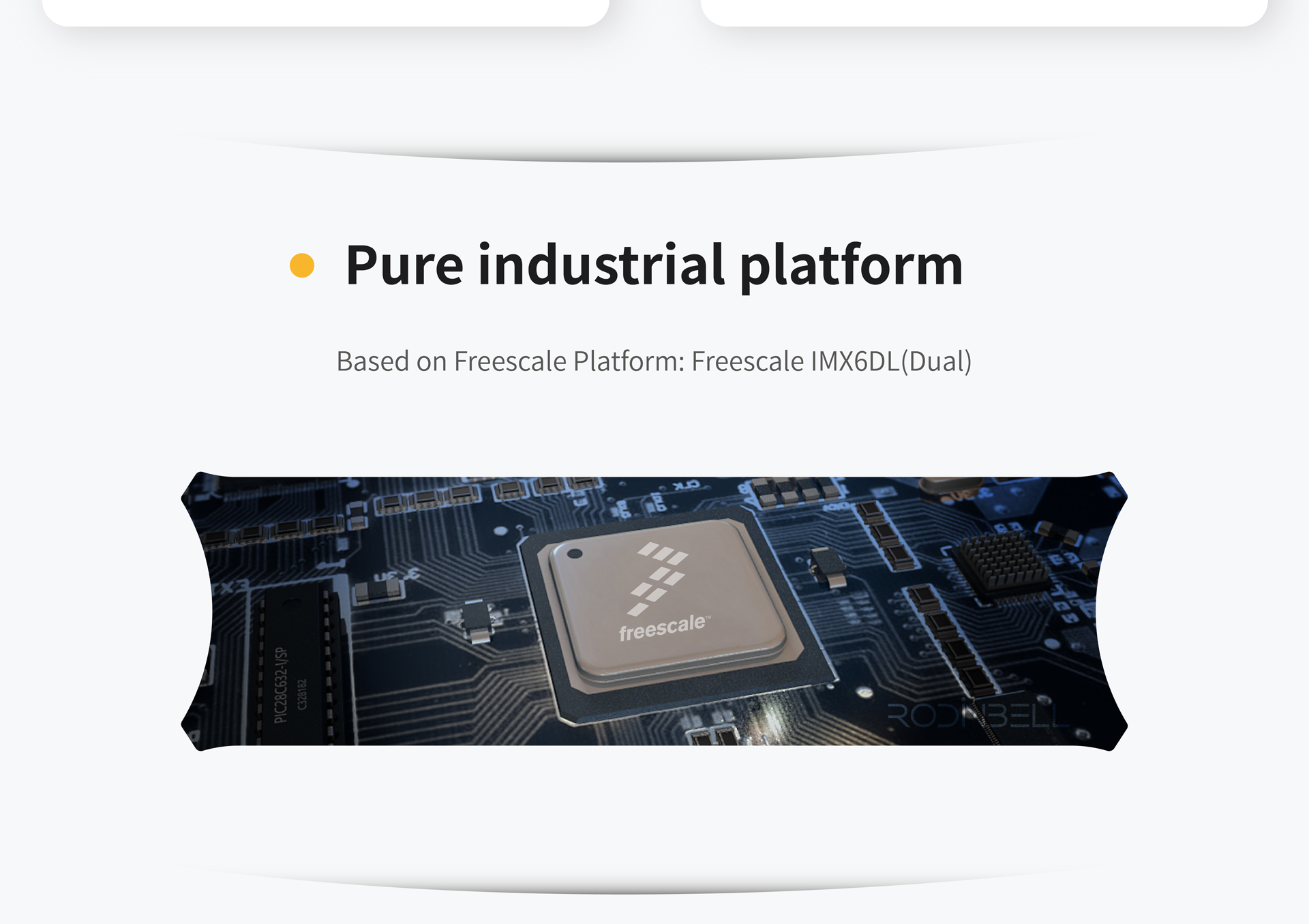

Freescale IMX6DL(Dual)

Vivante GC2000/Vivante GC355/Vivante GC320

1G+8G

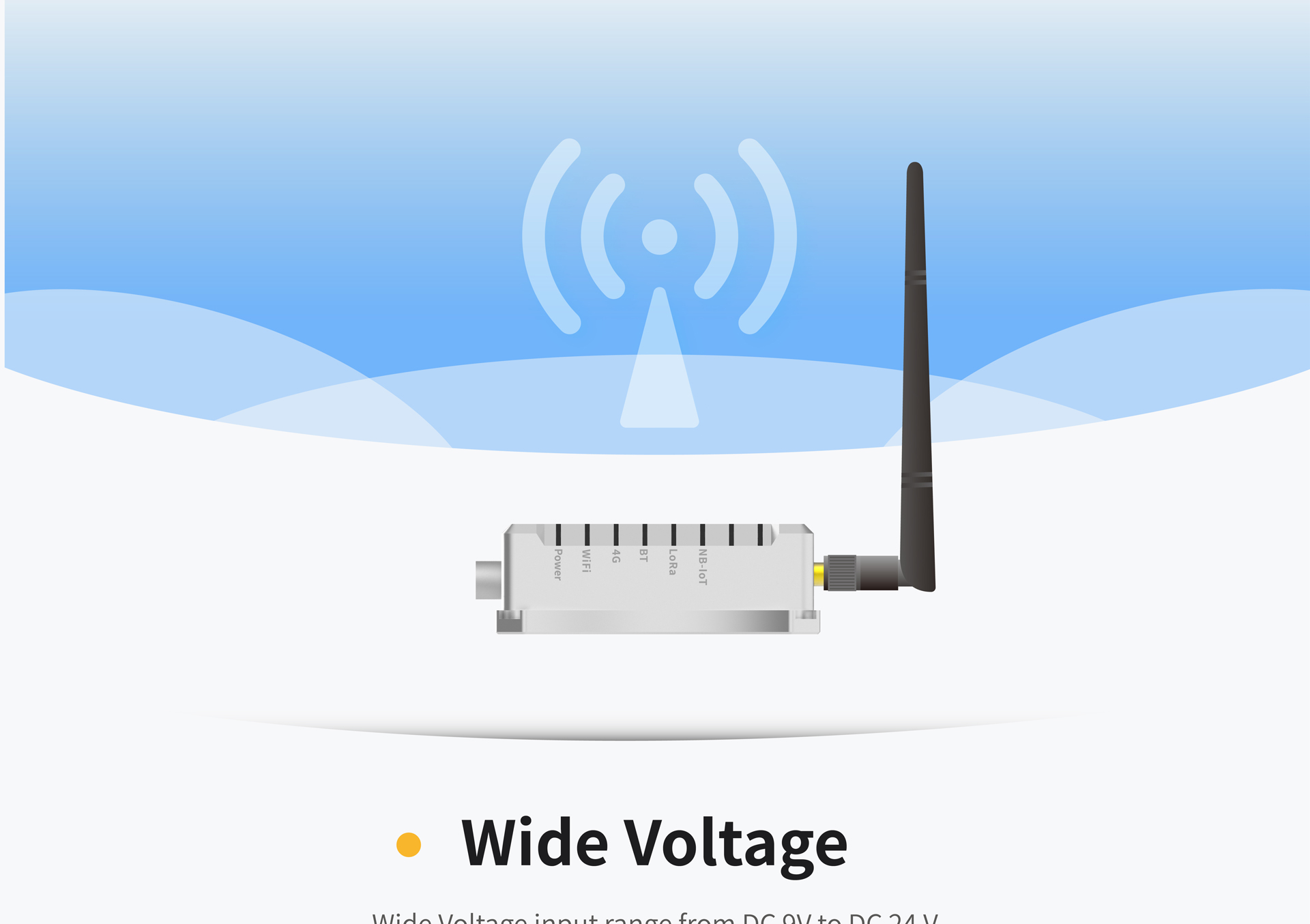

DC 9V~24V

300mA+/-5%@DC 12V Input

Maximum 25W, support IEEE 802.3 protocol

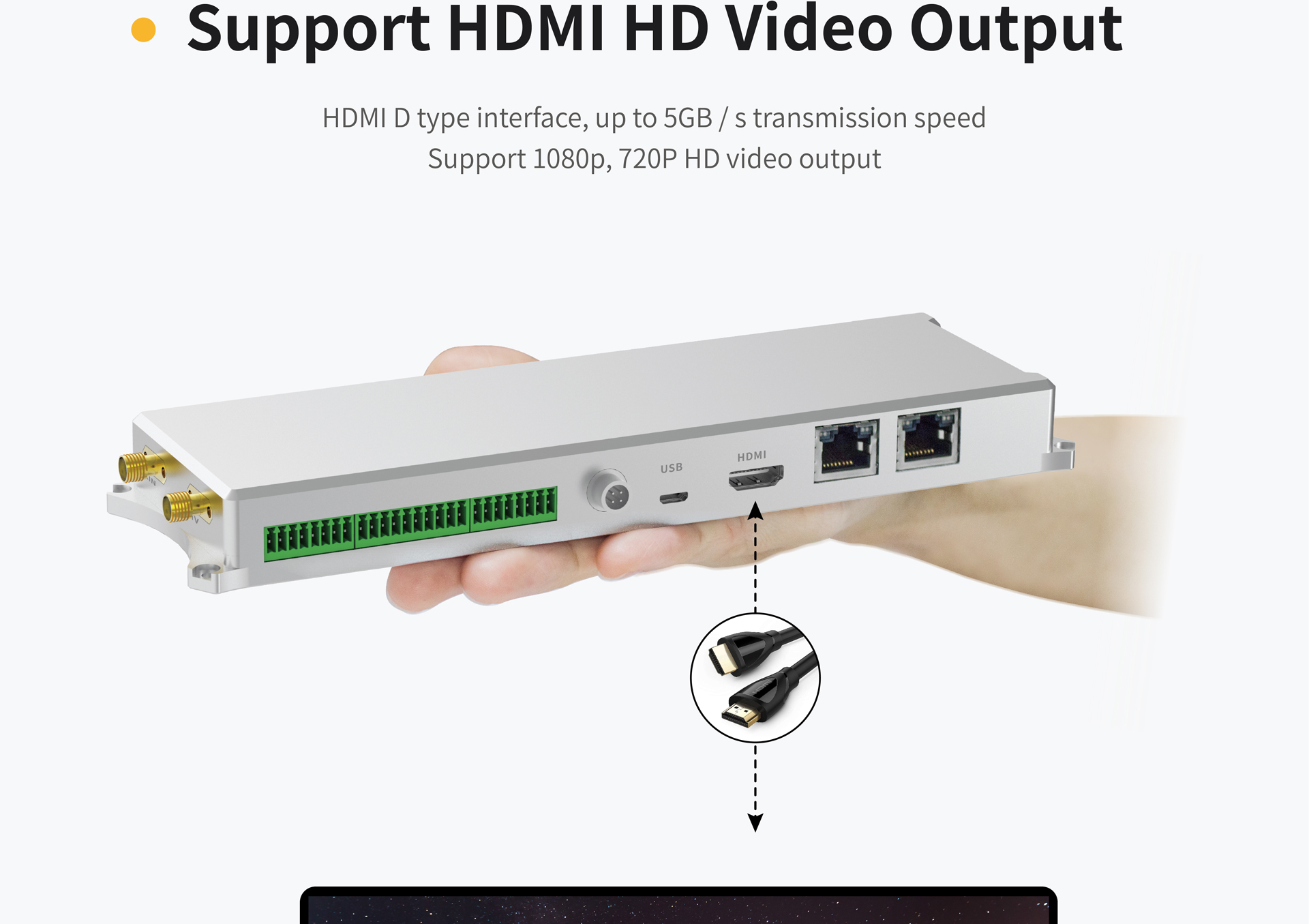

1 HDMI (Type-A) interface, support 2K/60fps output

Supported

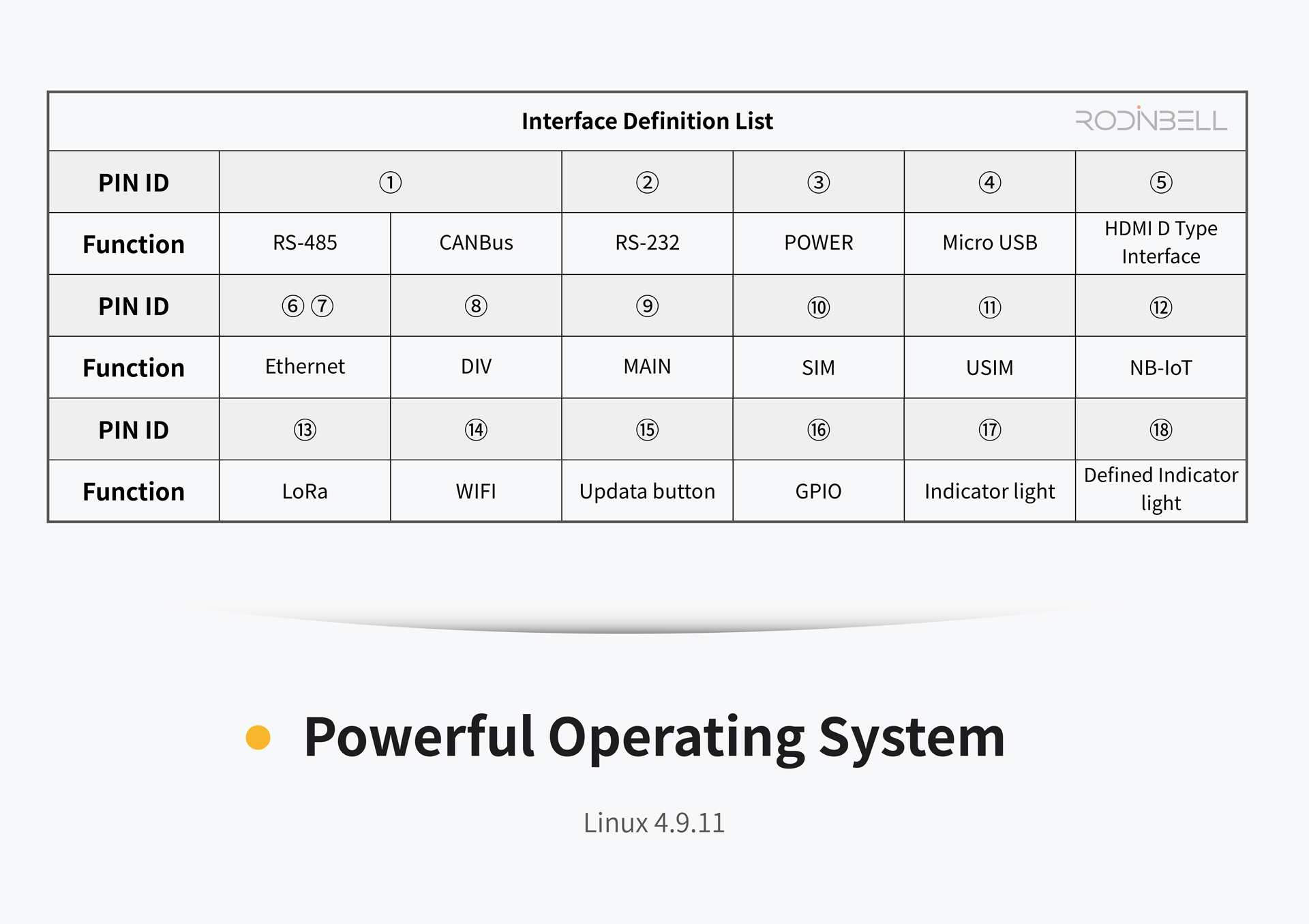

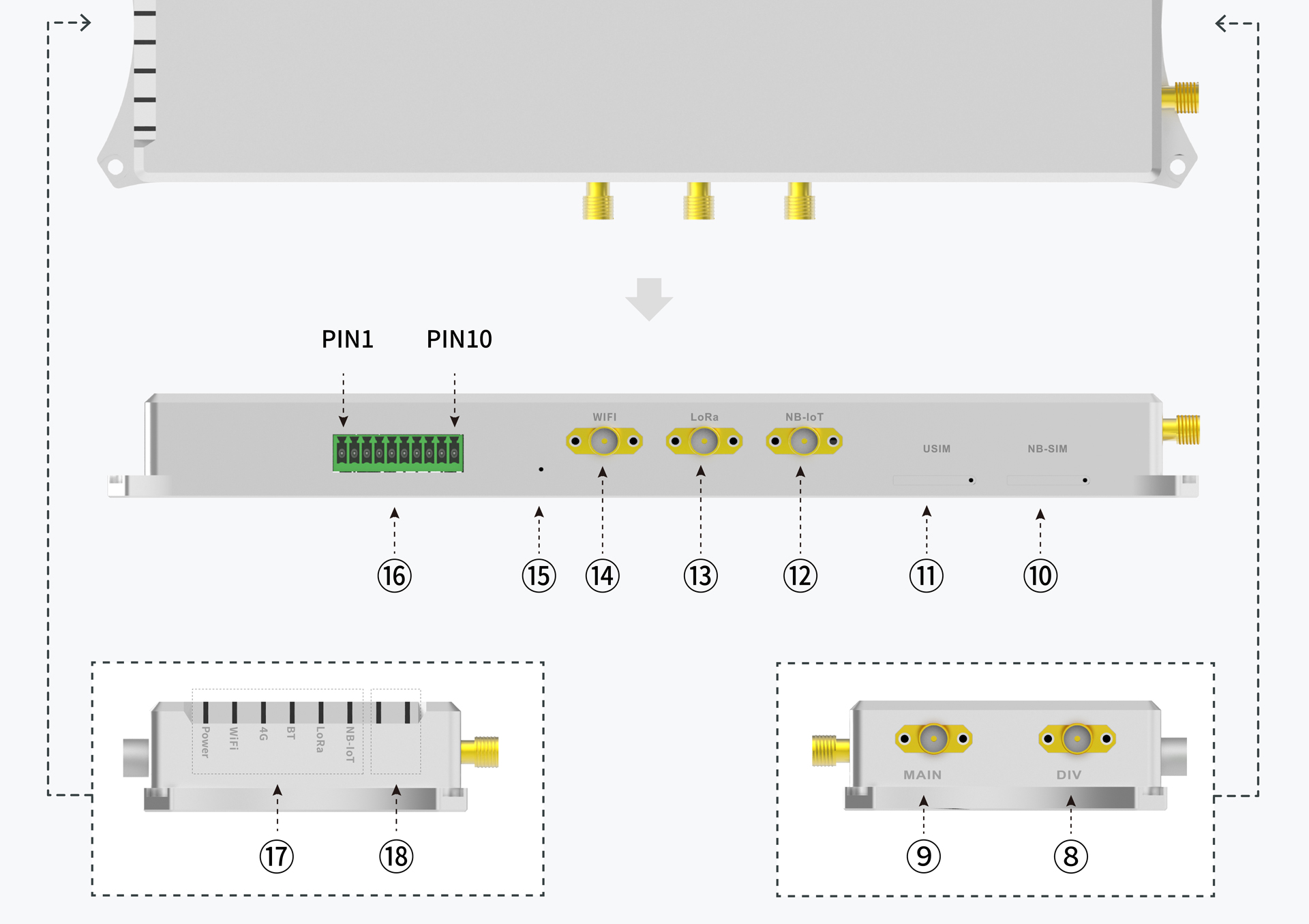

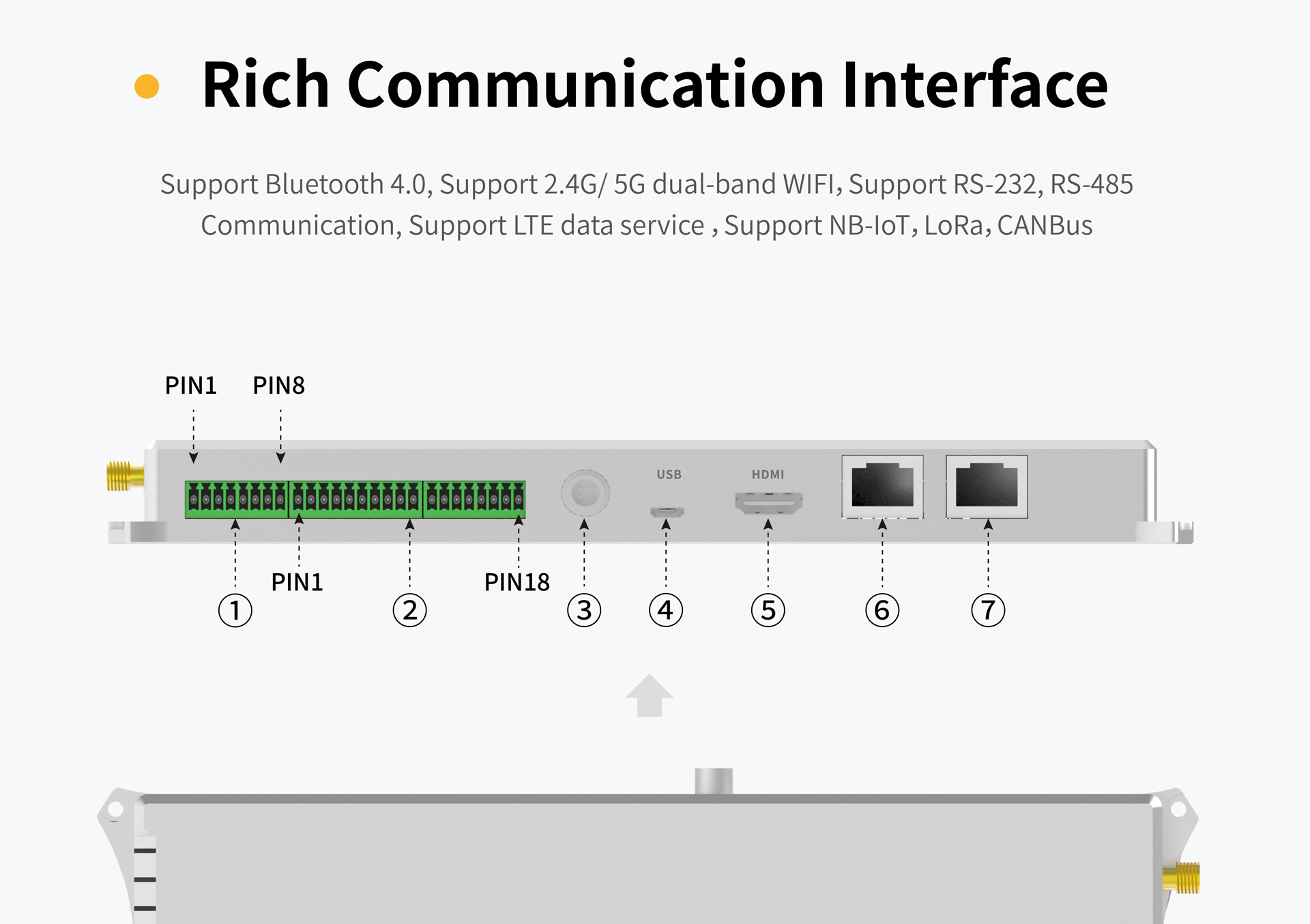

Communication Interfaces

USB

Ethernet

Serial Interface

Industrial bus

WIFI

Bluetooth

NB-IoTOptional

LoRa Optional

LTE Optional

GPIO

1 Micro USB2.0 OTG interface

10/100/450Mbps ethernet

RS-232*3, RS-485

CANBus

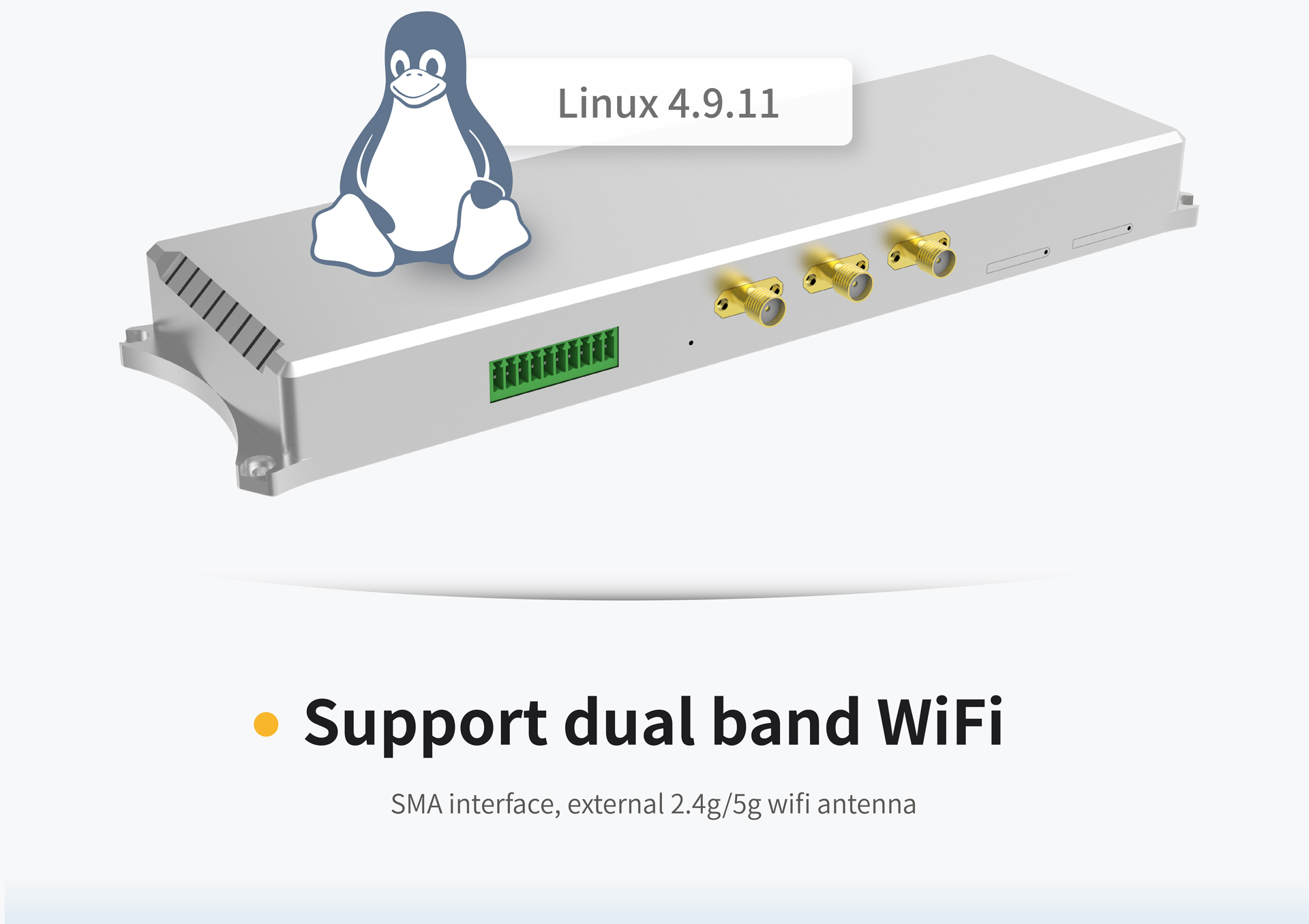

Support 2.4G/5G WIFI

Bluetooth 4.0

Supported

Supports LTE data service

4 Inputs，4 Outputs

Application Environment

Operating Temp

Storage Temp

Humidity

Protection Grade

Heat Dissipation

-20℃~+85℃

-40℃~+85℃

5%RH~95%RH（non-condensing）

IP53

Air cooling
