Input Voltage

Operating Current

Standby Mode Current

Sleep Mode Current

Baud Rate

Ambient Temp Monitoring

DC 4.6V~5.5V

1.2A+/-10%@5V (33dBm Output，25°C)

＜80mA（EN high level）

<100uA（ENlow level）

115200 bps(Default and recommended)，38400 bps

Supported

Serial Port

GPIO

Uart 3.3V

2 Inputs，2 Outputs（3.3V）

Operating Temp

Storage Temp

Humidity

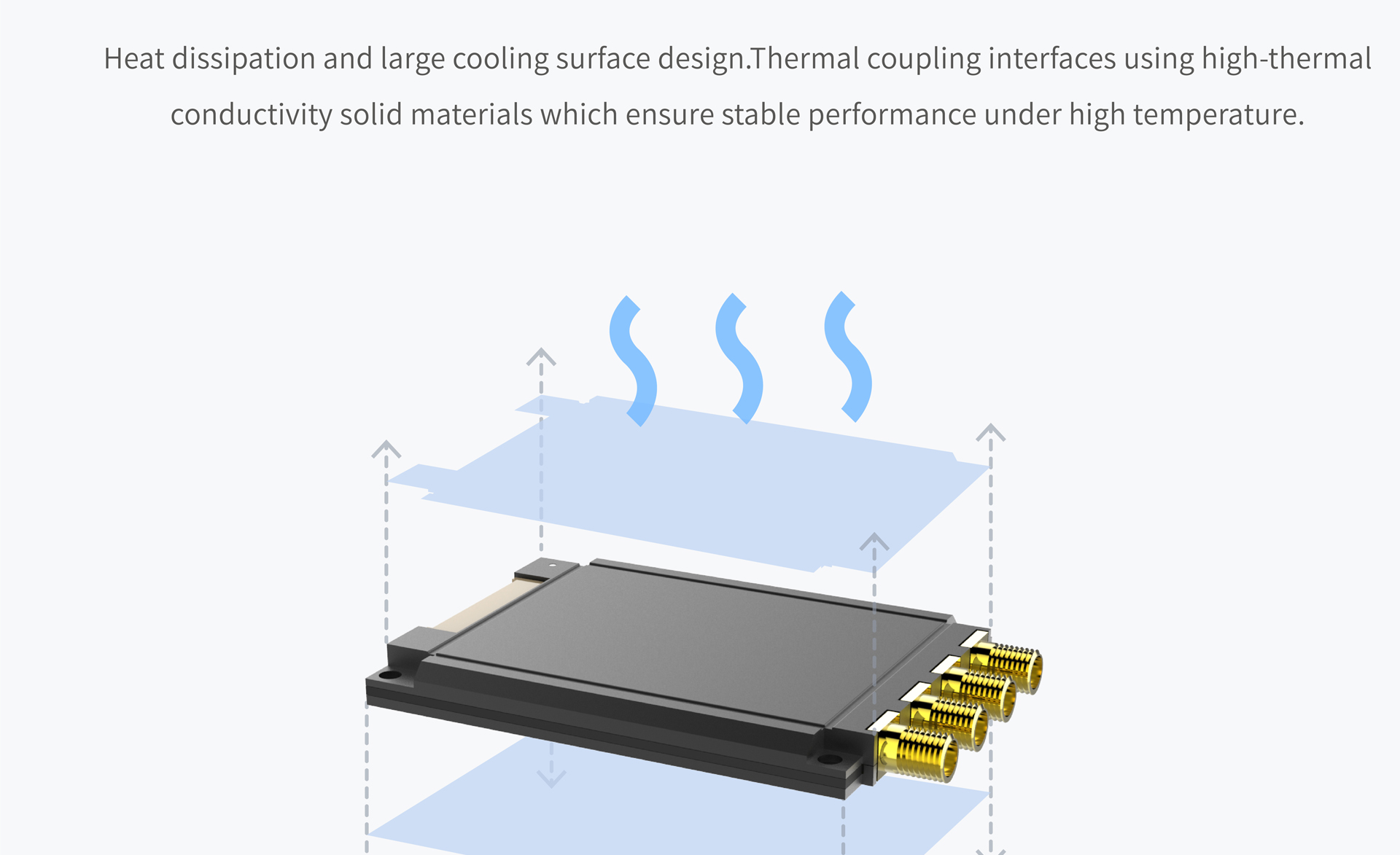

Heat Dissipation

-20℃~+55℃

-40℃~+85℃

5%RH~95%RH（non-condensing）

External radiator

Engine

Protocal

Frequency

Output Power

Peak Inventory Speed

Tag Buffer Mode

Output Power Precision

Output Power Flatness

Sensitivity

Tag RSSI

Antenna Detector

Supported Regions

Based on Impinj Indy R2000

EPC Global UHF Class 1 Gen 2/ ISO 18000-6C/ISO 18000-6B

902~928MHz, 865~868MHzOptional

0~33dbm

＞700pcs/s

500 pcs @ 96 bit EPC

+/- 1dB

+/- 0.2dB

＜-85dBm

Supported

Supported

China, Korea, Malaysia, Japan

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208
