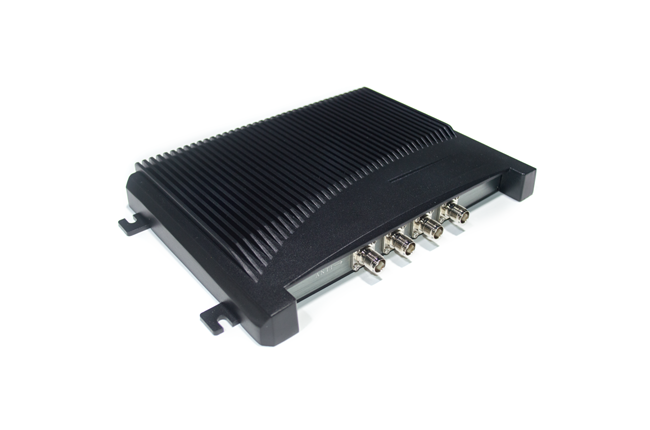

S-8600 4-Port UHF RFID Fixed Reader
DetailsParameterSelectionConsulting
  • Tel:0755-28225530
  • Email:info@rodinbell.com
  • Fax:+86 755 89373021
  • Post:518129
  • Address: Room 905#, Tower B, Xinghe WORLD, Wuhe Avenue, Longgang District, Shenzhen, PRC
Become a partner or an agent?Enter

Mechanical parameters

Body Material

Dimension

Weight

Die-cast aluminum

240*180*28mm

1200g

Electrical Parameters

Input Voltage

Operating Current

Standby Mode Current

Sleep Mode Current

Baud rate

Ambient Tep Monitoring

DC 12V~18V

700mA+/-5%@DC 12V Input

<80mA

<100uA

115200 bps(Default and recommended), 38400 bps

Supported

Communication Interface

Ethernet

Serial port

GPIO

10/100Mbps Ethernet

1 RS232 interface

2 Inputs,2 Outputs

Application Environment

Operating Temp

Storage Temp

Humidity

Protection Grade

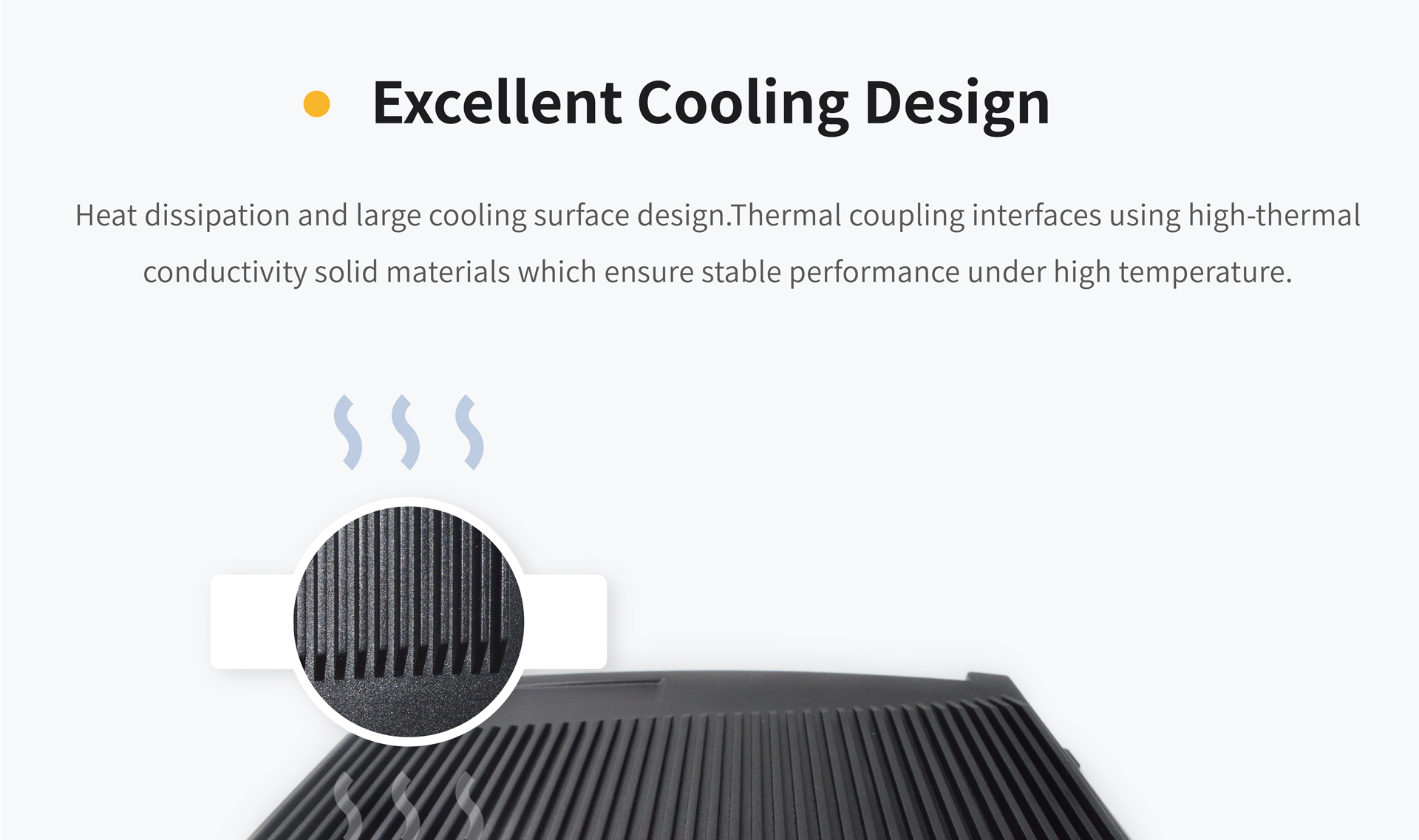

Heat Dissipation

-20℃~+85℃

-40℃~+85℃

5%RH~95%RH(non-condensing)

IP53

Air cooling

UHF

Engine

Protocol

Frequency

Output Power

Peak Inventory Speed

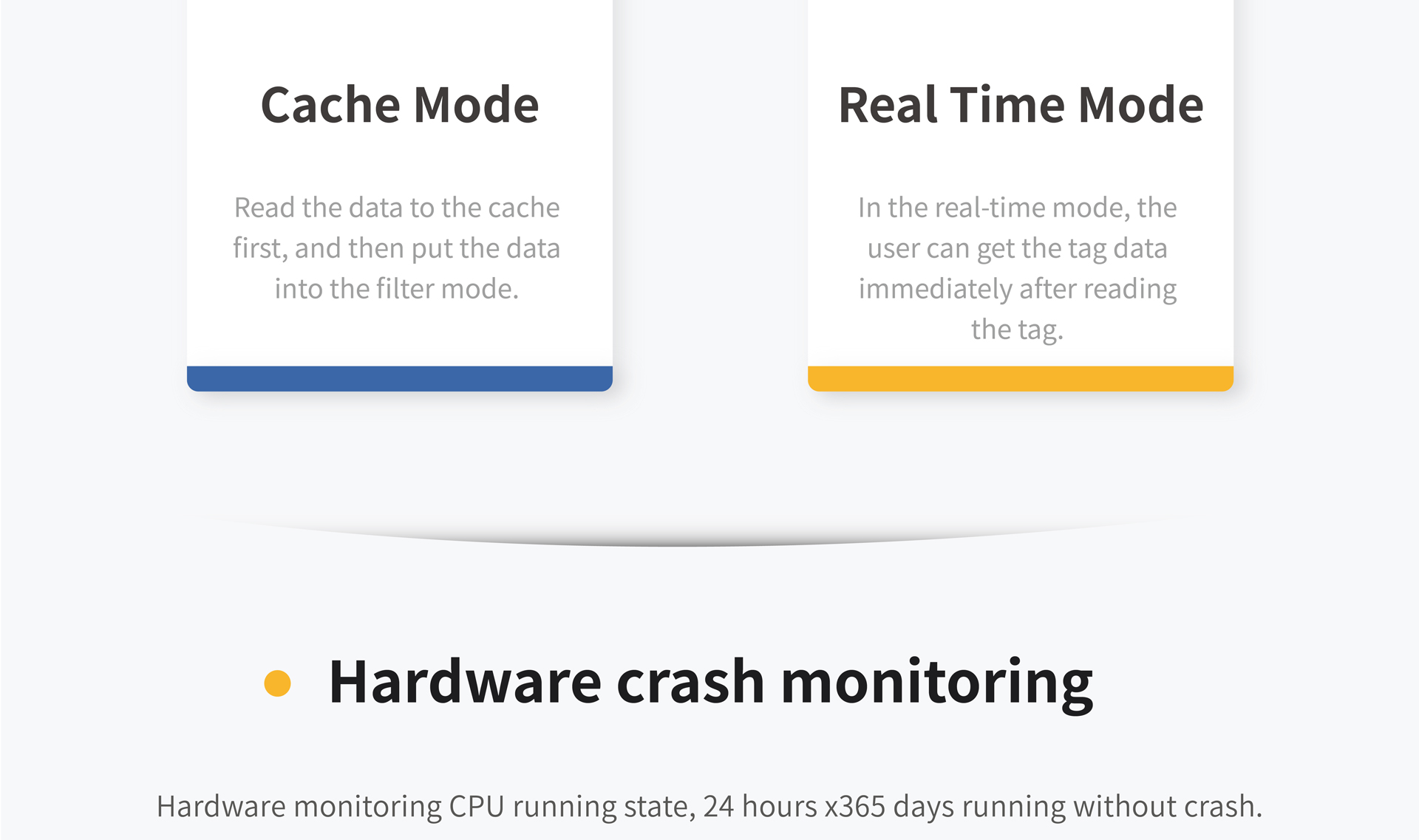

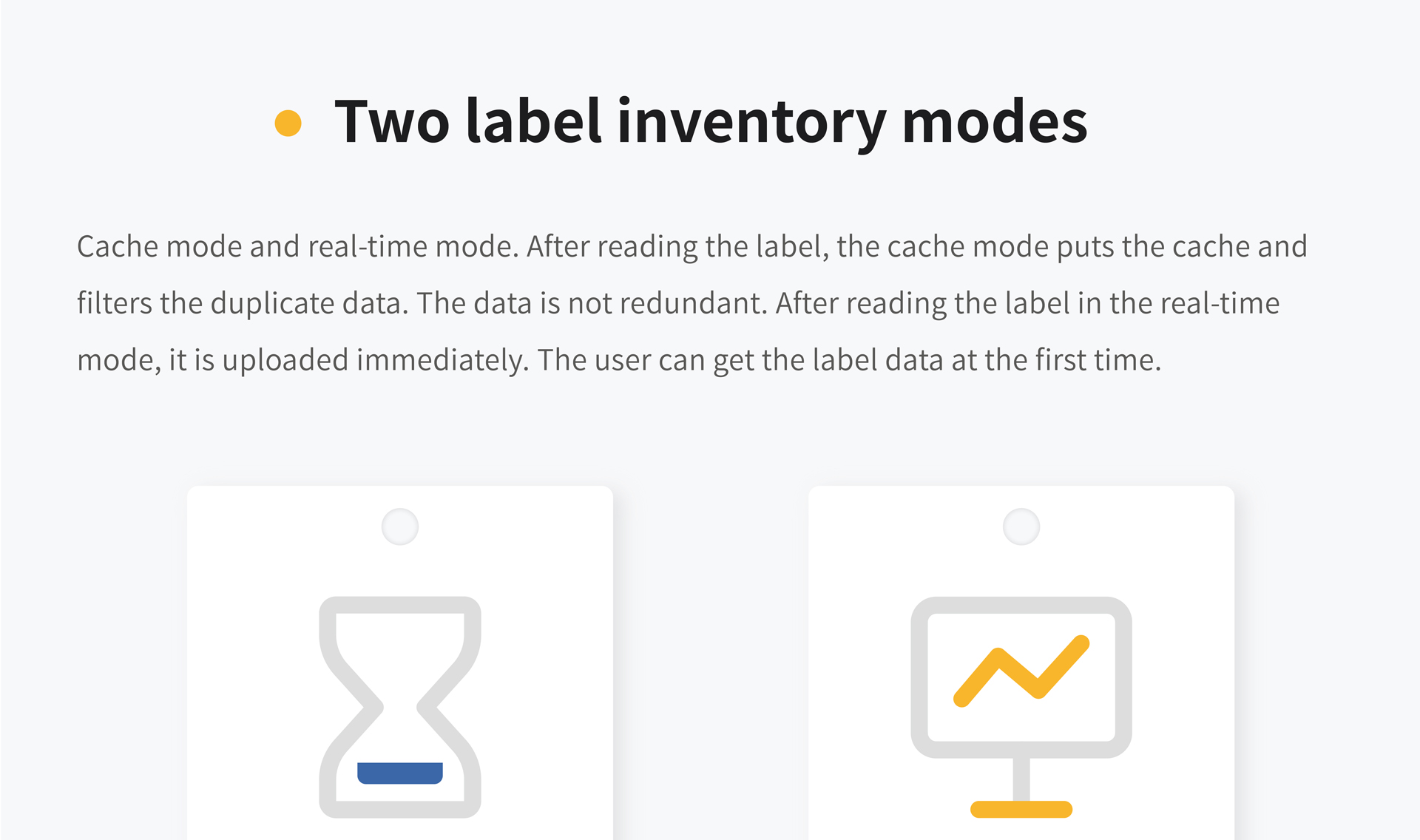

Tag Buffer Mode

Output Power Precision

Output Power Flatness

Sensitivity

Tag RSSI

Antenna Detector

Supported Regions



Based on Impinj Indy R2000

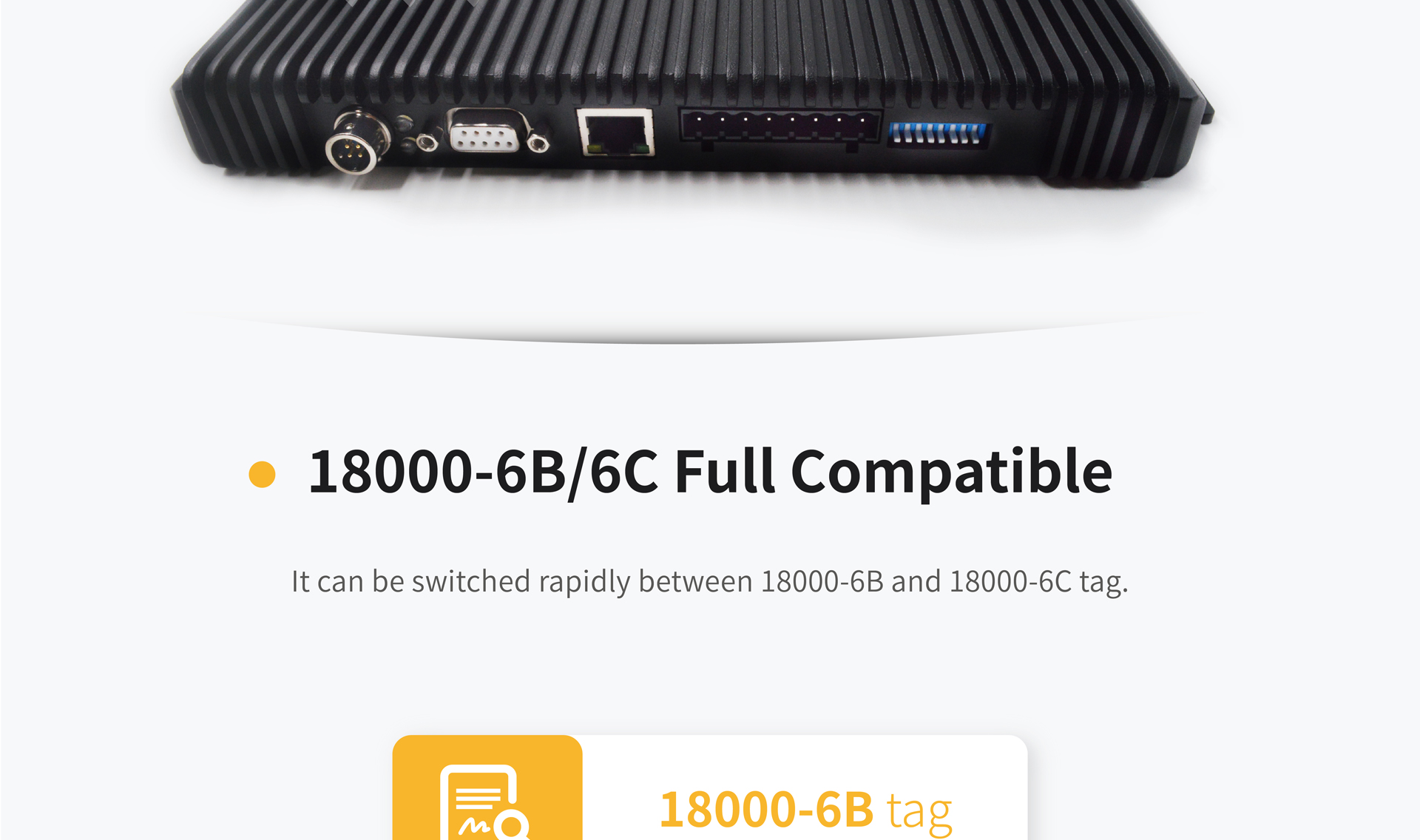

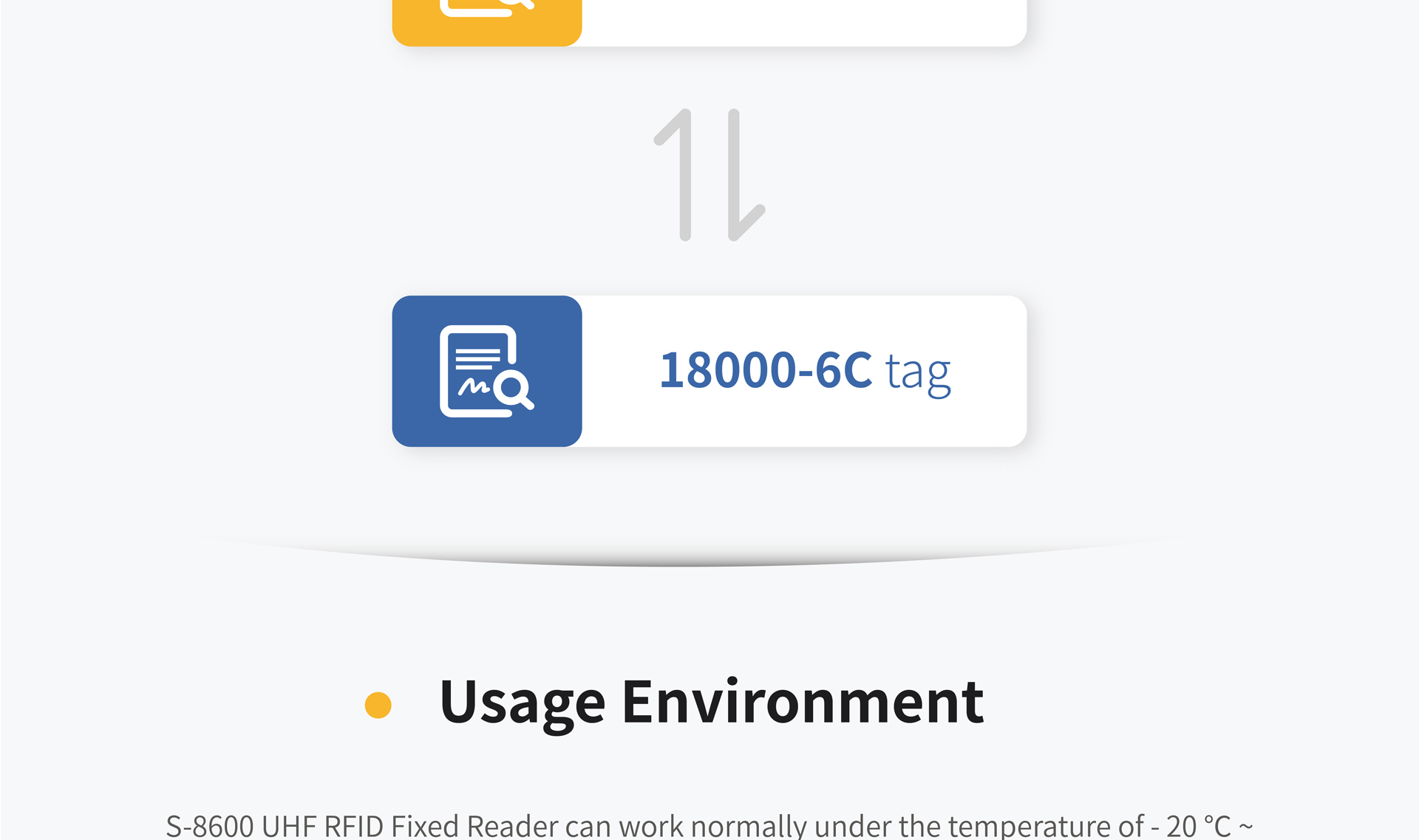

EPC Global UHF Class 1 Gen 2/ ISO 18000-6C/ISO 18000-6B

902~928MHz, 865~868MHzOptional

0~33dbm

>700pcs/s

500 pcs @ 96 bit EPC

+/- 1dB

+/- 0.2dB

<-85dBm

Supported

Supported

China, Korea, Malaysia, Japan

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208
