Spider 8000 Pro
8-Port UHF RFID Fixed Reader
High integration, makes application easier.
Product
  • Clothing
  • Retail
  • Personnel
  • Library
  • Livestock
  • Warehouse

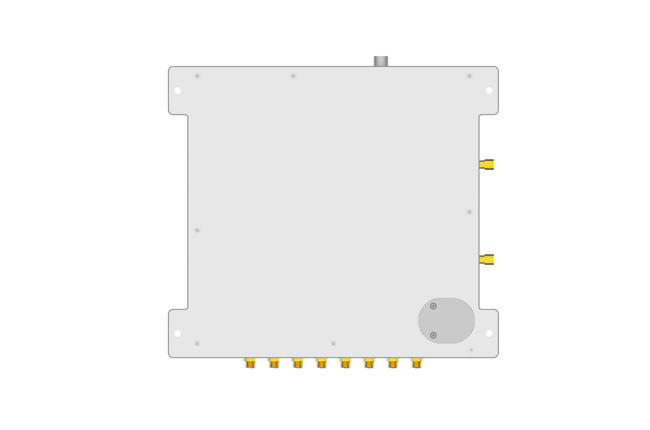

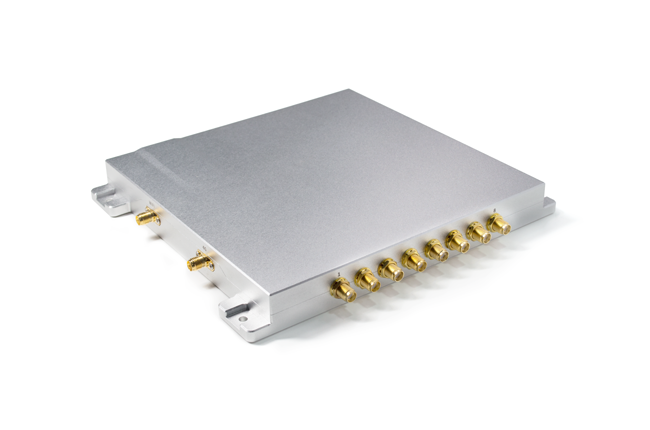

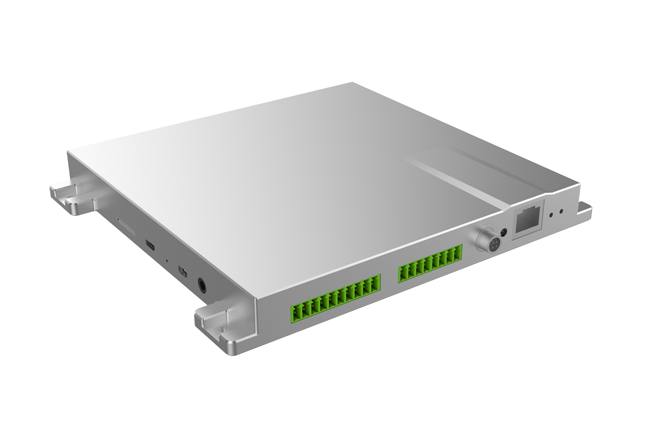

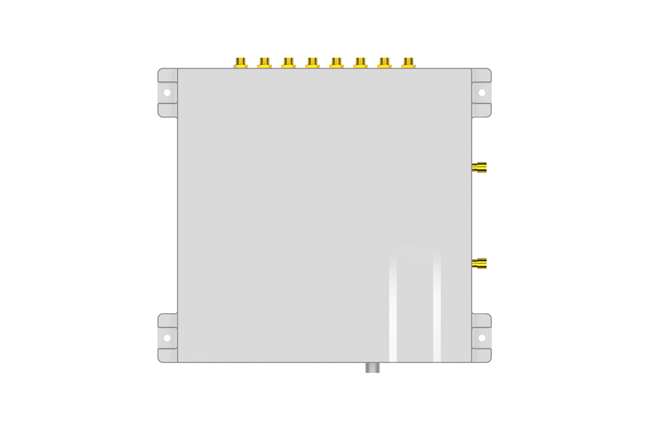

Spider 8000 Pro 8-Port UHF RFID Fixed Reader
DetailsParameterSelectionConsulting
  • Tel:0755-28225530
  • Email:info@rodinbell.com
  • Fax:+86 755 89373021
  • Post:518129
  • Address: Room 905#, Tower B, Xinghe WORLD, Wuhe Avenue, Longgang District, Shenzhen, PRC
Become a partner or an agent?Enter

Mechanical parameters

Mechanical

Dimensions

Weight

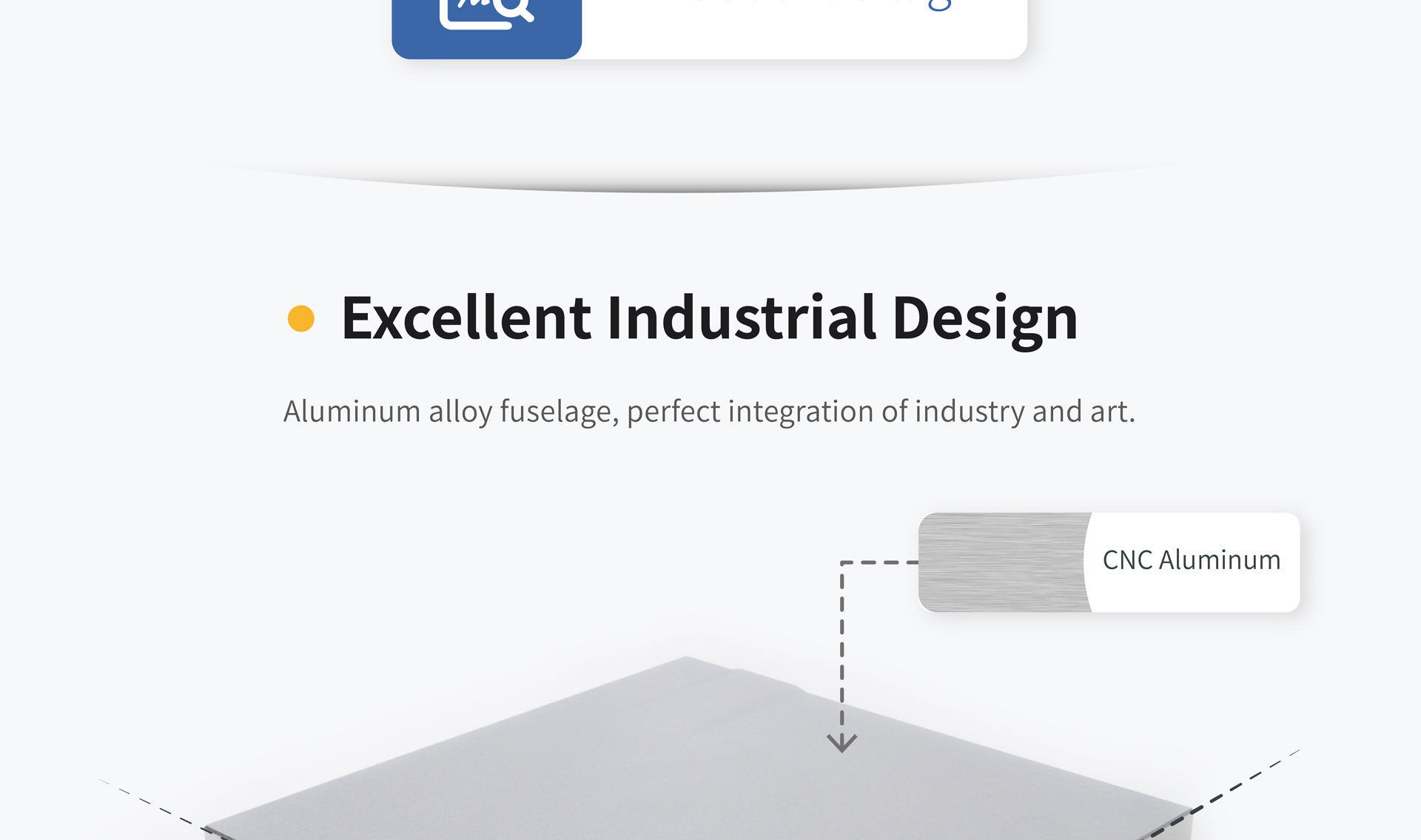

CNC Aluminum

181*160*21mm

760g

System Characteristics

Operating System

CPU

GPU

RAM+ROM

Input Voltage

Operating Current

POEOptional

Gyroscope

HDMI

Audio

PSAM

Ambient Temp Monitoring

Online Upgrade

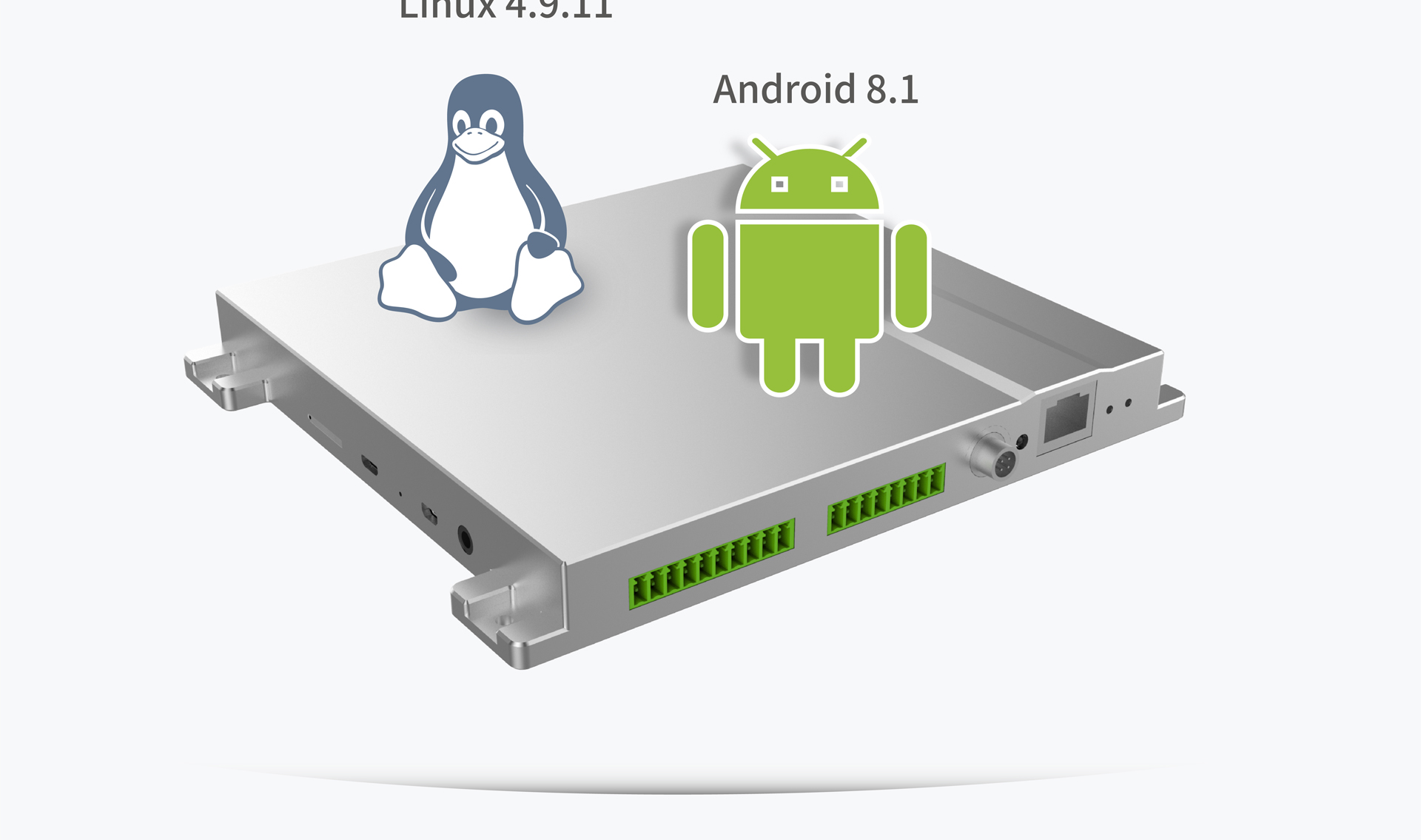

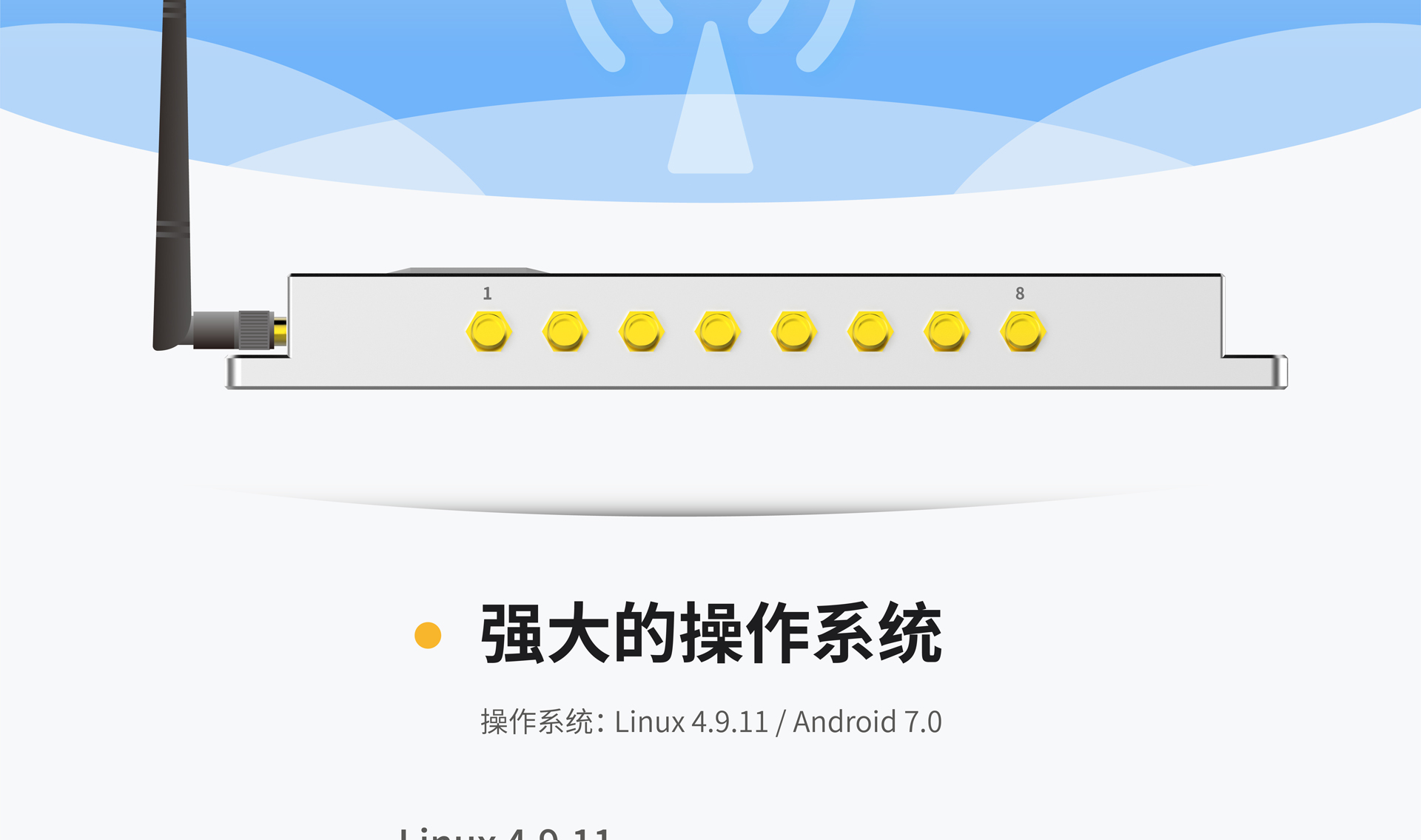

Linux 4.9.11/Android 7.0

Freescale IMX6Q(Quad)

Vivante GC2000/Vivante GC355/Vivante GC320

2G+16G,4G+32GOptional

DC 9V~24V

1.5A+/-5%@DC 12V Input

Maximum 25W, support IEEE 802.3 protocol

Six axis(  Acdeleration+Gyroscope+Euler Point )

1 HDMI2.0 (Type-A) interface,Supports 2K/ 60fps output

1 Stereo audio output jack

1 Micro PSAM slot

Supported

Supported

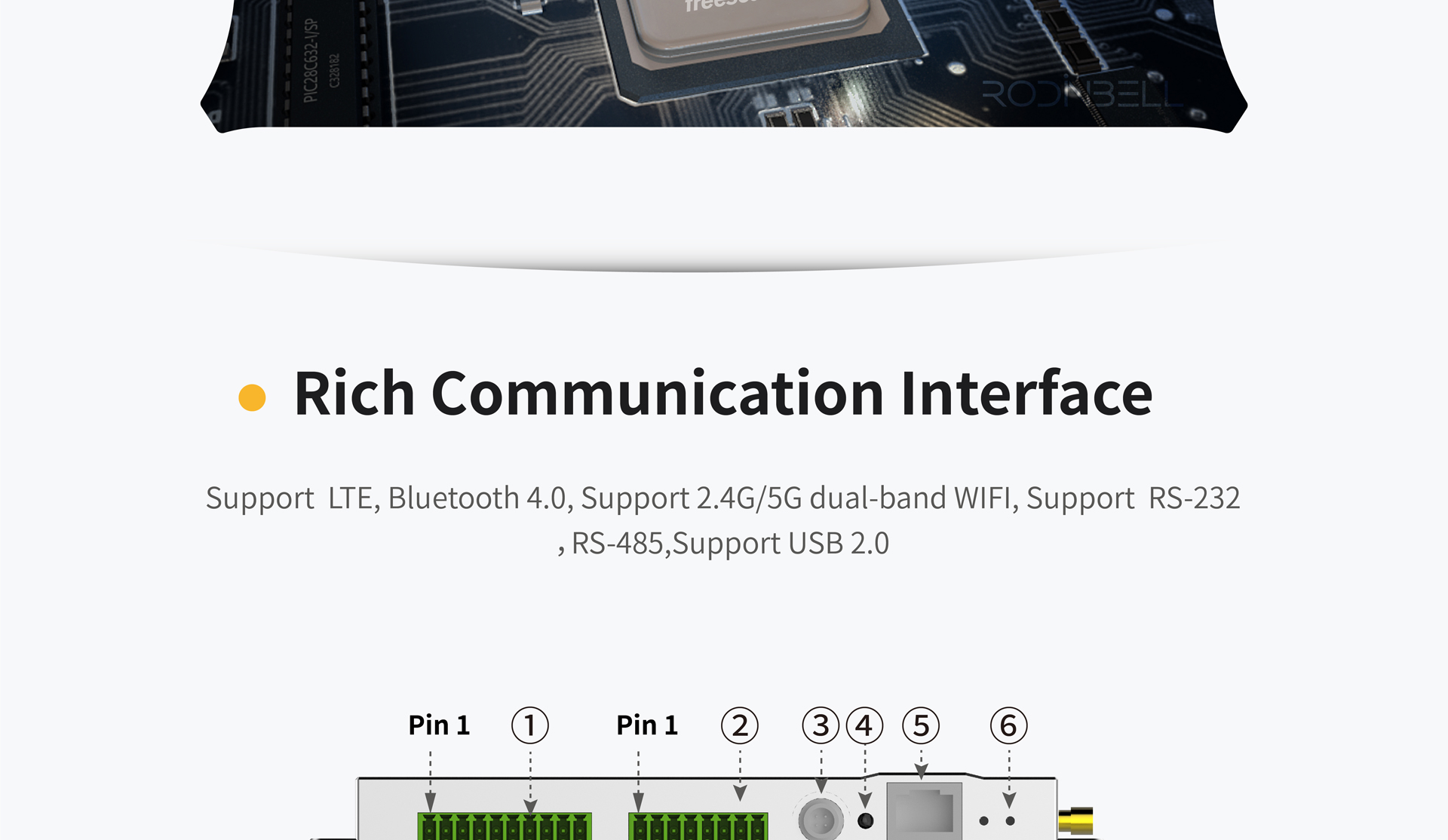

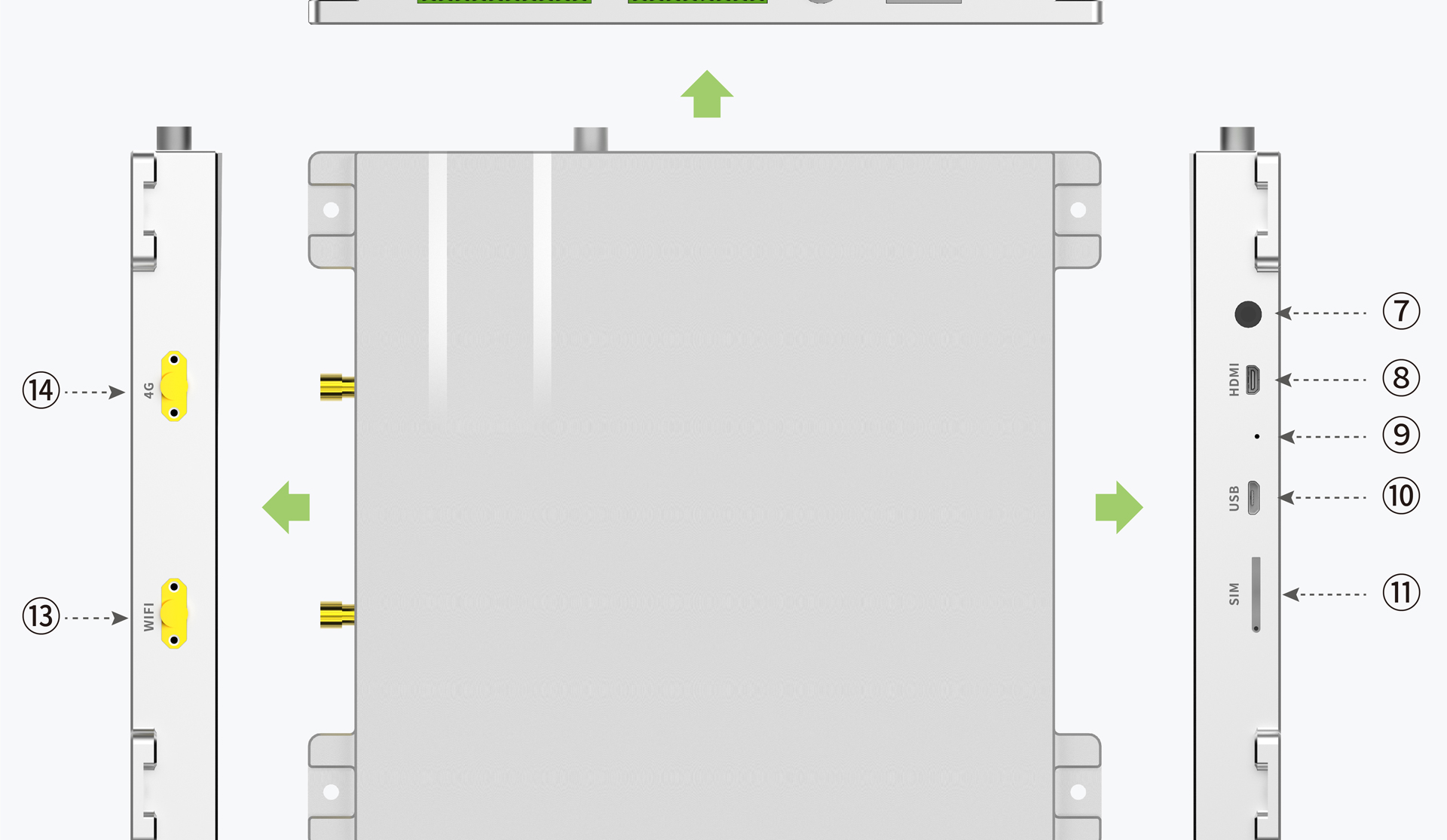

Communication Mode

USB

Ethernet

Serial Interface

WIFI

Bluetooth

LTEOptional

GPIO

1 USB2.0 OTG interface

10/100/450Mbps ethernet

1 RS232 interfaces, 1 RS485 interface

Supports 2.4G/ 5G WIFI

Bluetooth 4.0

Supports LTE data service

4 Inputs,4 Outputs

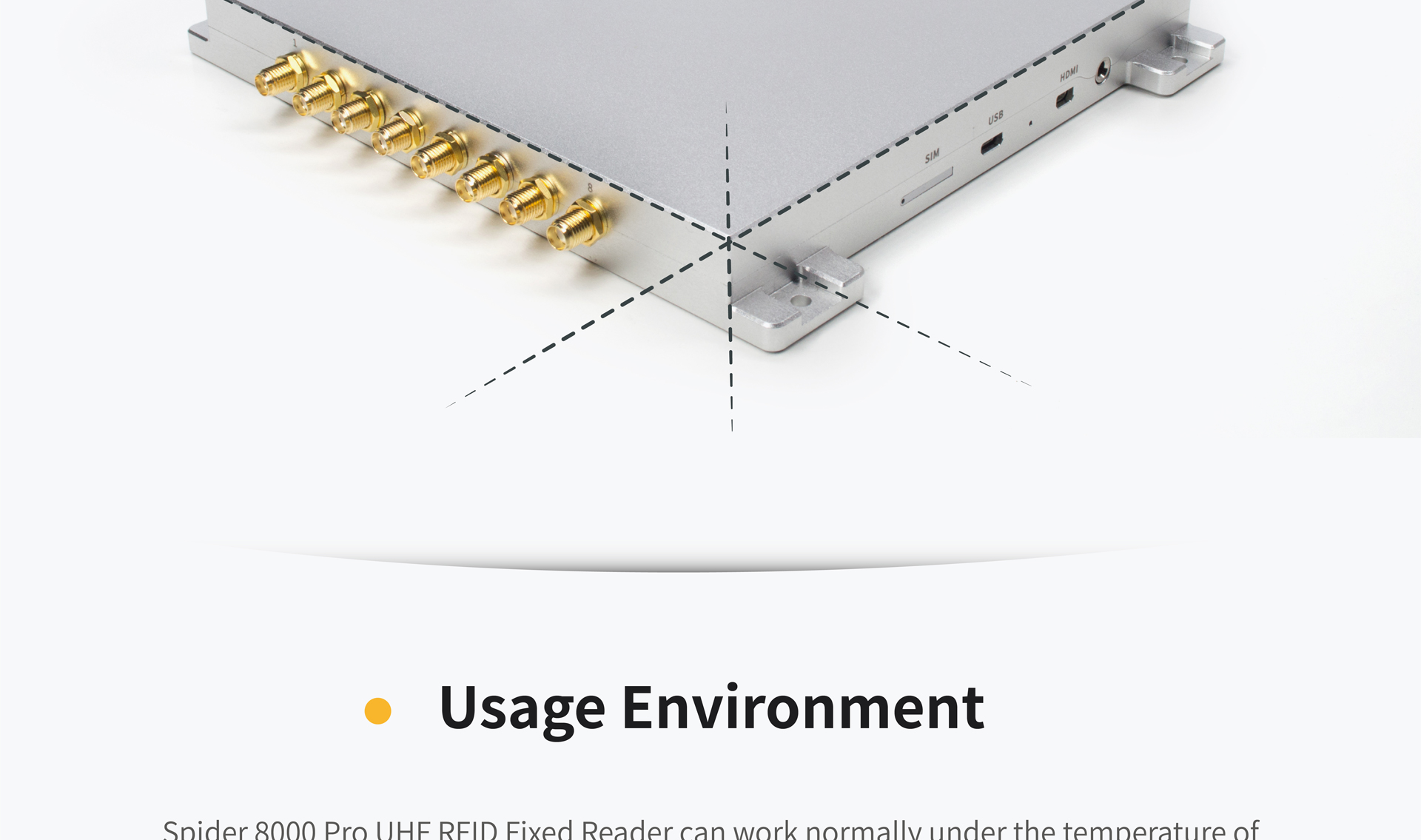

Application Environment

Operating Temp

Storage Temp

Humidity

Protection Grade

Heat Dissipation

-20℃~+85℃

-40℃~+85℃

5%RH~95%RH(non-condensing)

IP53

Air cooling

Data Collections

UHF RFID

Engine

Protocol

Frequency

Output Power

Peak Inventory Speed

Output Power Precision

Output Power Flatness

Sensitivity

Tag RSSI

Antenna Detector

Supported Regions




Based on Impinj Indy R2000

EPC Global UHF Class 1 Gen 2/ ISO 18000-6C/ISO 18000-6B

902~928MHz, 865~868MHzOptional

0~31dbm

>500pcs/s

+/- 1dB

+/- 0.2dB

<-85dBm

Supported

Supported

China, Korea, Malaysia, Japan

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208
