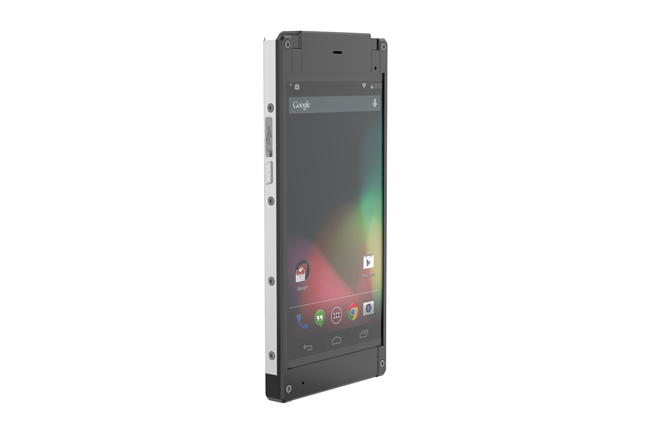

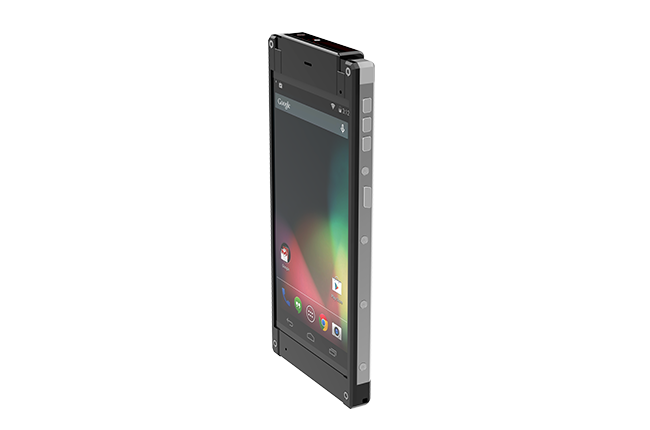

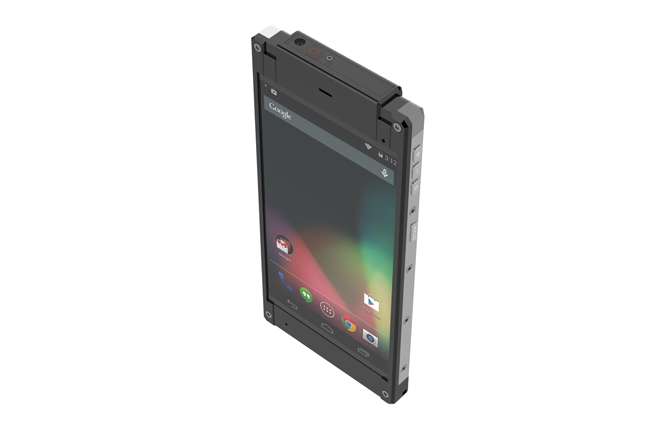

Lynx 20
Handheld Data Terminal
Simplicity wins again.
Product
  • Inventory management
  • Power patrol inspection
  • Personnel management
  • Livestock management
  • Accessories tracking
  • Clothing retail management

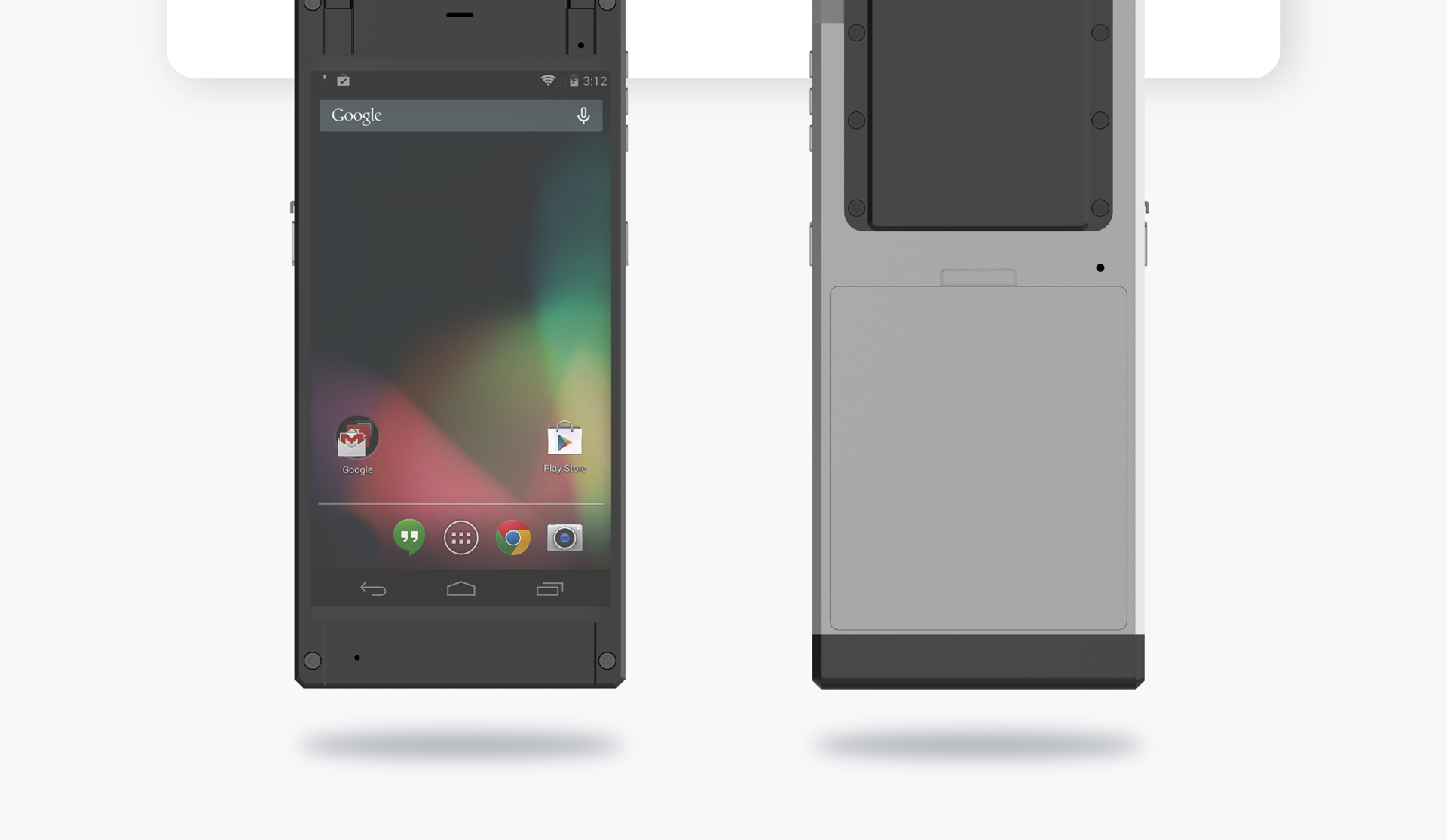

Lynx 20 Handheld Data Terminal
DetailsParameterSelectionConsulting
  • Tel:0755-28225530
  • Email:info@rodinbell.com
  • Fax:+86 755 89373021
  • Post:518129
  • Address: Room 905#, Tower B, Xinghe WORLD, Wuhe Avenue, Longgang District, Shenzhen, PRC
Become a partner or an agent?Enter

Mechanical Parameters

Material

Dimensions

Weight

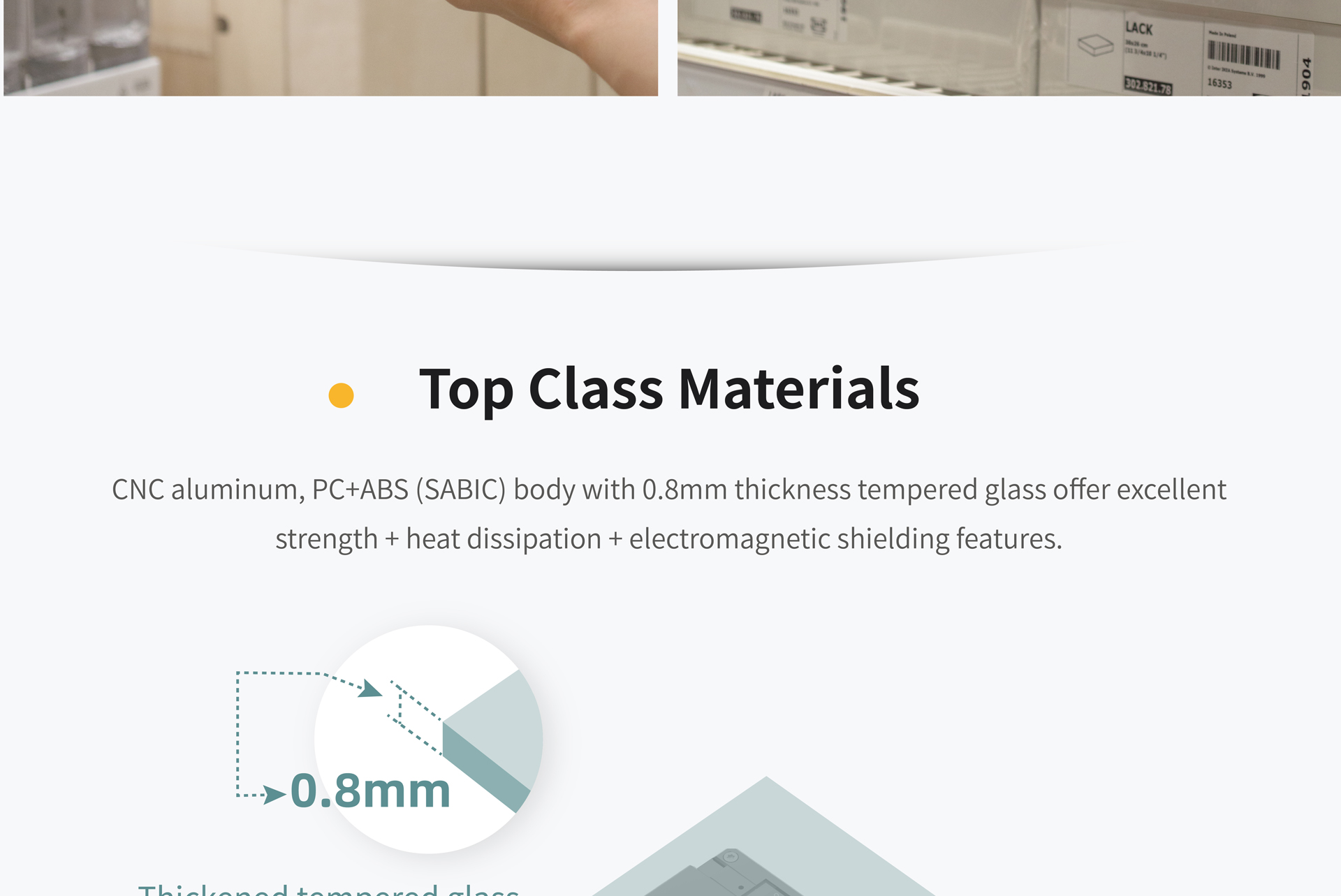

AiAviation Aluminum+PC(SABIC)

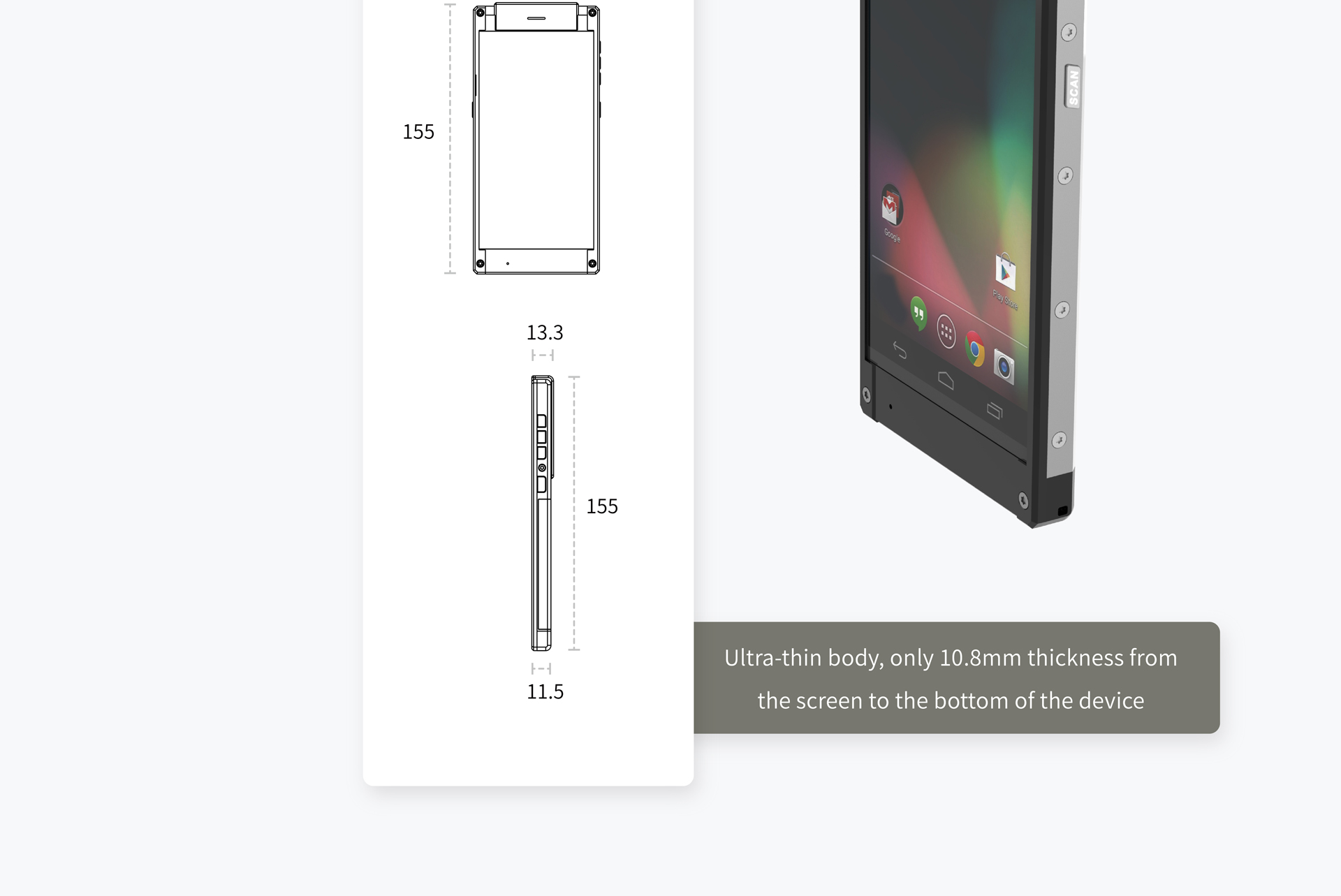

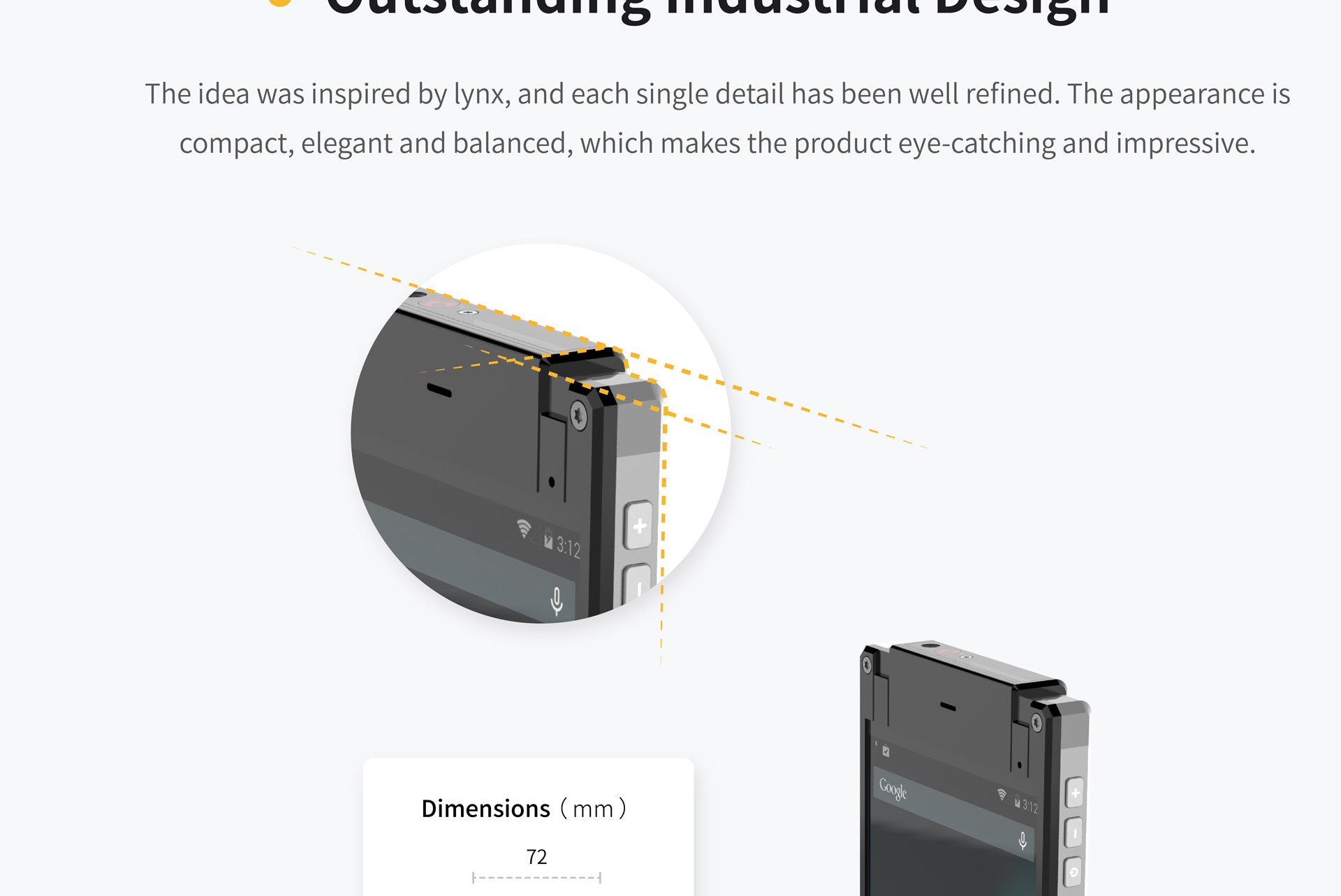

155*72*13.3mm

260g(Including battery/standard)

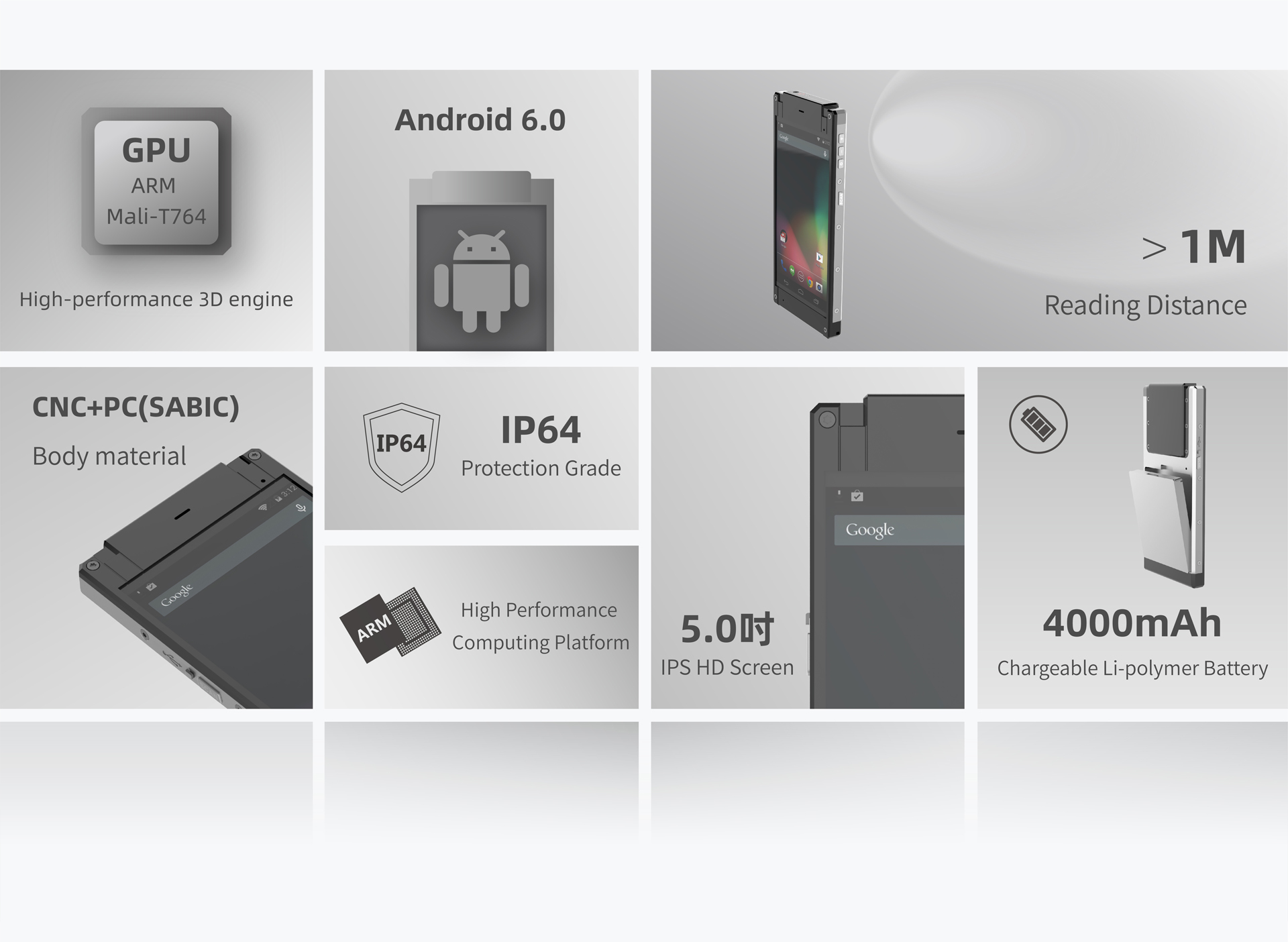

System Characteristics

Operating System

CPU

GPU

RAM+ROM

LCD

Touch Screen


Hotswapping Battery

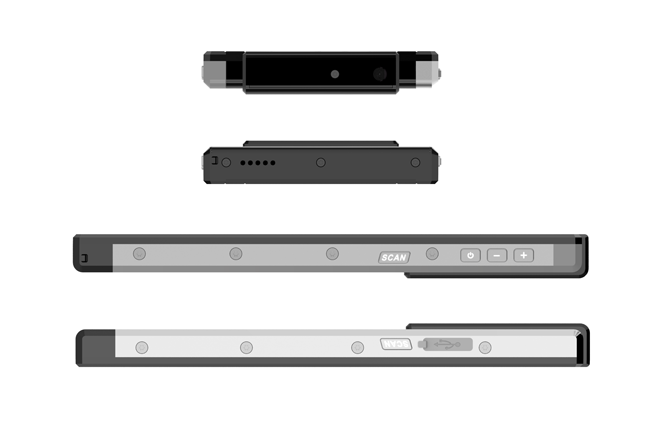

Buttons




Power

Card Slots

USB Interface

Speaker

Vibration

Charge Indicator

Android 6.0

Quad-core Cortex-A17 / 1.8 GHz

ARM Mali-T764/High performance 3D engine

2G+32G,4G+64GOptional

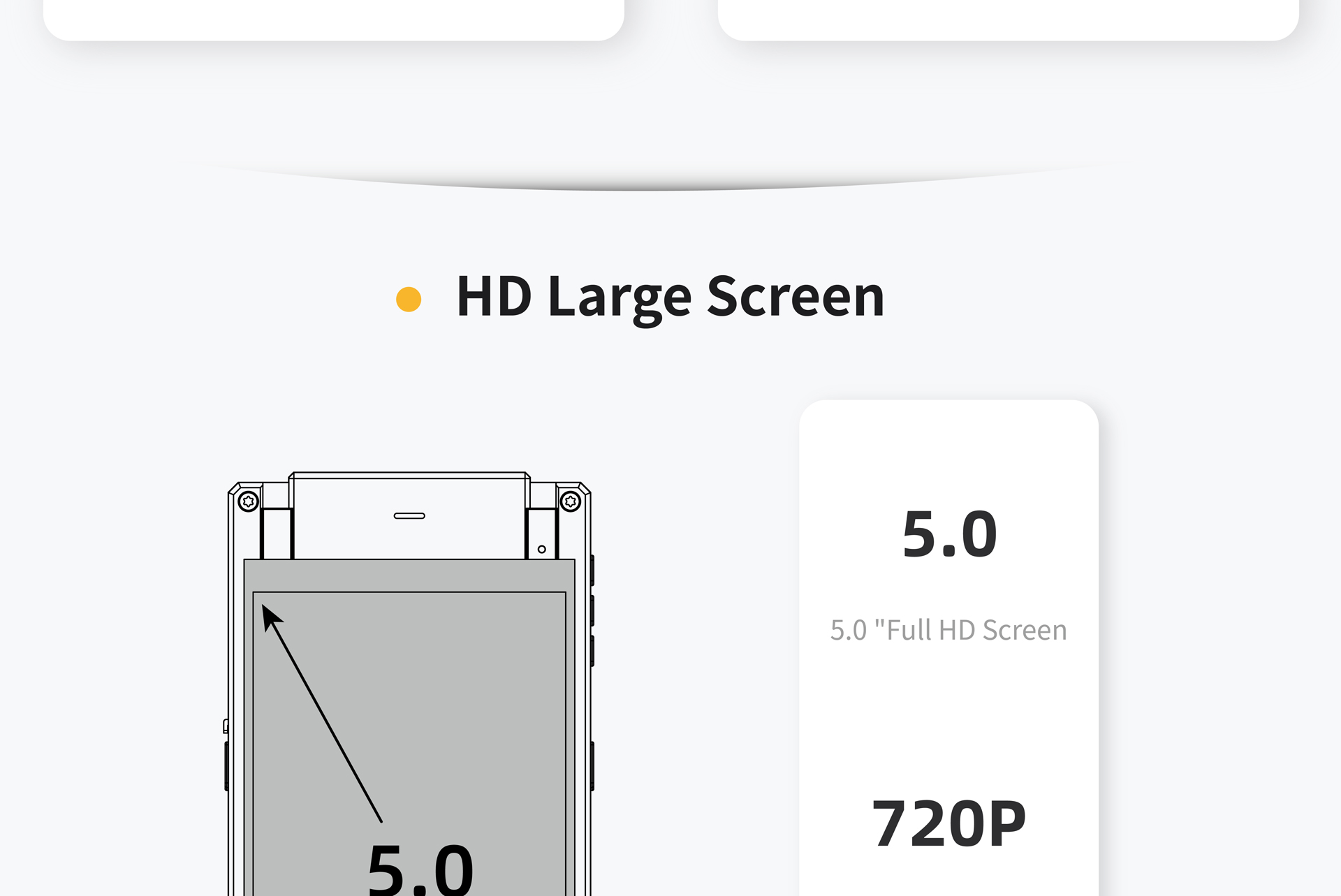

5.0 inches/ 1280*720 / IPS / 180°view angle

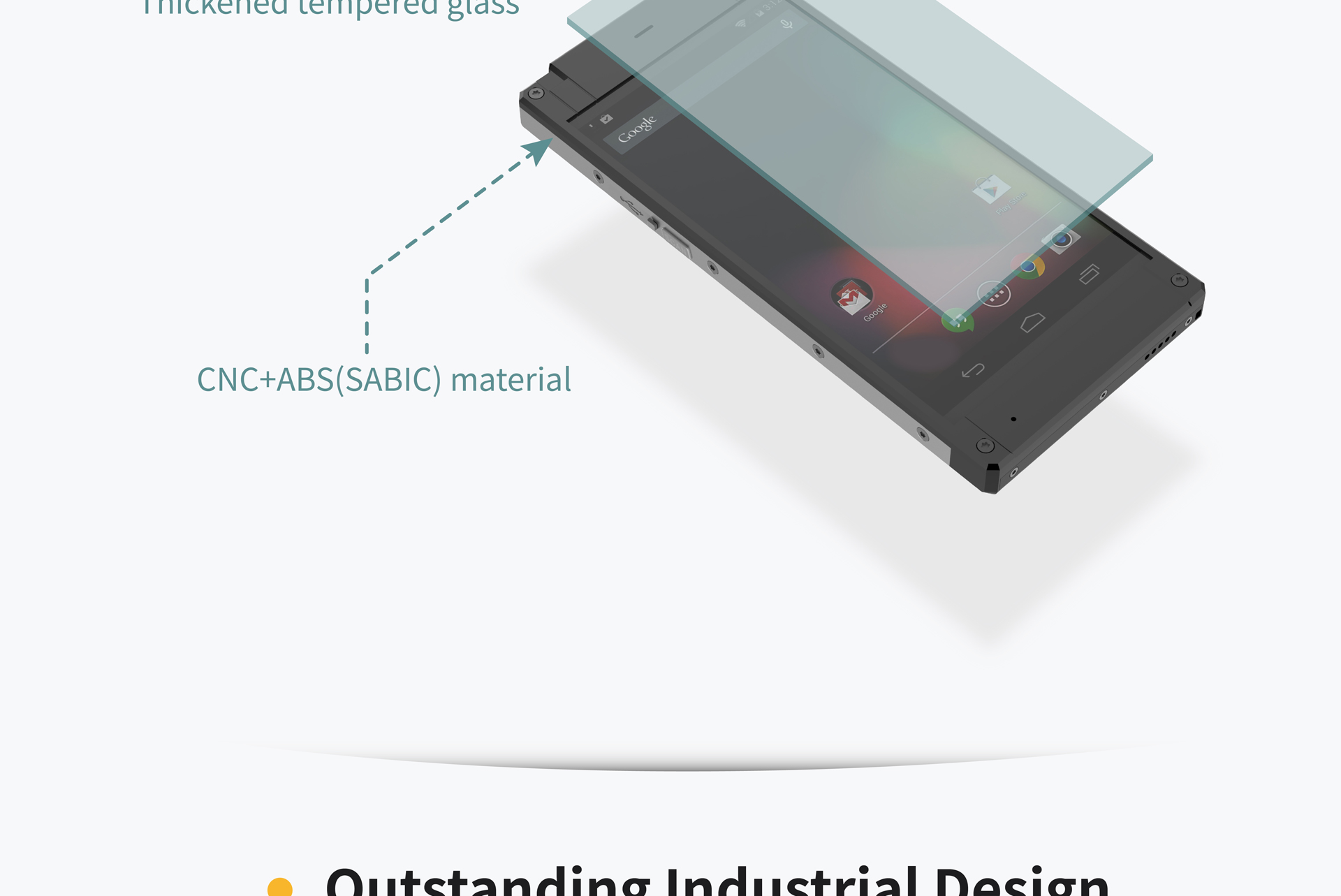

0.8 mm thickness tempered glass/ 5- dot touch /

operable with gloves

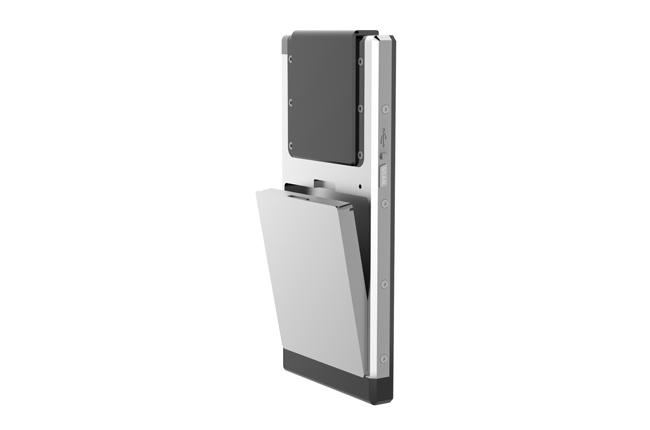

Magnetic style hotswapping battery system

Power / Volume:3 ALPS buttons/ Operating force 2.5N /

Operating life 1 million cycles

Scan Trigger:2OMRON Button/action force1.27N/

Operating life 1 million cycles

4000mAh chargeable Ii-polymer battery

Micro SIM card slot*1

Micro USB/MOLEX connector /Operating life 10,000 cycles

Supported

Supported

Bicolor LED

Wireless Communications

WIFI

Bluetooth

4G

IEEE802.11b / g / n

Bluetooth 4.0

SupportedOptional

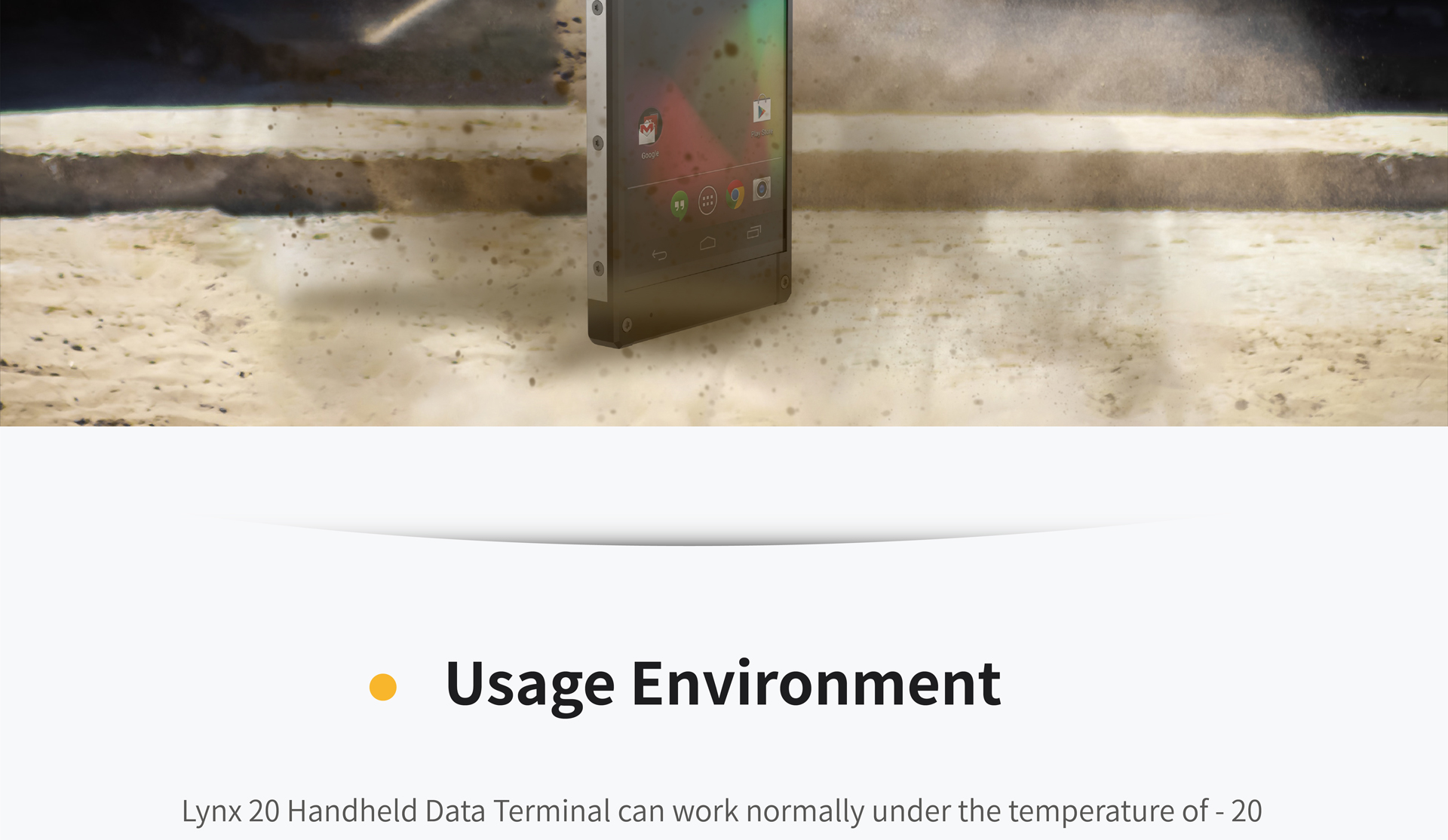

Application Environment

Operating Temp

Storage Temp

Humidity

Protection Grade

Safety Drop Height

-20℃~+60℃

-30℃~+70℃

5%RH~95%RH (non -condensing)

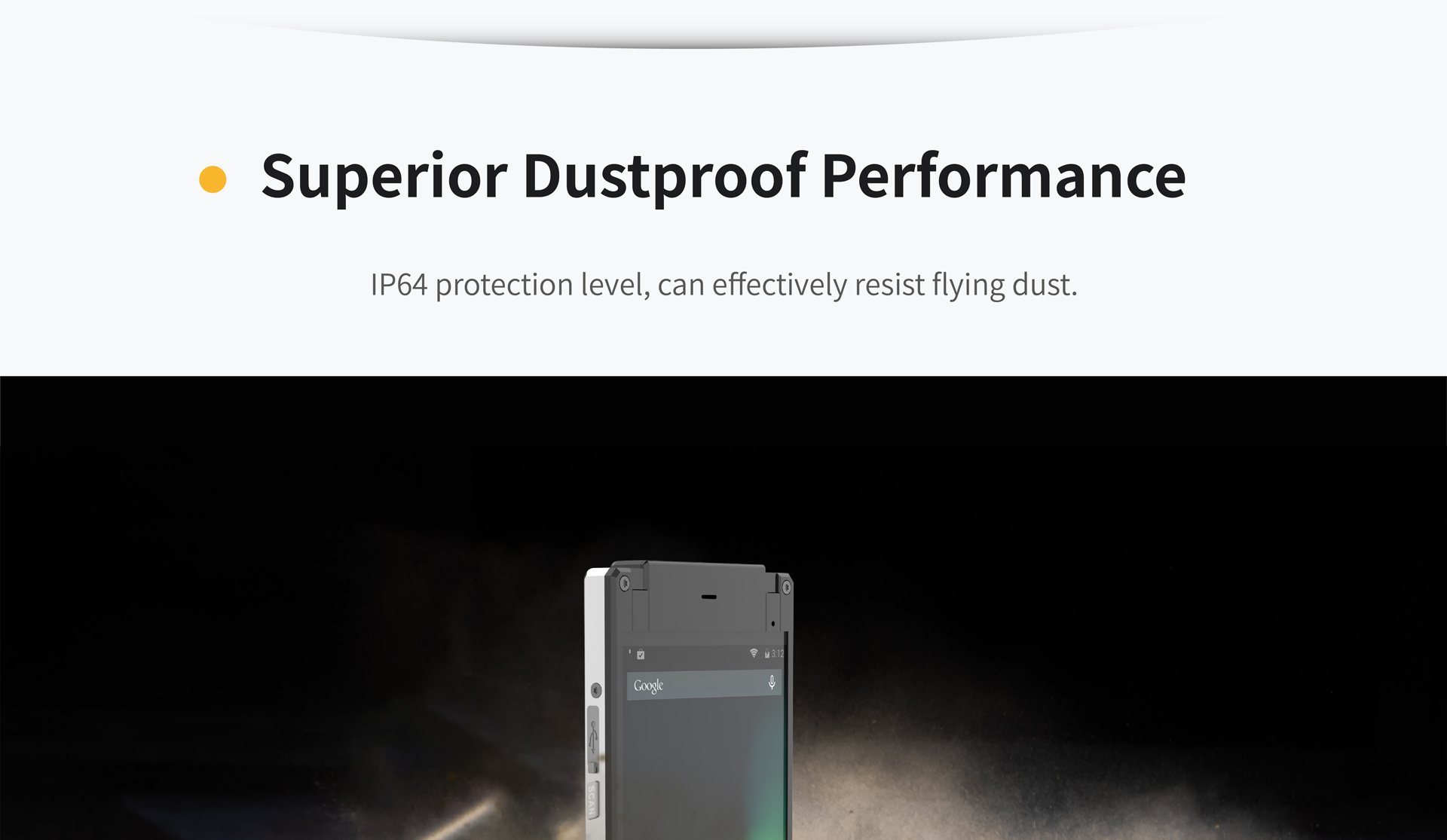

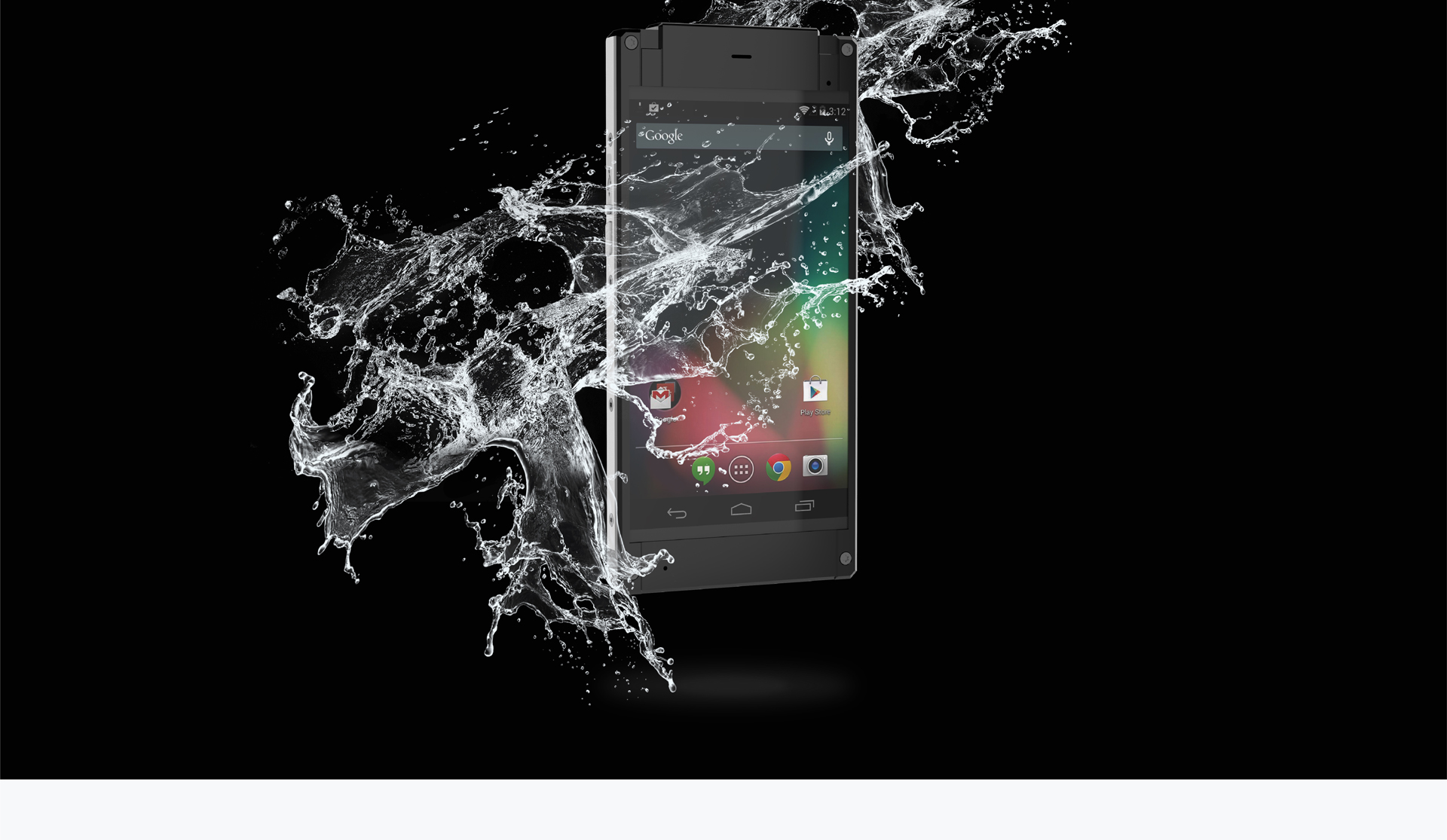

IP64

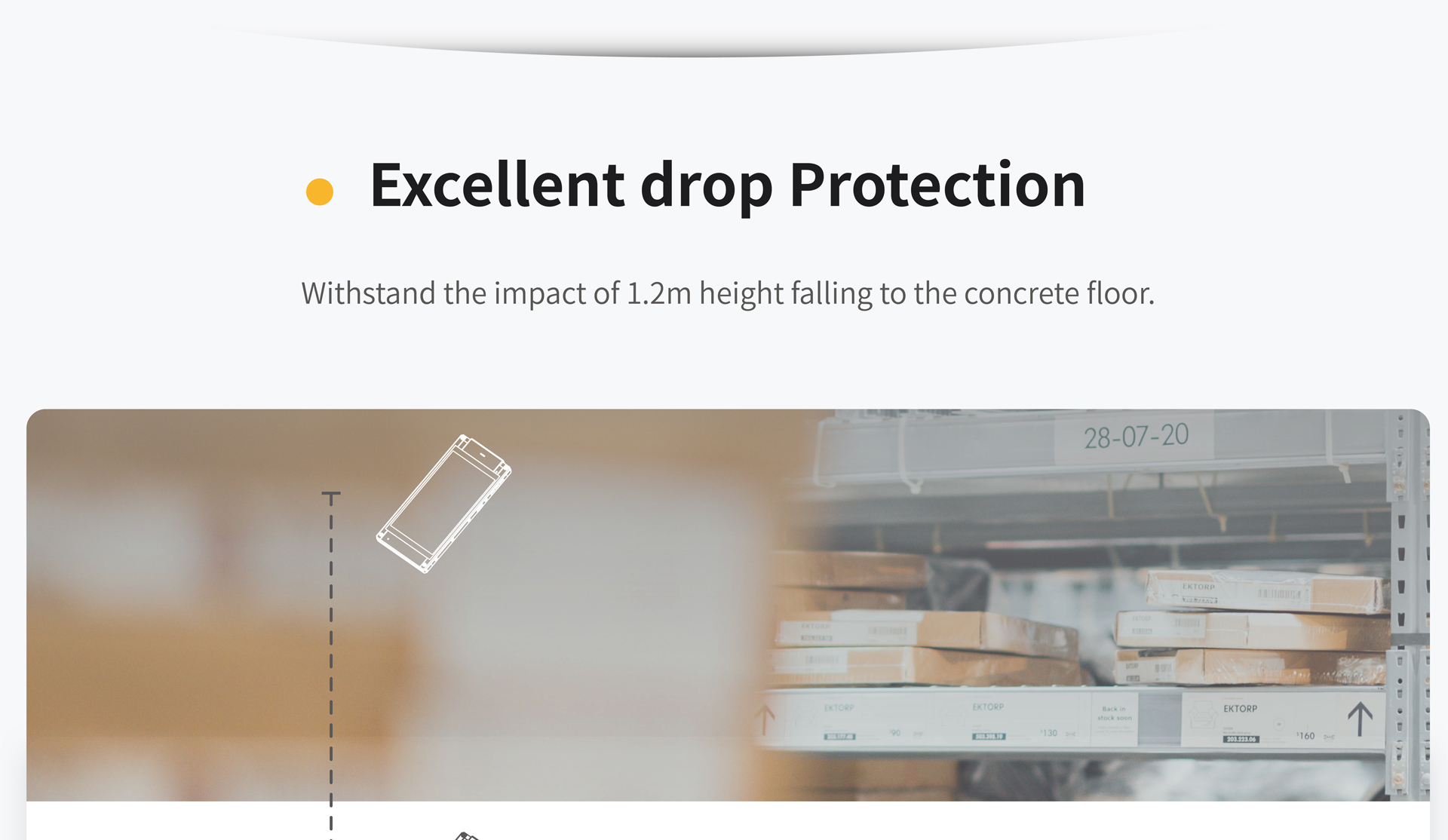

1.2 m / 3.94ft

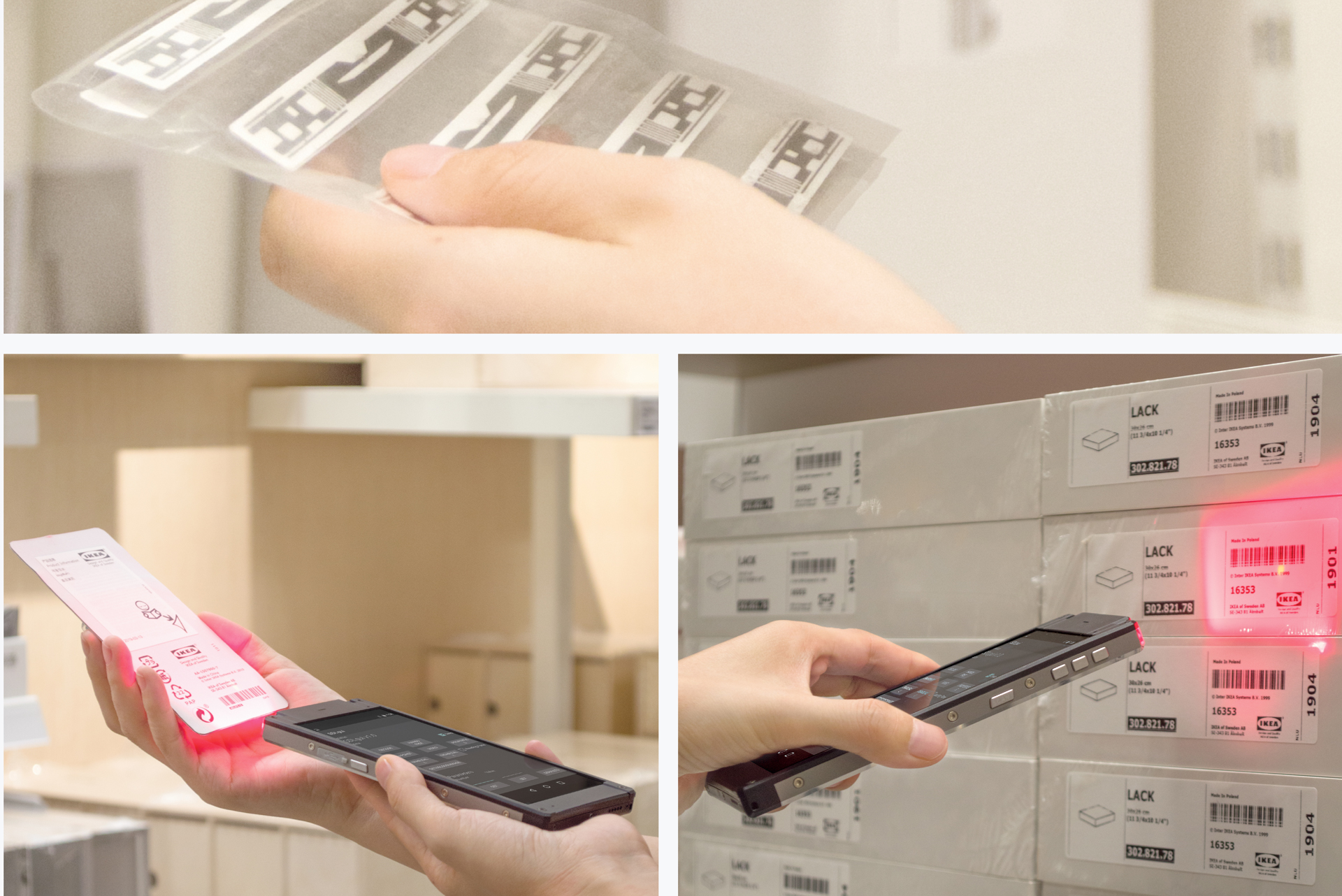

Data Collections

BarcodeOptional

Engine

1D Barcode



2D Barcode


UHF RFID

Protocol

Frequency

Output Power

Peak Inventory Speed

UHF Antenna

Read Distance

Supported Regions




Zebra SE4710, NLS N1

UPC/EA Symbol SE955N/Code128/Code39/Code93/Code11/

Interleaved 2 of 5/Discrete 2 of 5/Chinese 2 of 5/Codabar/

MSI/RSS.etc.

Date matrix / QR Code / US Planet / UK Postal, etc.



EPC Global UHF Class 1 Gen 2/ ISO 18000-6C

902~928MHz, 865~868MHzOptional

18~26dbm

>50pcs/s

1.5 dBi circularly polarized antenna

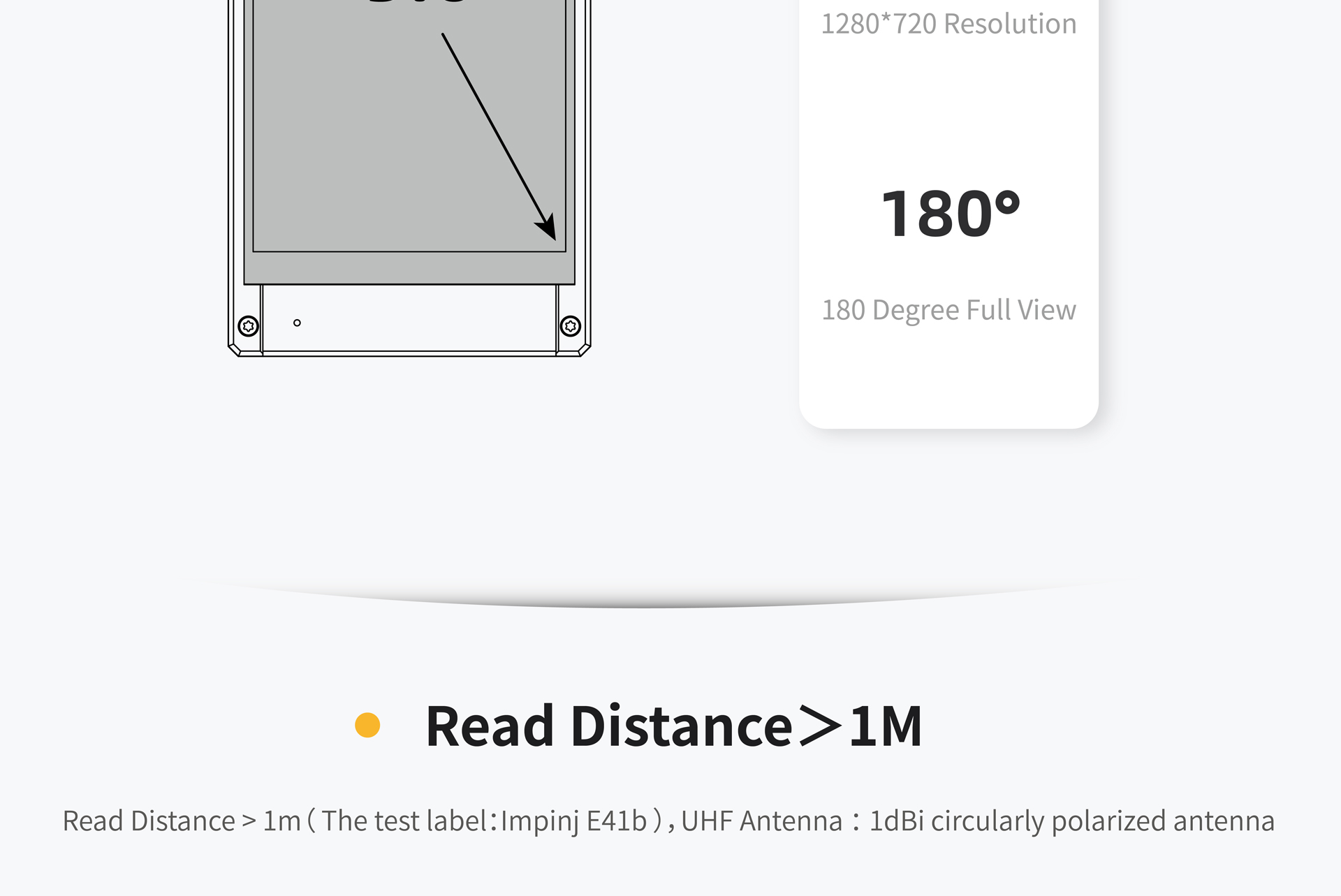

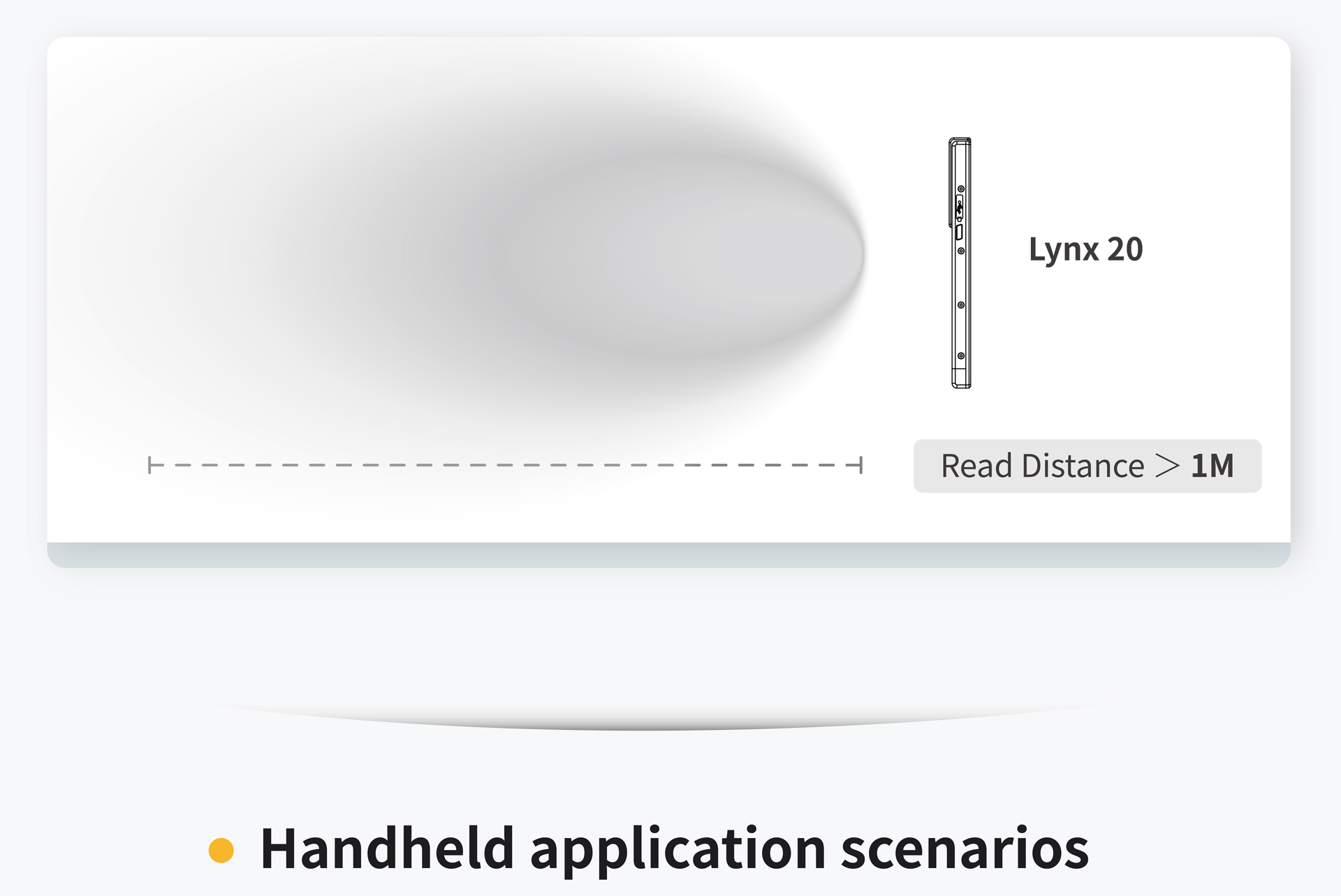

>1.0m

China, Korea, Malaysia, Japan

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208

Graphic Collection

CameraOptional

13 megapixels/ automatic focus/ flashlight

Global positioning system

GPS+GLONASS

Accessories

Battery(Can be purchased additionally),Charger & Data cable,Hanging Lace

Desktop Charger(Can charge two batteries at the same time)Optional
