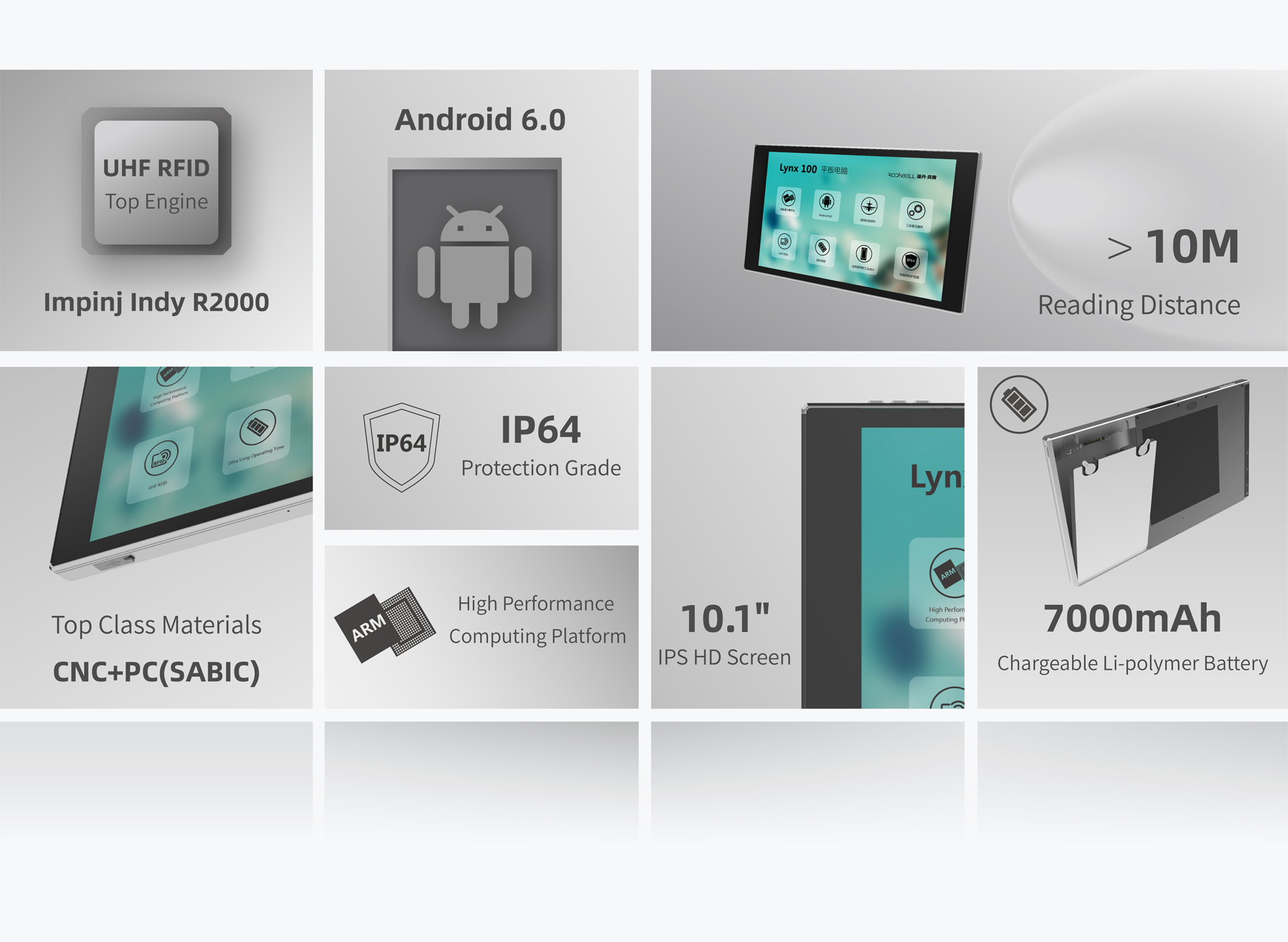

Lynx 100
Handheld Data Terminal
Wide horizon, powerful RFID engine embedded.
Product
  • Inventory management
  • Power patrol inspection
  • Personnel management
  • Livestock management
  • Accessories tracking
  • Clothing retail management

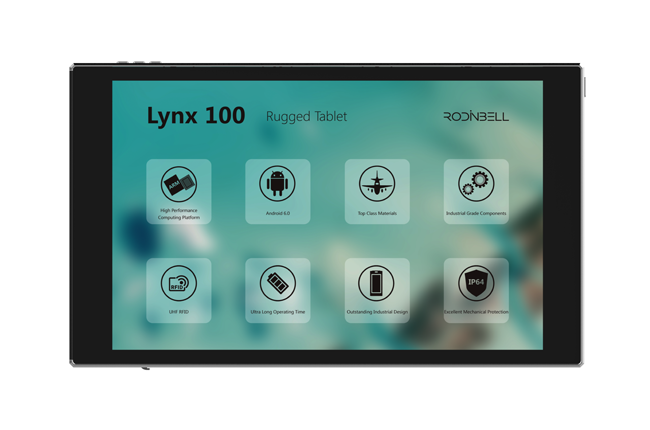

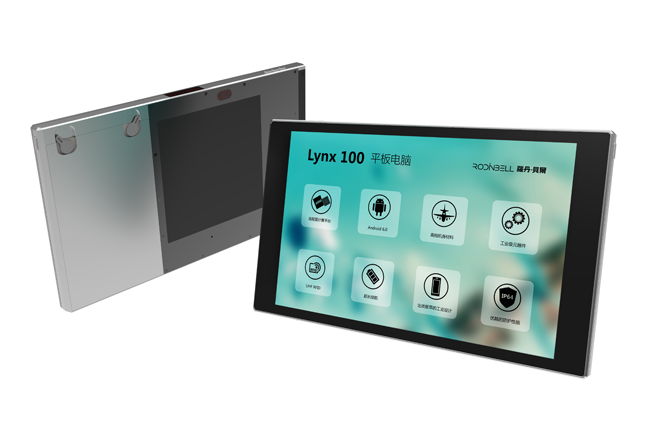

Lynx 100 Handheld Data Terminal
DetailsParameterSelectionConsulting
  • Tel:0755-28225530
  • Email:info@rodinbell.com
  • Fax:+86 755 89373021
  • Post:518129
  • Address: Room 905#, Tower B, Xinghe WORLD, Wuhe Avenue, Longgang District, Shenzhen, PRC
Become a partner or an agent?Enter

Mechanical Parameters

Material

Dimensions

Weight

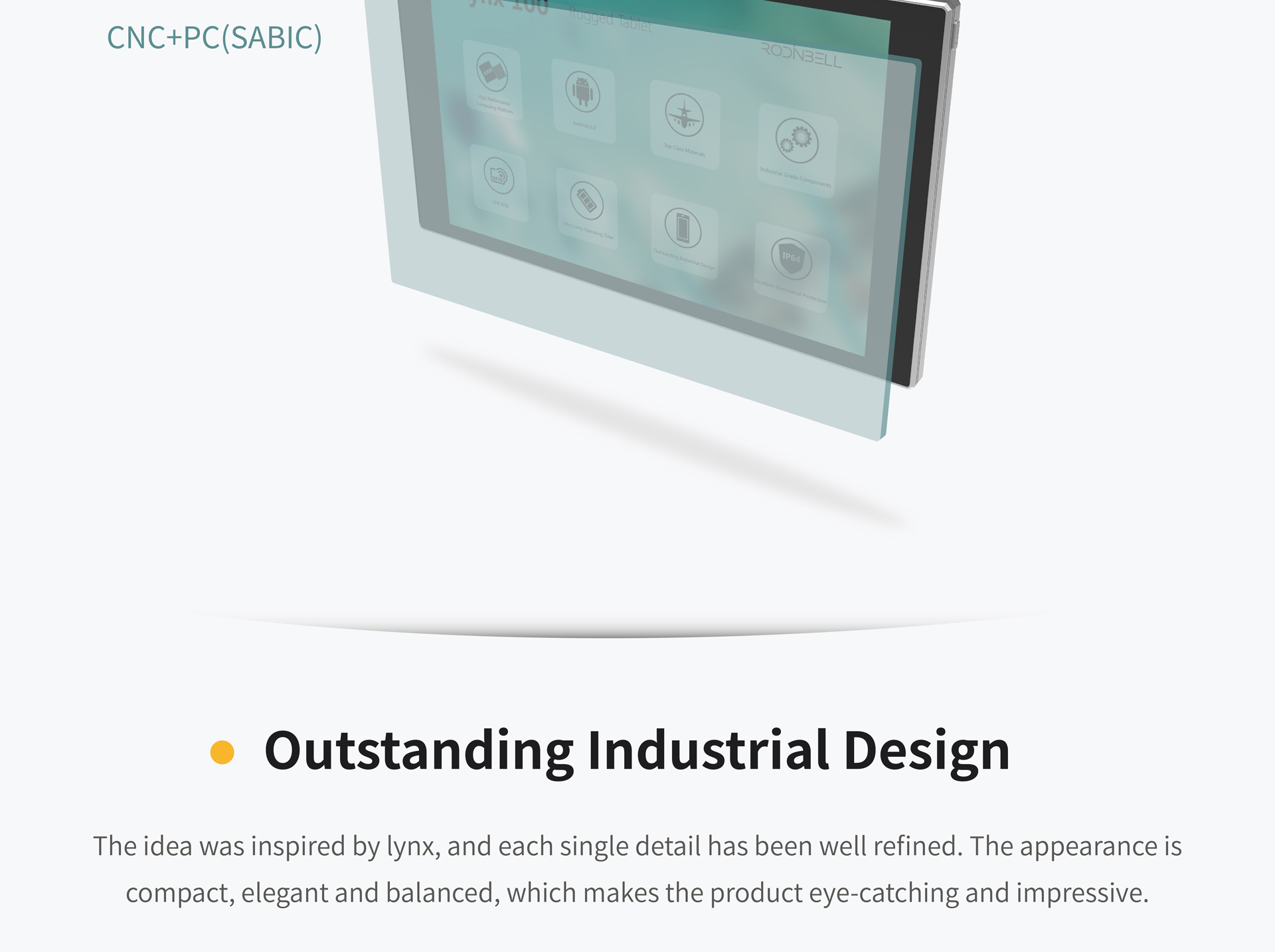

CNC Aluminum+PC(SABIC)

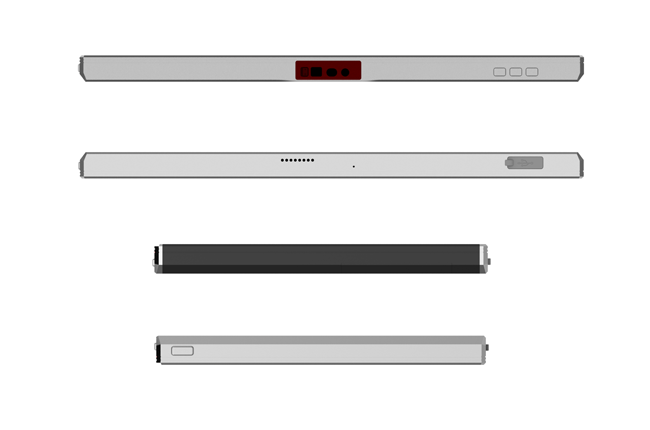

Appearance    257*152*13.3mm

825g(Including battery/standard)

System Characteristics

Operating System

CPU

GPU

RAM+ROM

LCD

Touch Screen

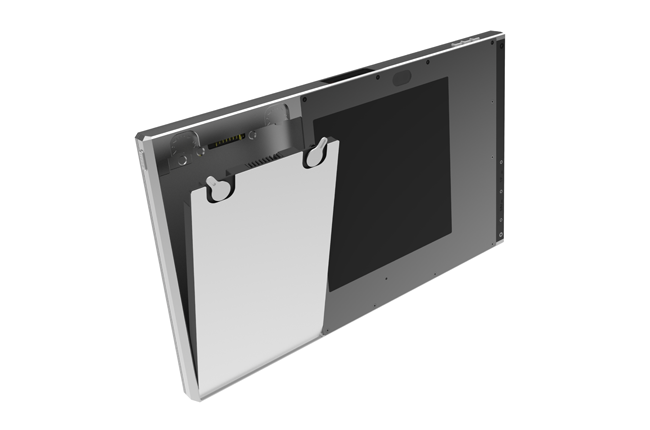

Hotswapping Battery

Buttons


Power

Card Slots

USB Interfaces

Speaker

Vibration

Charge Indicator

Android 6.0

Quad-core Cortex-A17 / 1.8 GHz

ARM Mali-T764/High performance 3D engine

2G+32G,4G+64GOptional

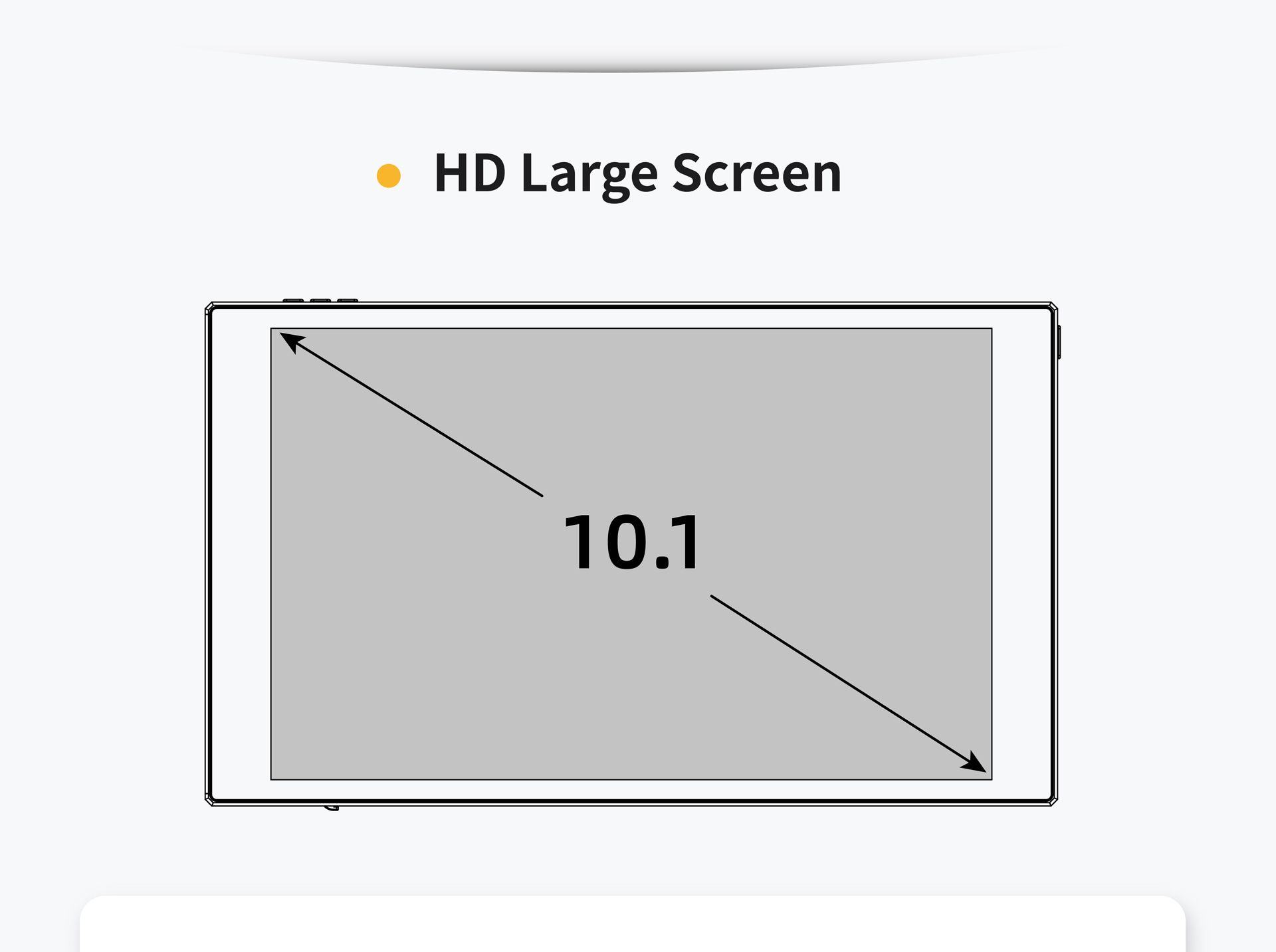

10.1inches/ 1920*1200/IPS/180°view angle

0.7mmmm thickness tempered glass/5- dot touch / operable with gloves

Detachable Li-ion battery with mechanical button

Power / Volume:3 ALPS buttons/ Operating force 2.2N / Operating life 1 million cycles

Scan Trigger:1 ALPS buttons/ Operating force 1.6N / Operating life 5 million cycles

7000mAh chargeable Ii-polymer battery

Micro SIM card slot*1/TF card slot*1

Micro USB/MOLEX connector /Operating life 10,000 cycles

Supported

Supported

Bicolor LED

Wireless Communications

WIFI

Bluetooth

4G

IEEE802.11b / g / n

Bluetooth 4.0

SupportedOptional

Application Environment

Operating Temp

Storage Temp

Humidity

Protection Grade

Safety Drop Height

-20℃~+60℃

-30℃~+70℃

5%RH~95%RH(non -condensing)

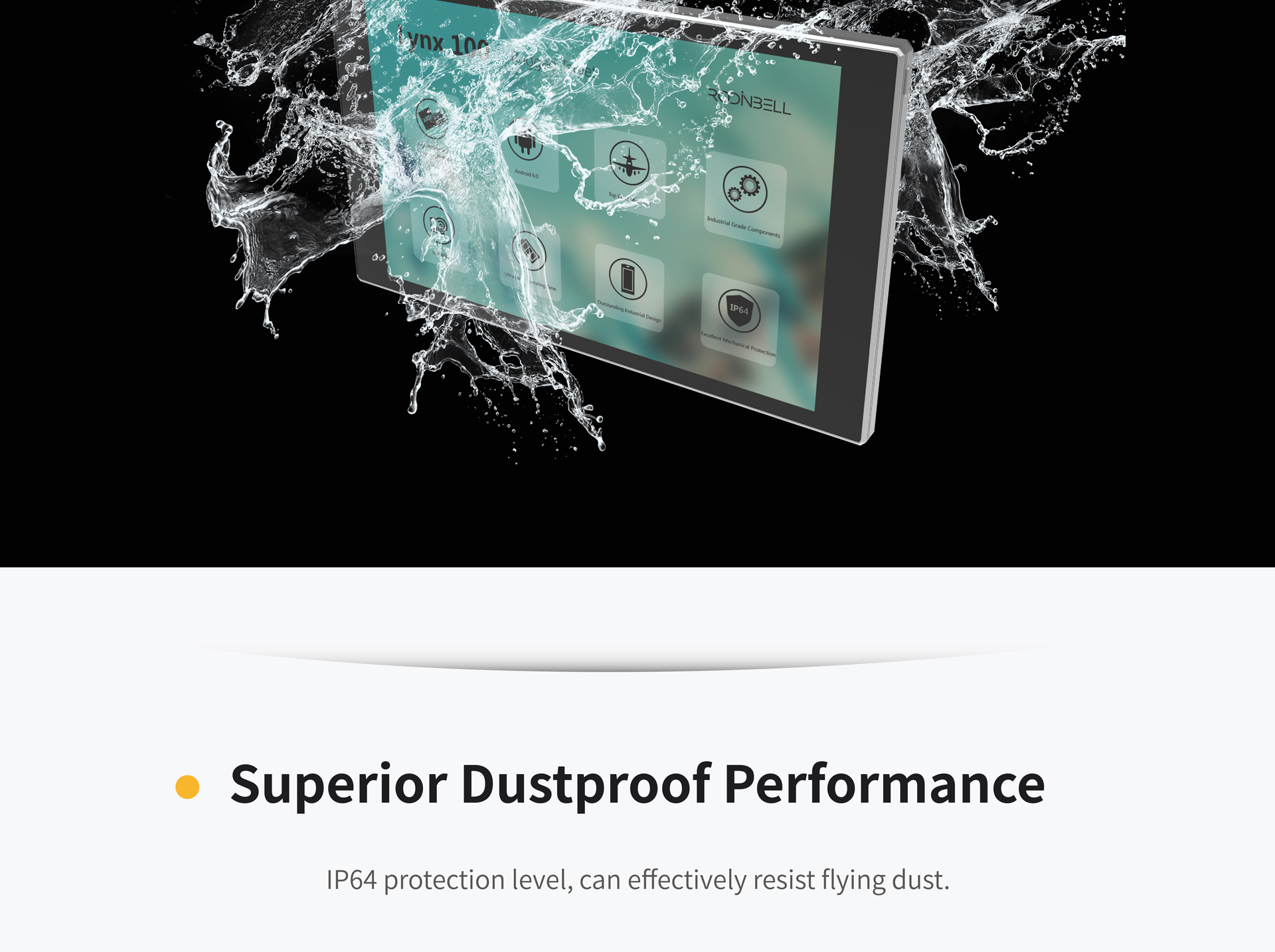

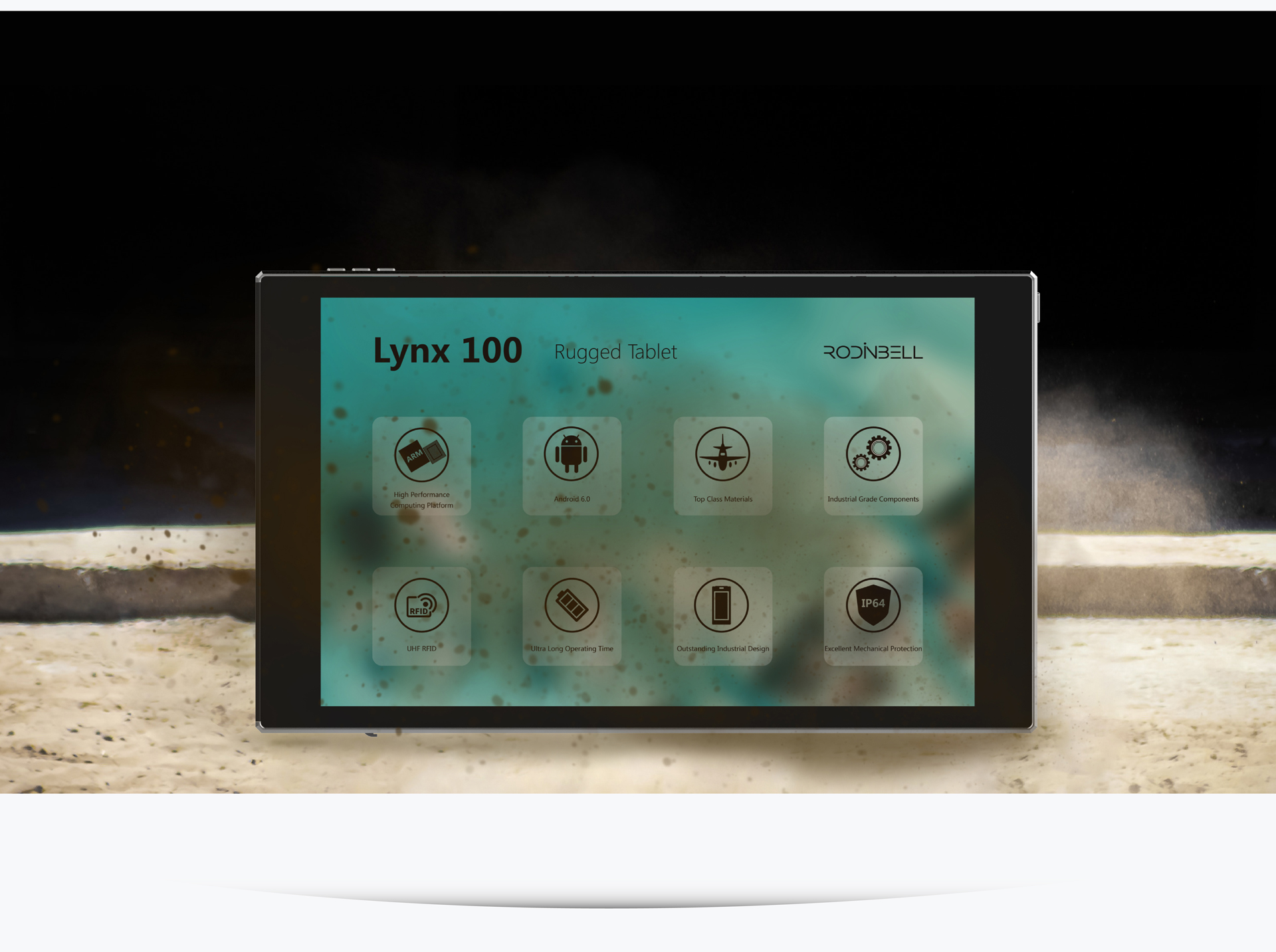

IP64

1.2 m / 3.94ft

Data Collections

BarcodeOptional

Engine

1D Barcode



2D Barcode

UHF RFID

Engine

Protocol

Frequency

Output Power

Peak Inventory Speed

UHF Antenna

Read Distance

Supported Regions




Zebra SE4710

UPC/EA Symbol SE955N/Code128/Code39/Code93/Code11/

Interleaved 2 of 5/Discrete 2 of 5/Chinese 2 of 5/Codabar/

MSI/RSS.etc.

Date matrix / QR Code / US Planet / UK Postal, etc.


RodinBell M-2600/Based on Impinj Indy R2000

EPC Global UHF Class 1 Gen 2/ ISO 18000-6C/ISO 18000-6B

902~928MHz, 865~868MHz选配

0~33dbm

>500pcs/s

4.5dBi circularly polarized antenna

>10m

China, Korea, Malaysia, Japan

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208

Graphic Collection

CameraOptional

13 megapixels/ automatic focus/ flashlight

Global positioning system

GPS+GLONASS

Accessories

Battery(Can be purchased additionally),Charger & Data cable,Hanging Lace

Desktop Charger(Can charge two batteries at the same time)Optional
