Orca 50 Air
Handheld Data Terminal
New air medium antenna, 30% performance improved
Product

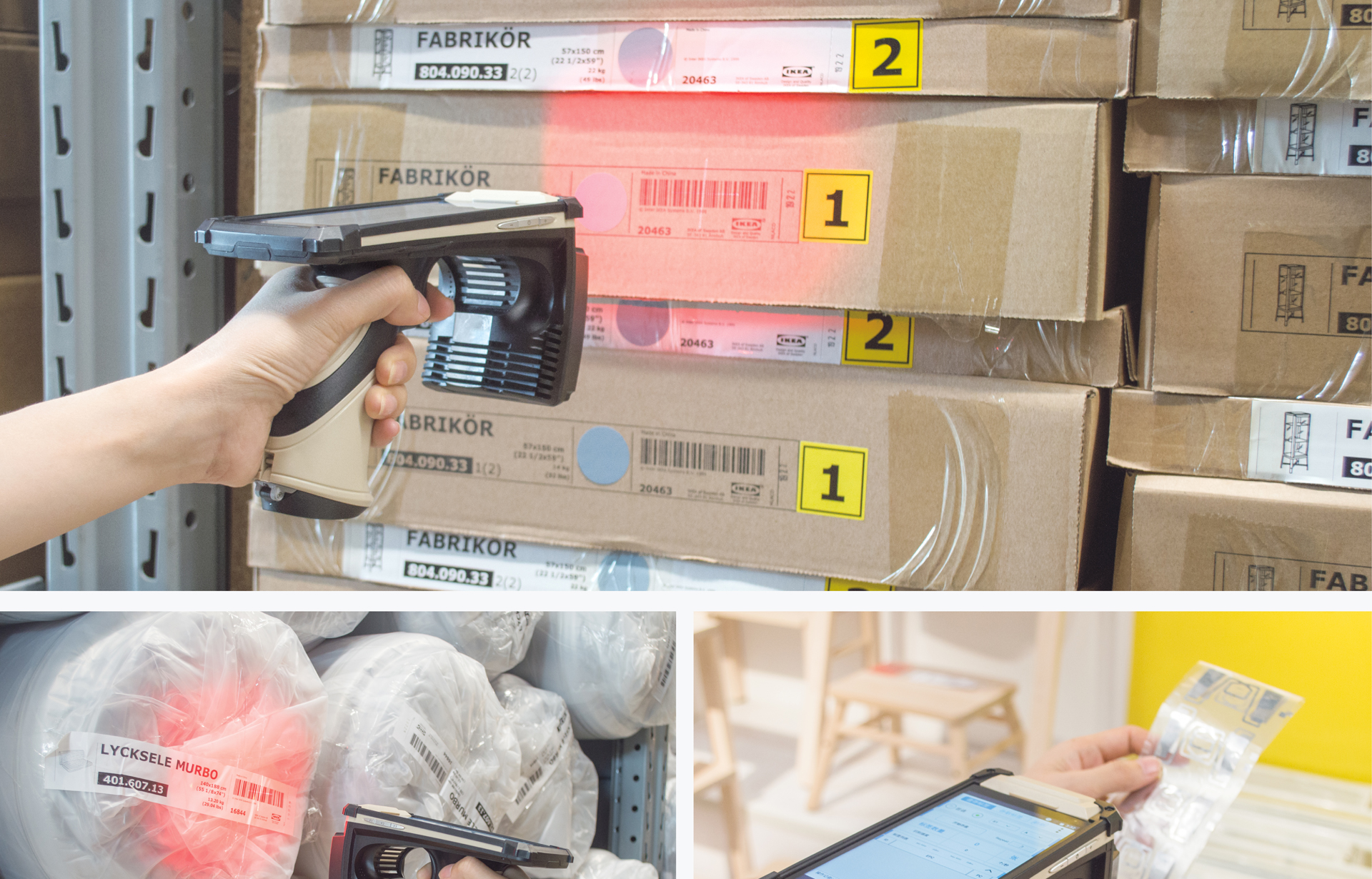

  • Inventory management
  • Power patrol inspection
  • Personnel management
  • Livestock management
  • Accessories tracking
  • Clothing retail management

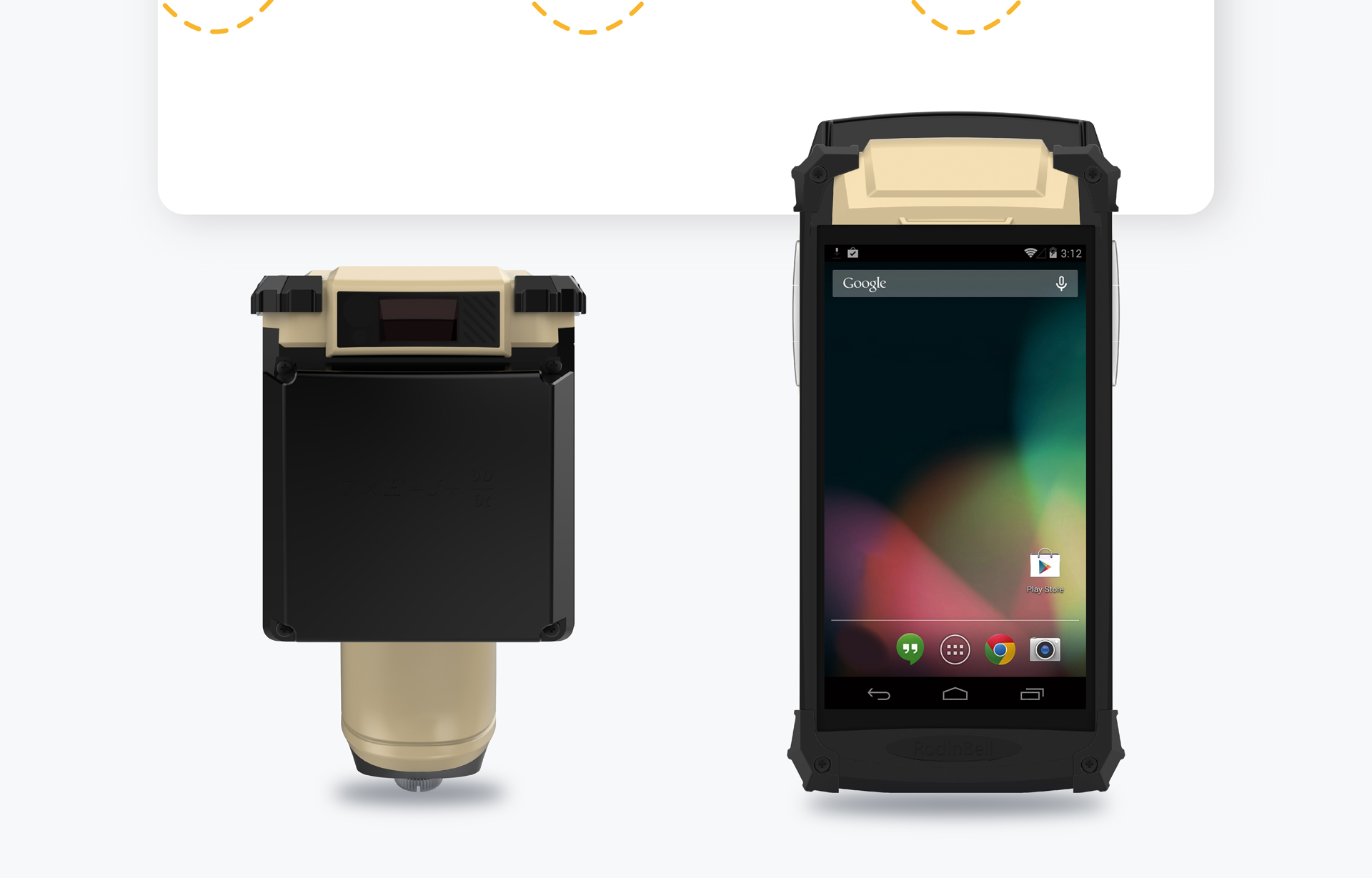

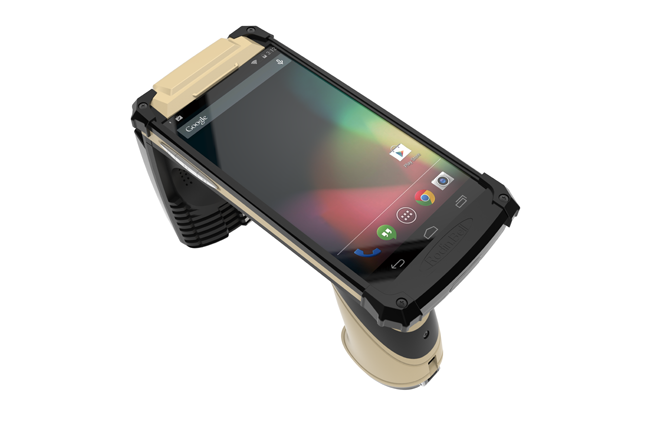

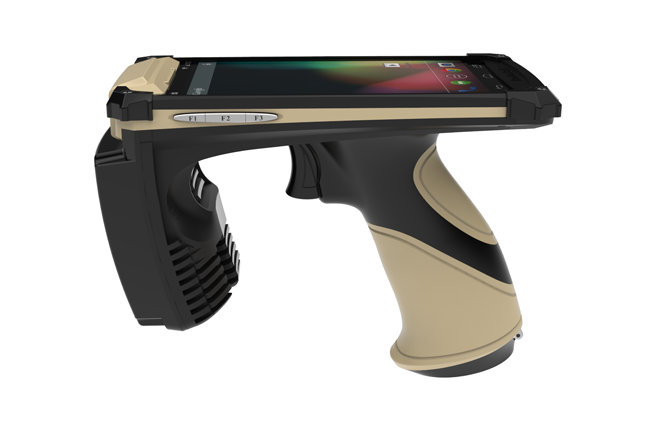

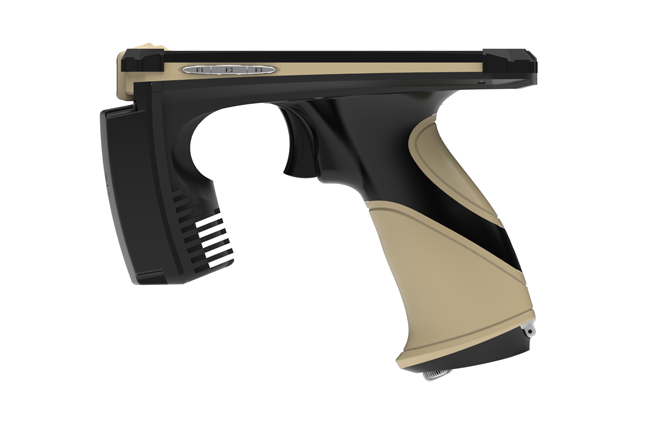

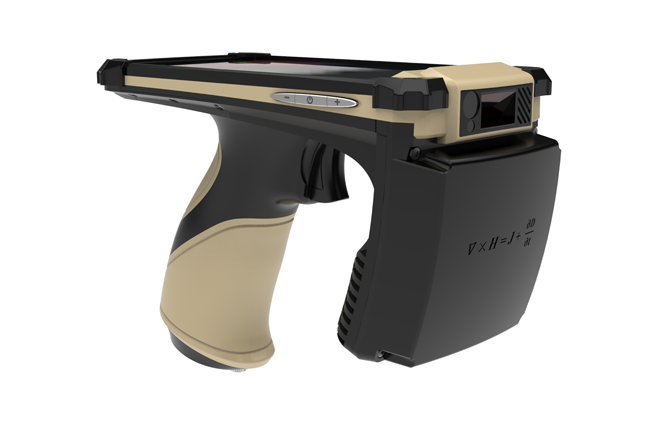

Orca 50 Air Handheld Data Terminal
DetailsParameterSelectionConsulting
  • Tel:0755-28225530
  • Email:info@rodinbell.com
  • Fax:+86 755 89373021
  • Post:518129
  • Address: 905#, Tower B, Xinghe WORLD, Wuhe Avenue, Longgang District, Shenzhen City, PRC
Become a partner or an agent?Enter


Mechanical parameters

Materials

Dimensions


Weight

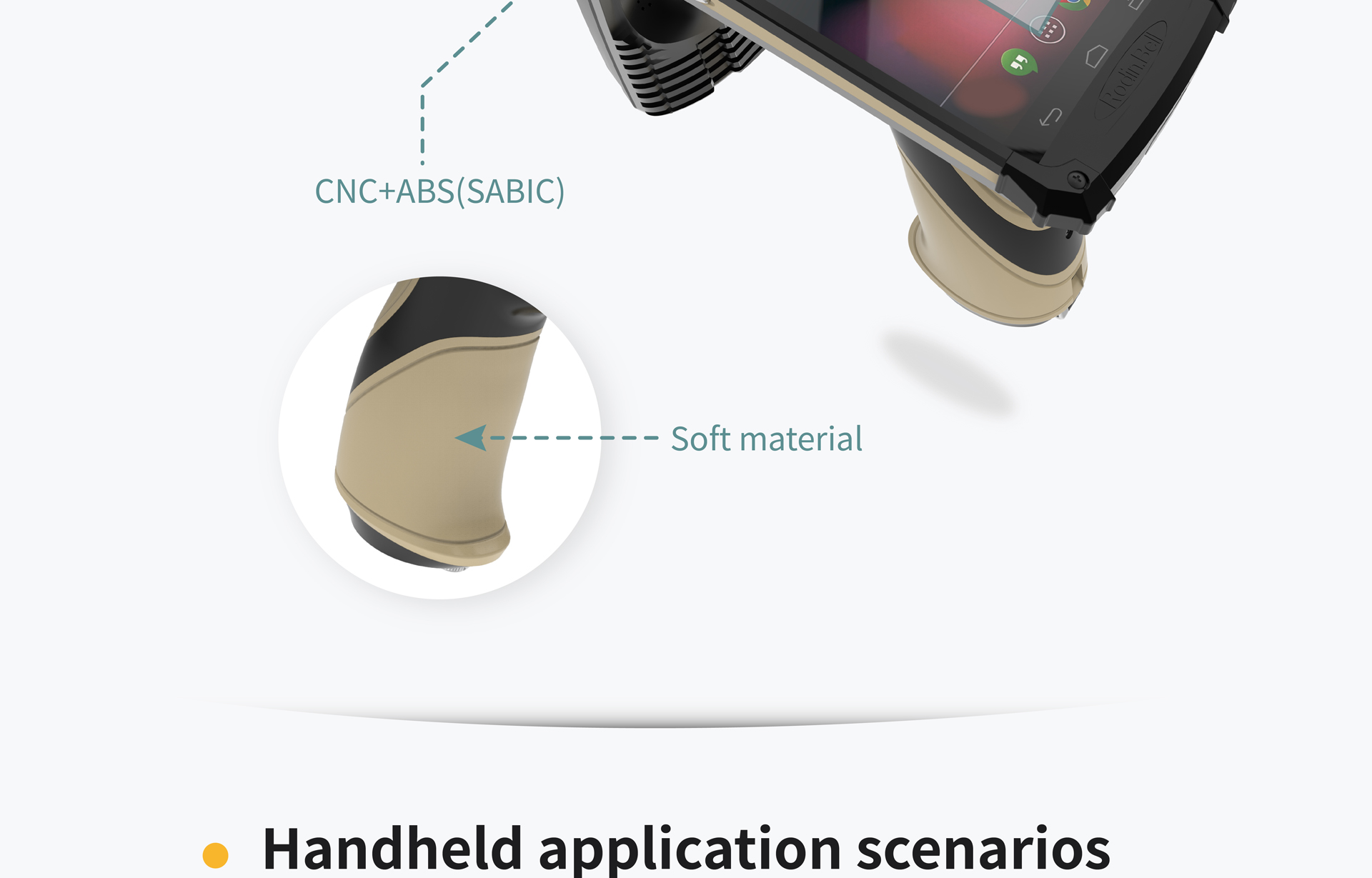

Aviation Aluminum,PC+ABS

167*82*129mm

Grip     111*38*47mm

580g(battery included/standard version)

System Characteristics

Operating System

CPU

GPU

RAM+ROM

LCD

Touch Screen


Hotswapping Battery

Buttons




Power

Card Slots

USB Interface

Audio

Vibration

Charge Indicator

Android 6.0

Quad-core Cortex-A17/ 1.8GHz

ARM Mali-T764/ High performance 3D engine

2G+32G,4G+64GOptional

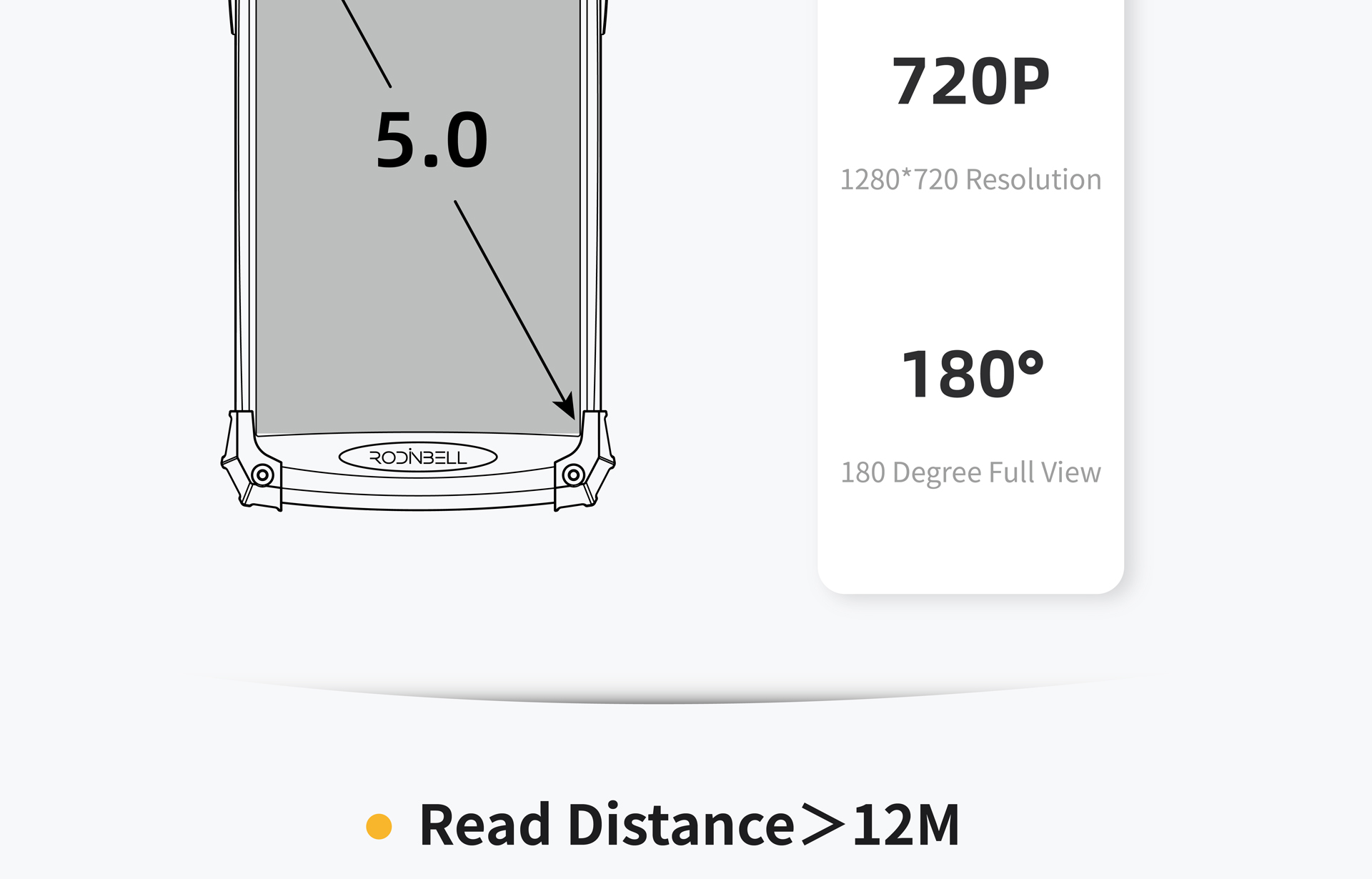

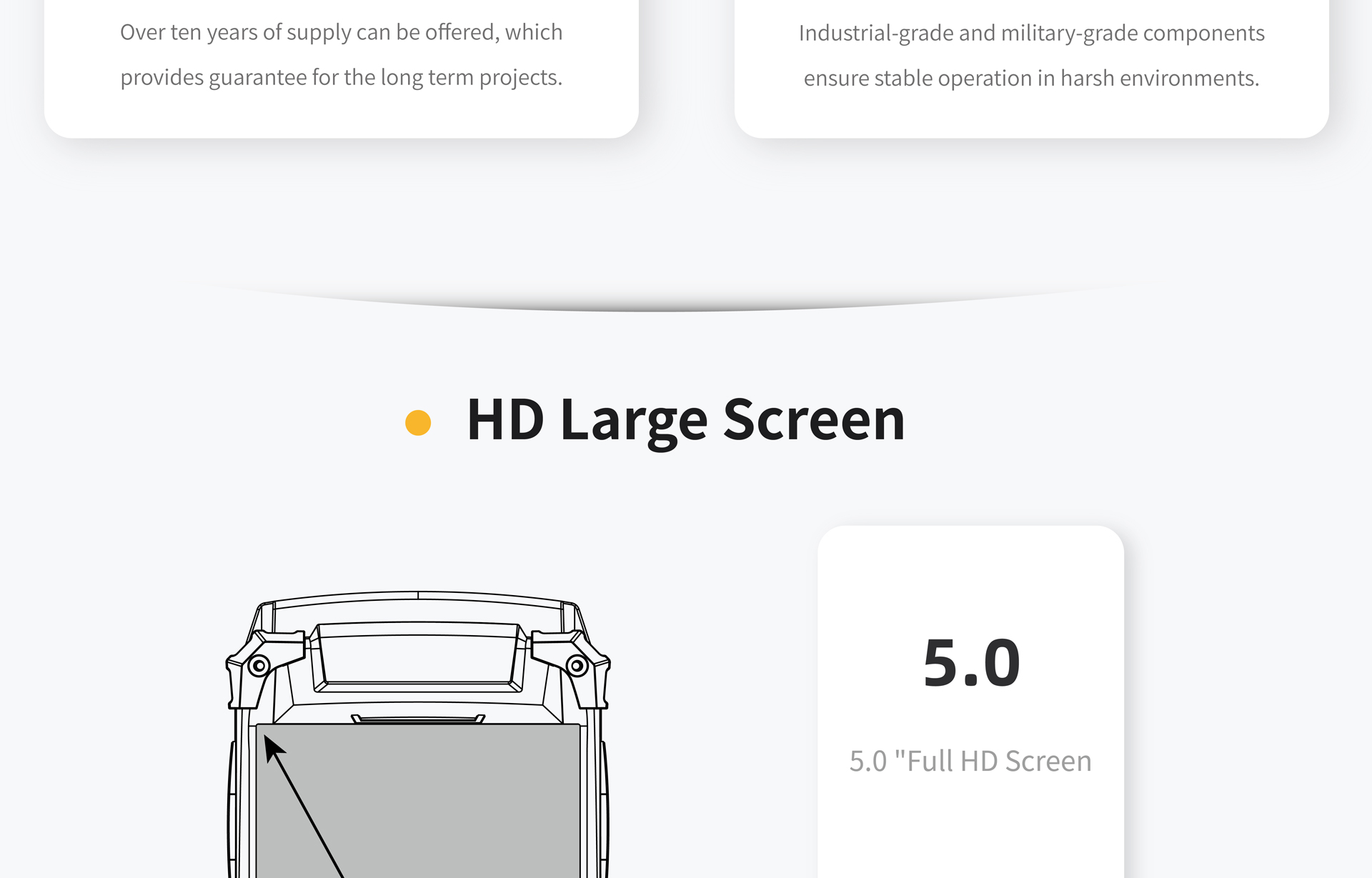

5.0 inches/ 1280*720/IPS/180° view angle

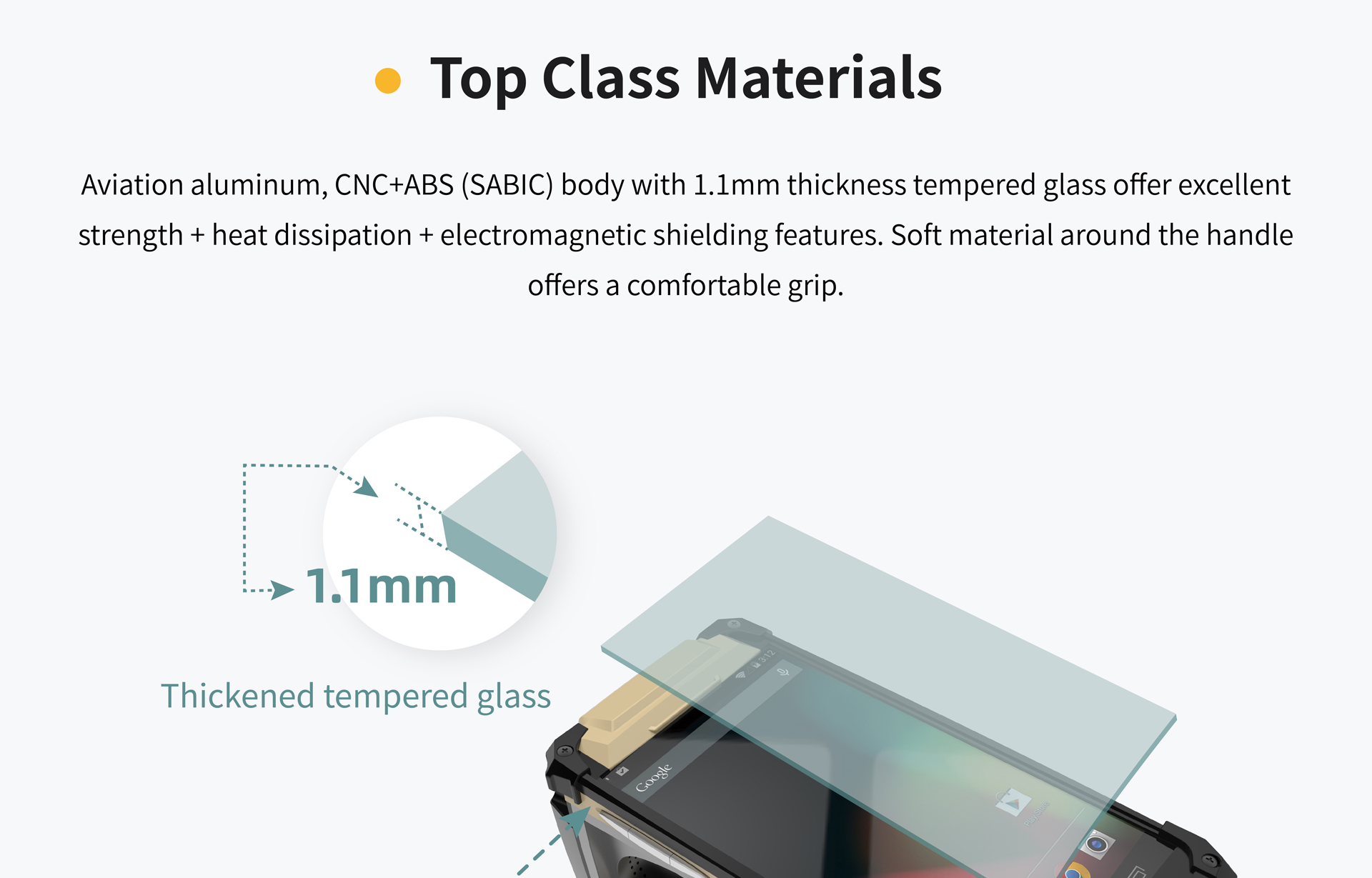

1.1mm thickness tempered glass/10- dot touch/

operable with gloves

Pistol style hotswapping battery system

Power / Volume:3 ALPS buttons/ Operating force 2.5N /

Operating life 1 million cycles

Scan Trigger:OMRON button/Operating force 1.27N/

Operating life 10 million cycles

6000mAh chargeable Ii-polymer battery

Micro SIM card slot*1 / TF card slot*1

Micro USB/MOLEX connector /Operating life 10,000 cycles

Supported

10mm /Button style

Bicolor LED

Wireless Communications

WIFI

Bluetooth 4.0

4G

IEEE802.11b / g / n

Bluetooth 4.0

SupportedOptional

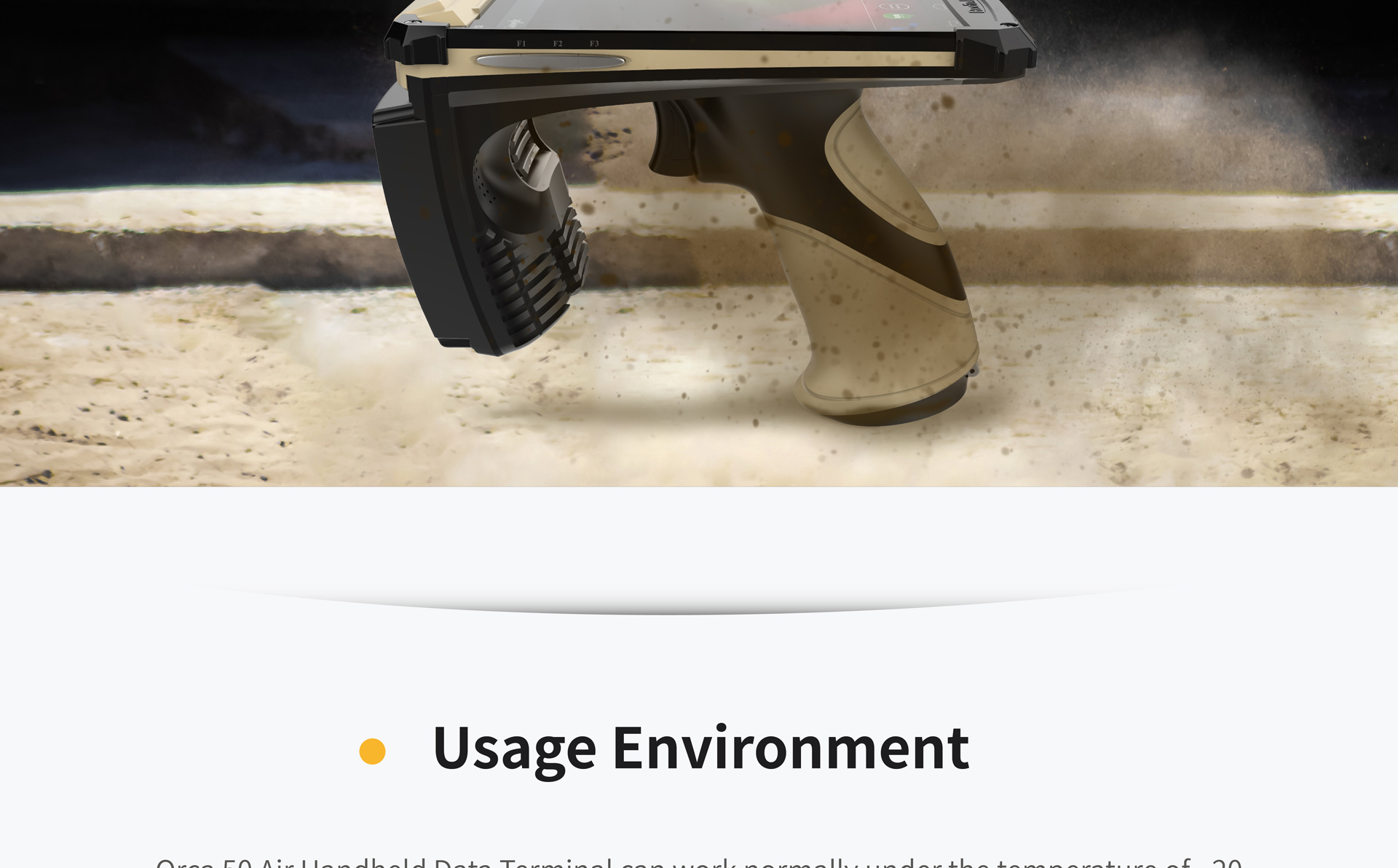

Application Environment

Operating Temp

Storage Temp

Humidity

Protection Grade

Safety Drop Height

-20℃~+60℃

-30℃~+70℃

5%RH~95%RH(non -condensing)

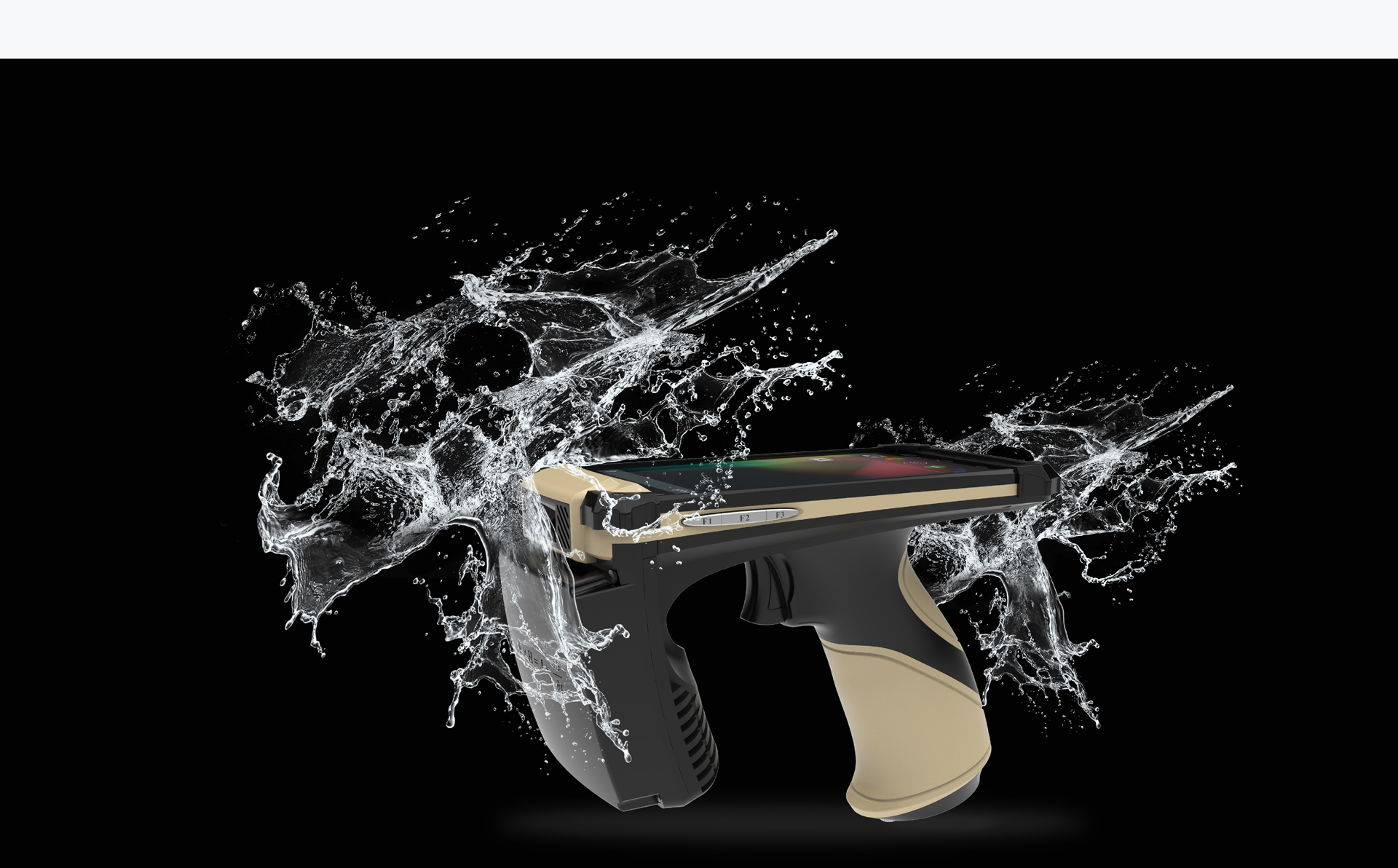

IP64

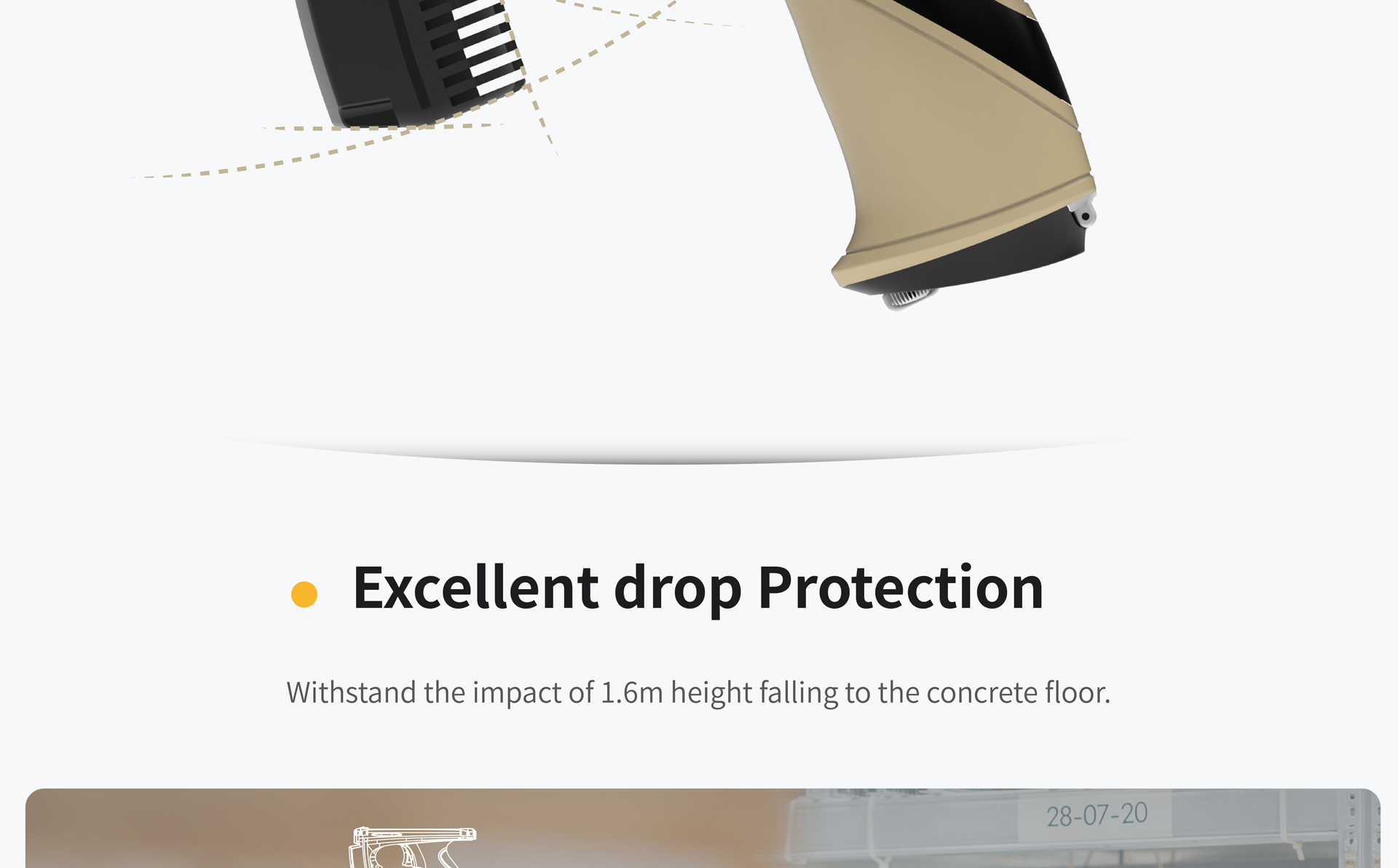

1.6 m / 5.25ft

Data Collections

1D BarcodeOptional

Engine

Support




2D BarcodeOptional

Engine

Support


UHF RFID

Engine

Protocol

Frequency

Output Power

Peak Inventory Speed

UHF Antenna

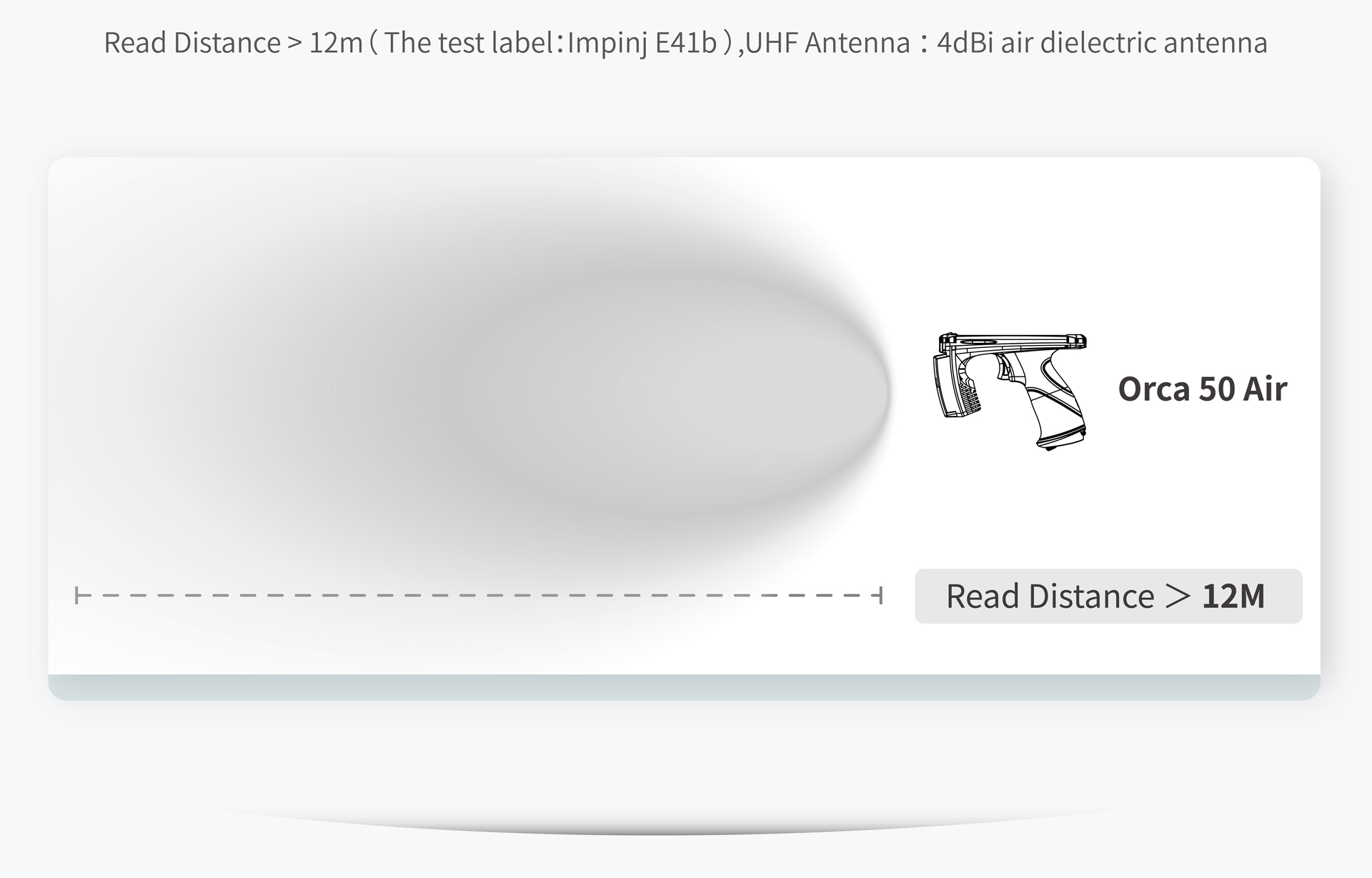

Read Distance

Supported Regions




Motorola EM1350

UPC/EA Symbol SE955N/Code128/

Code39/Code93/Code11/

Interleaved 2 of 5/Discrete 2 of 5/Chinese 2 of 5/Codabar/

MSI/RSS etc.


Zebra SE4750, NLS EM3396

Data Matrix/QR Code/Aztec Code/PDF417/US Planet/

UK Postal etc.


Rodinbell M-2600/  based on Impinj Indy R2000

EPC Global UHF Class 1 Gen 2/ ISO 18000-6C/6B

902~928MHz, 865~868MHzOptional

0~33dbm

>500pcs/s

4dBi air dielectric antenna

>10m

China, Korea, Malaysia, Japan

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208

Graphic Collections

CameraOptional

13 megapixels/ automatic focus/ flashlight

GPS

GPS+GLONASS

Accessories

Battery,Charger,USB data cable,Hanging Lace

Desktop charger(charge two batteries)Optional
